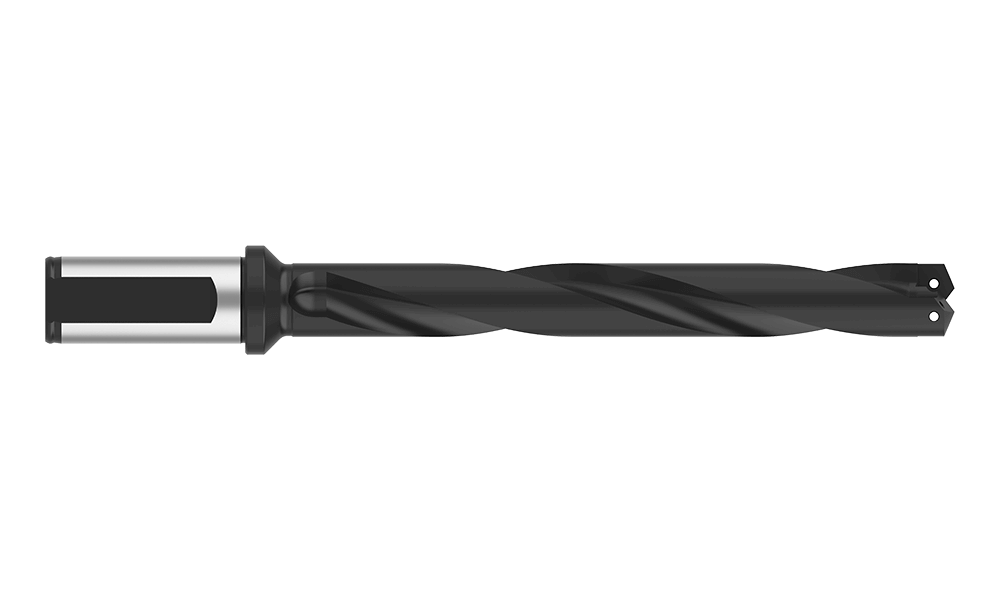

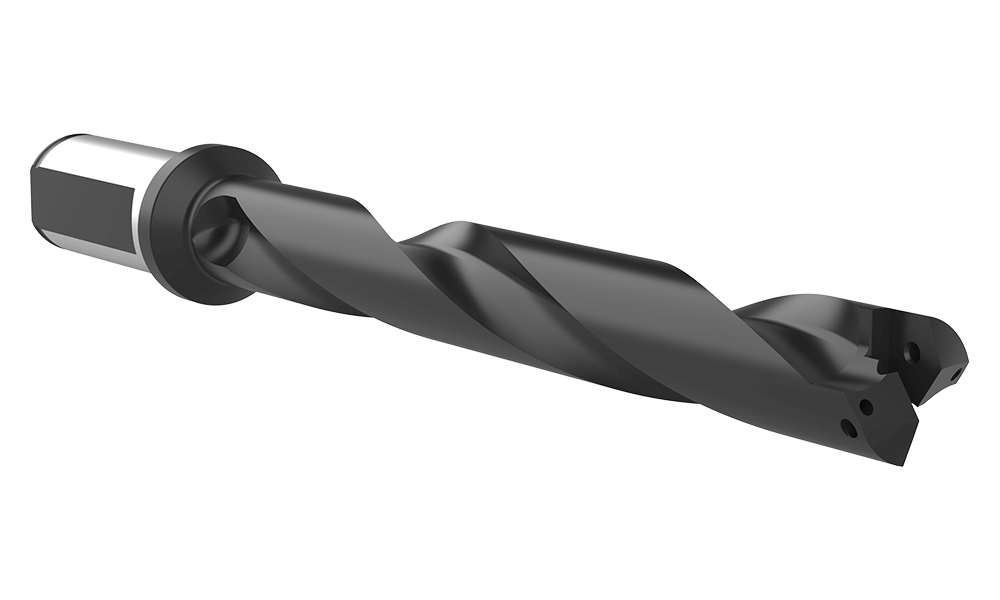

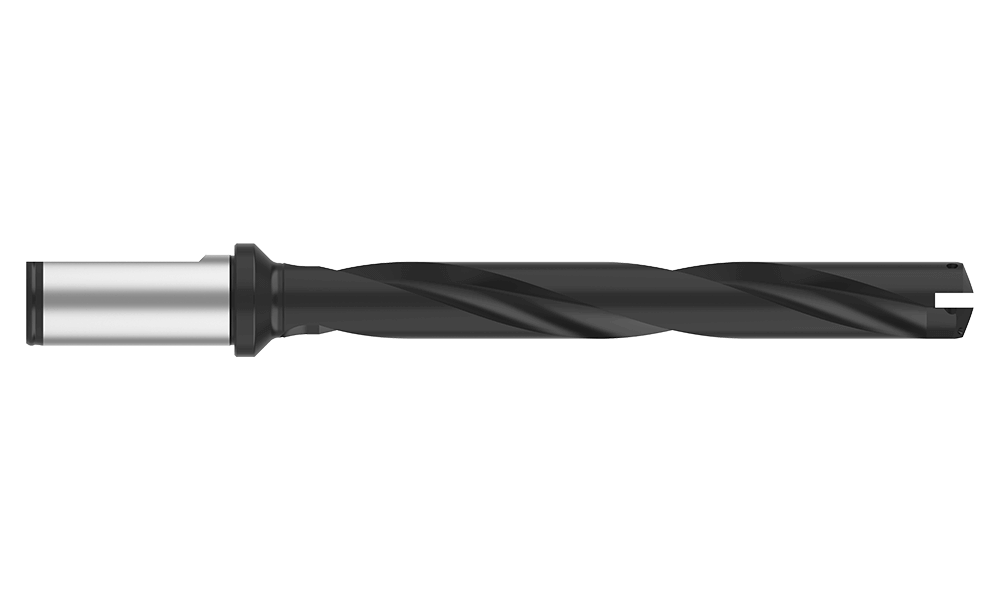

24015H-25FM
#1.5 T-A STD HLDR METR ST SHK
T-A® Holder





See Additional Technical Information

Product Specifications
Series1
Sub-Series.5
Minimum diameter mm21.83
Maximum diameter mm24.40
Length TypeStandard
Flute TypeHelical
Overall length mm261.59
Tool Reference Length mm209.14
Body length mm205.59
Drill depth mm185.19
Shank typeFlanged
Shank diameter mm25
Shank length mm56.0
Pipe tap rear inch1/8
Pipe tap rear mm1/8 BSPT
Deep Hole GuidelinesNo
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)1.4
CategoryStocked
