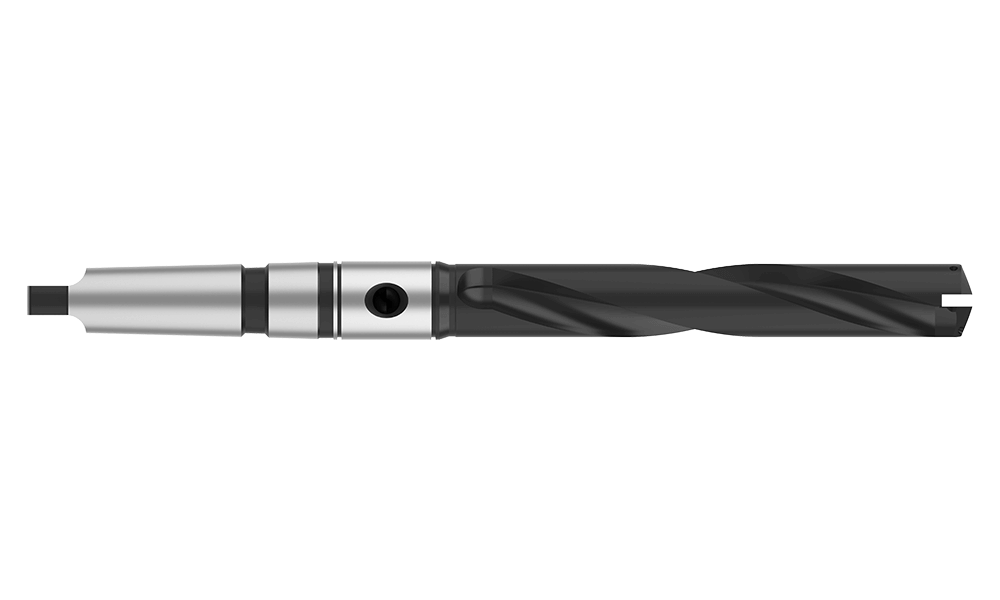

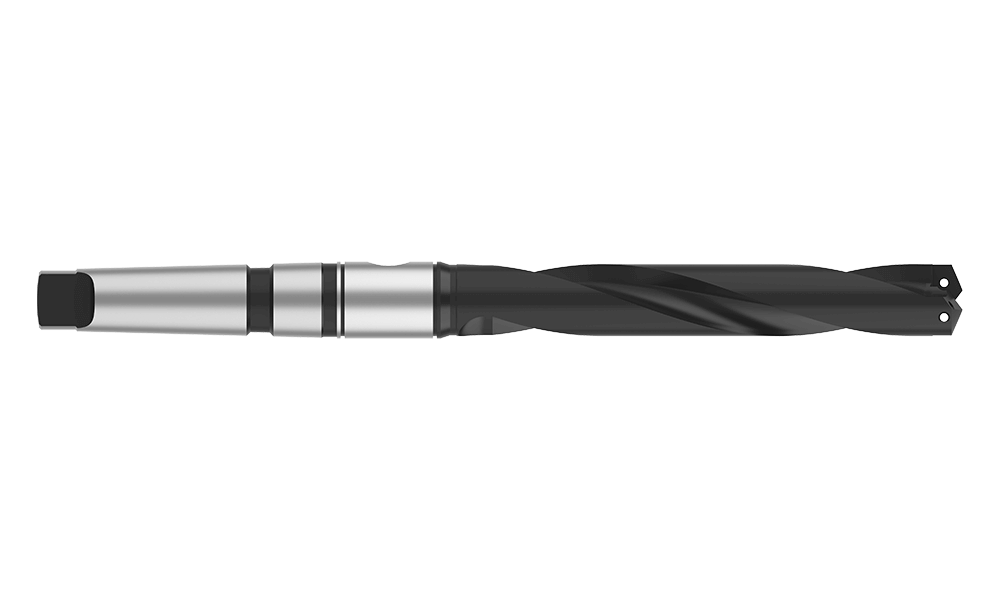

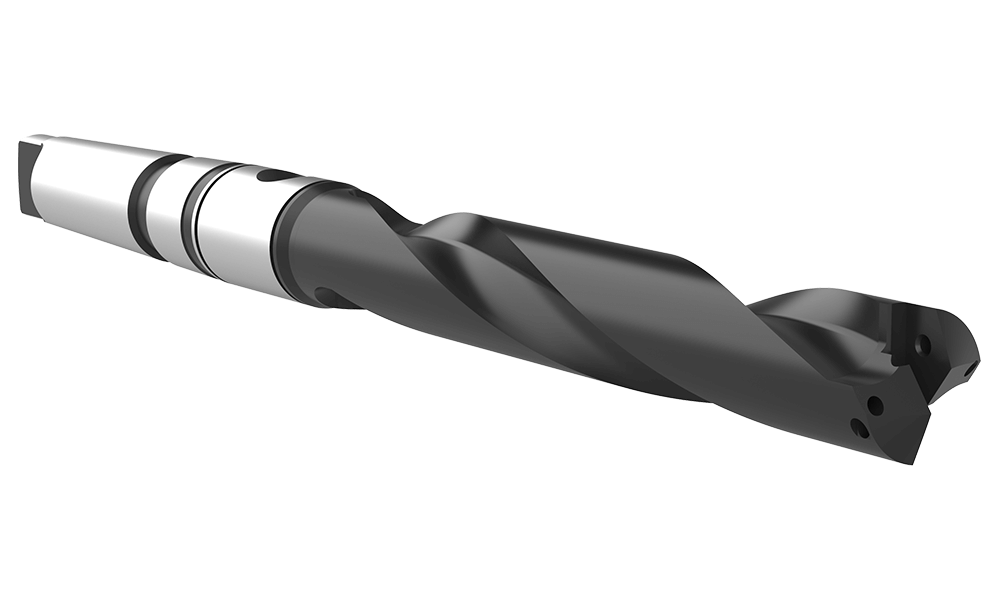

24025H-004M
#2.5 TA STD HLDR METR TAPR SHK
T-A® Holder





See Additional Technical Information

Product Specifications
Series2
Sub-Series.5
Minimum diameter mm30.16
Maximum diameter mm35.06
Length TypeStandard
Flute TypeHelical
Overall length mm382.6
Tool Reference Length mm268.7
Body length mm215.9
Drill depth mm197.6
Shank typeMorse Taper
Shank diameter mm#4 MT ISO
Pipe tap side inch1/4
Pipe tap side mm1/4 BSPT
Deep Hole GuidelinesNo
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose


Related Items
7495-IP15-1     (Qty: 0)
Replacement T-A® Screw
2-2.5 KIT (1) TORX PLUS,CL 4H
8IP-15     (Qty: 0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-15
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)3.56
CategoryStocked
