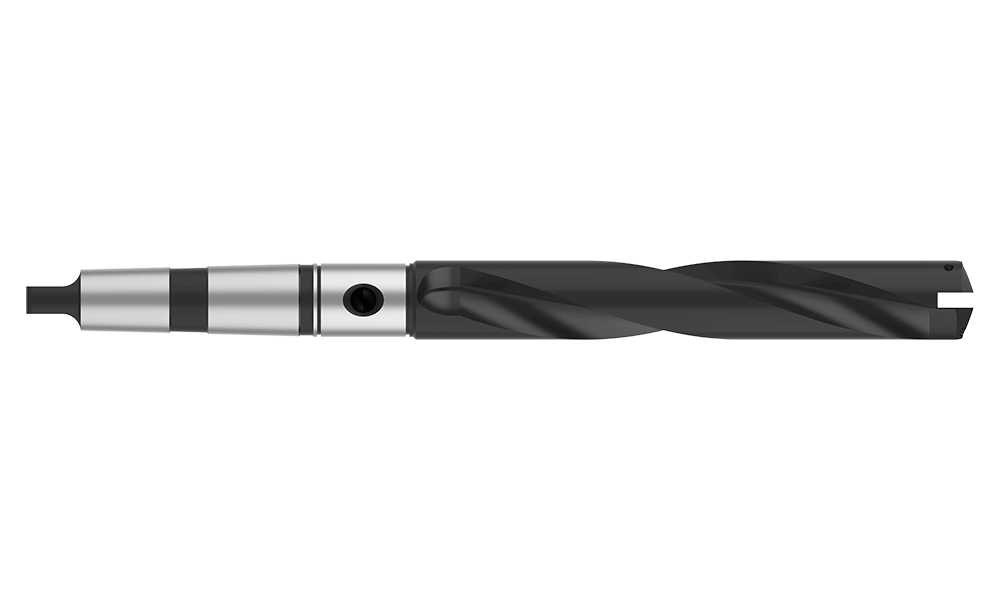

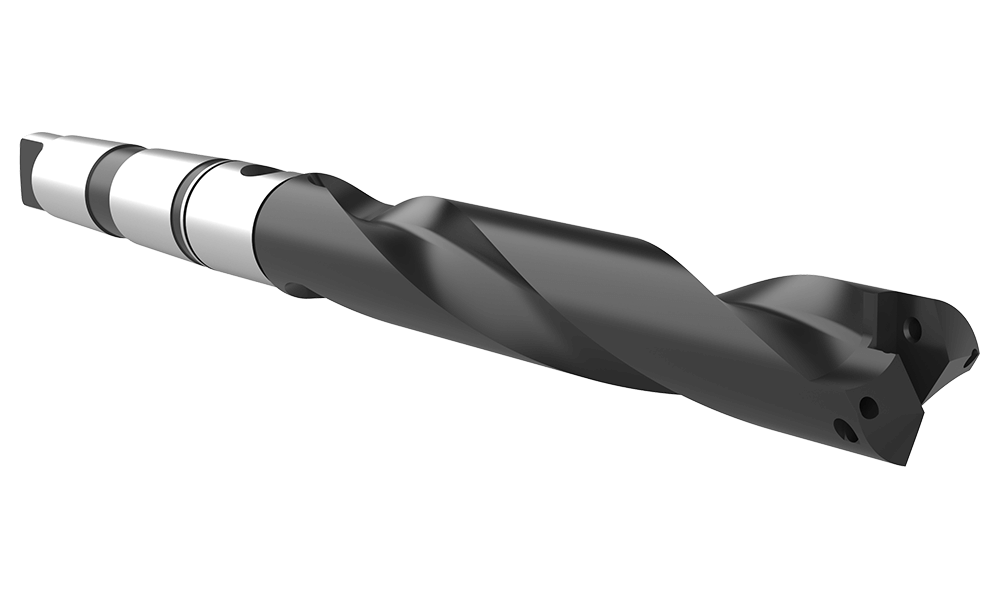

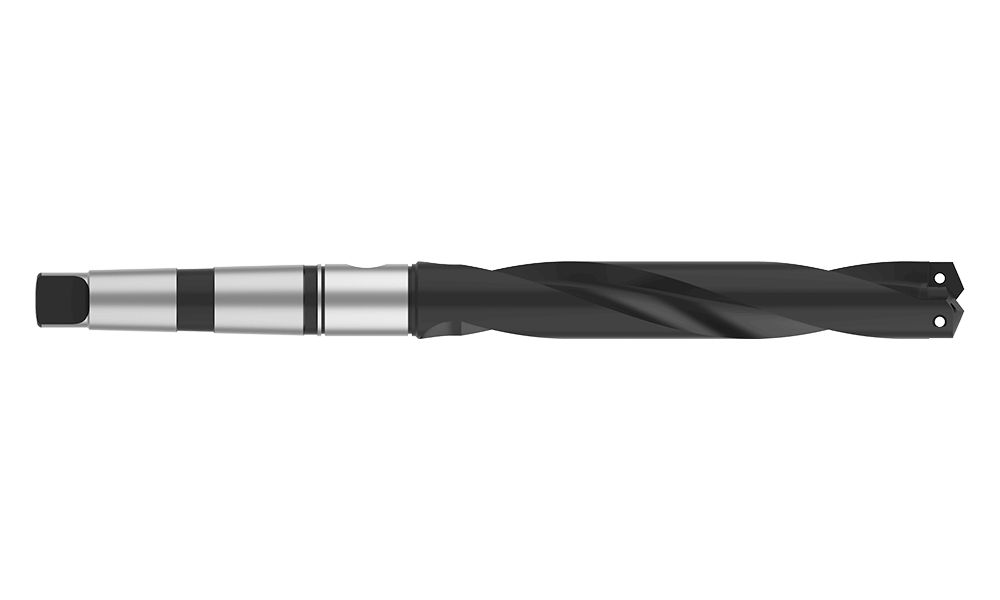

24030H-004M
#3 TA STD HLDR METR TAPR SHK
T-A® Holder





See Additional Technical Information

Product Specifications
Series3
Minimum diameter mm34.37
Maximum diameter mm47.82
Length TypeStandard
Flute TypeHelical
Overall length mm408.0
Tool Reference Length mm295.2
Body length mm241.3
Drill depth mm224.3
Shank typeMorse Taper
Shank diameter mm#4 MT ISO
Pipe tap side inch1/4
Pipe tap side mm1/4 BSPT
Deep Hole GuidelinesNo
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose


Related Items
7514-IP20-1     (Qty: 0)
Replacement T-A® Screw
3-4 KIT (1) TORX PLUS,CL 4H
8IP-20     (Qty: 0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-20
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)4.4
CategoryStocked
