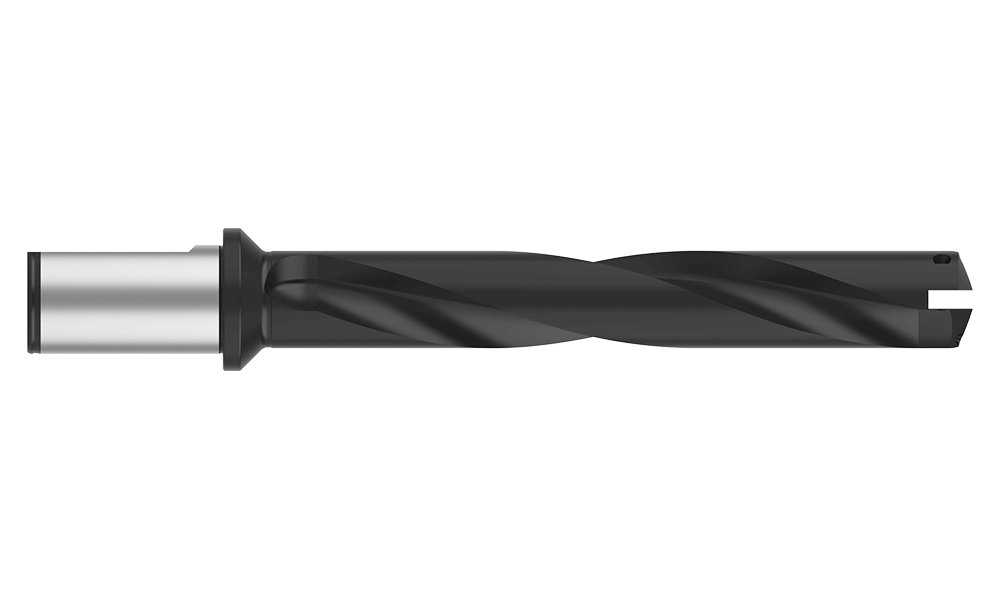

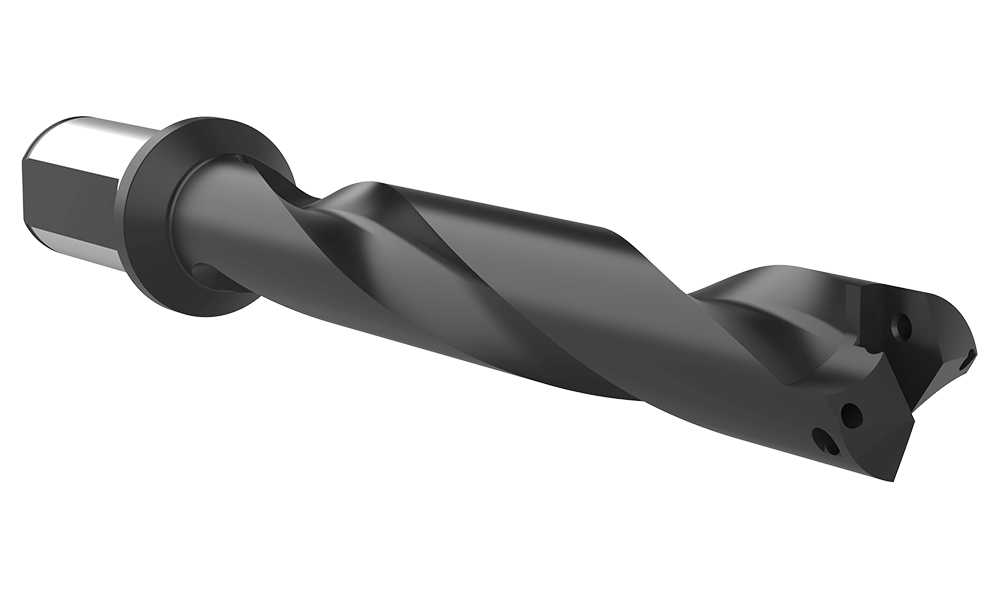

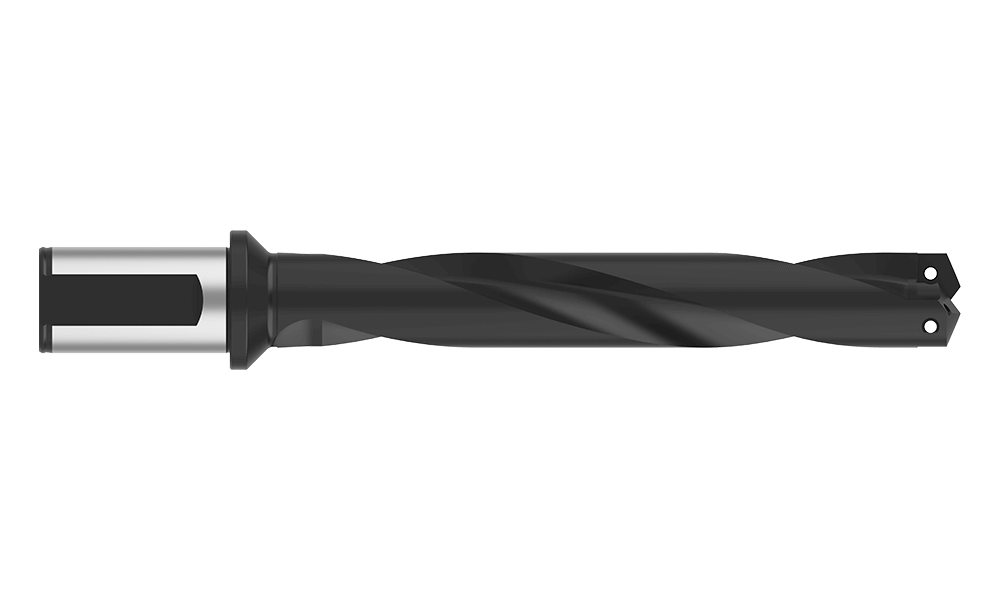

24030H-40FM
#3 TA STD HLDR METR ST SHK
T-A® Holder





See Additional Technical Information

Product Specifications
Series3
Minimum diameter mm34.37
Maximum diameter mm47.82
Length TypeStandard
Flute TypeHelical
Overall length mm332.0
Tool Reference Length mm266.7
Body length mm262.0
Drill depth mm230.2
Shank typeFlanged
Shank diameter mm40
Shank length mm70.0
Pipe tap rear inch1/4
Pipe tap rear mm1/4 BSPT
Deep Hole GuidelinesNo
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose


Related Items
7514-IP20-1     (Qty: 0)
Replacement T-A® Screw
3-4 KIT (1) TORX PLUS,CL 4H
8IP-20     (Qty: 0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-20
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)4.54
CategoryStocked
