| Series | 3 |
| Minimum diameter inch | 1.3530 |
| Maximum diameter inch | 1.8829 |
| Length Type | Standard |
| Flute Type | Straight |
| Overall length inch | 13.001 |
| Tool Reference Length inch | 10.500 |
| Body length inch | 10.313 |
| Drill depth inch | 8.012 |
| Shank type | Flanged |
| Shank diameter inch | 1-1/2 |
| Shank length inch | 2.688 |
| Pipe tap rear inch | 1/4 NPT |
| Deep Hole Guidelines | No |

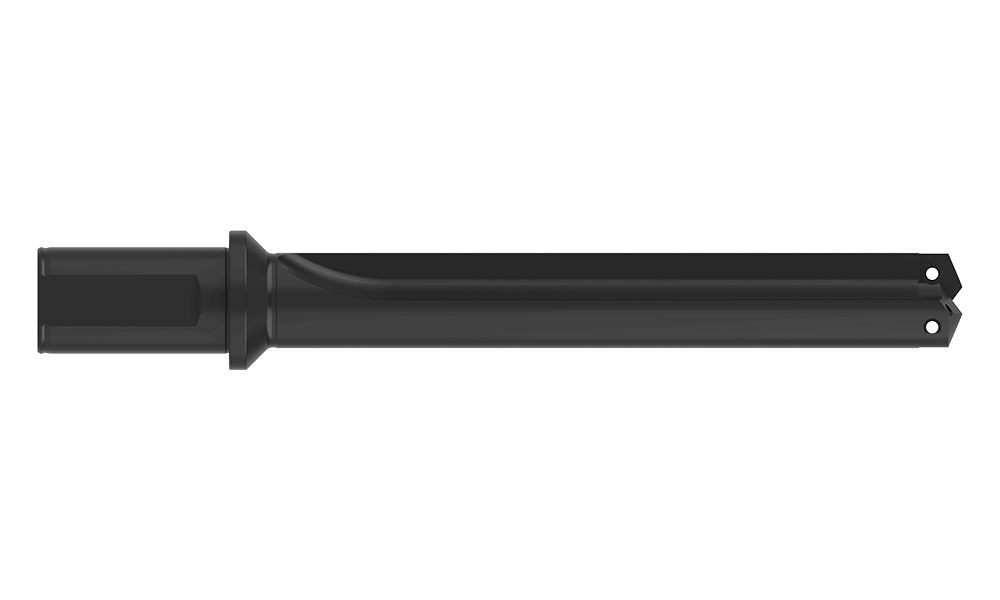

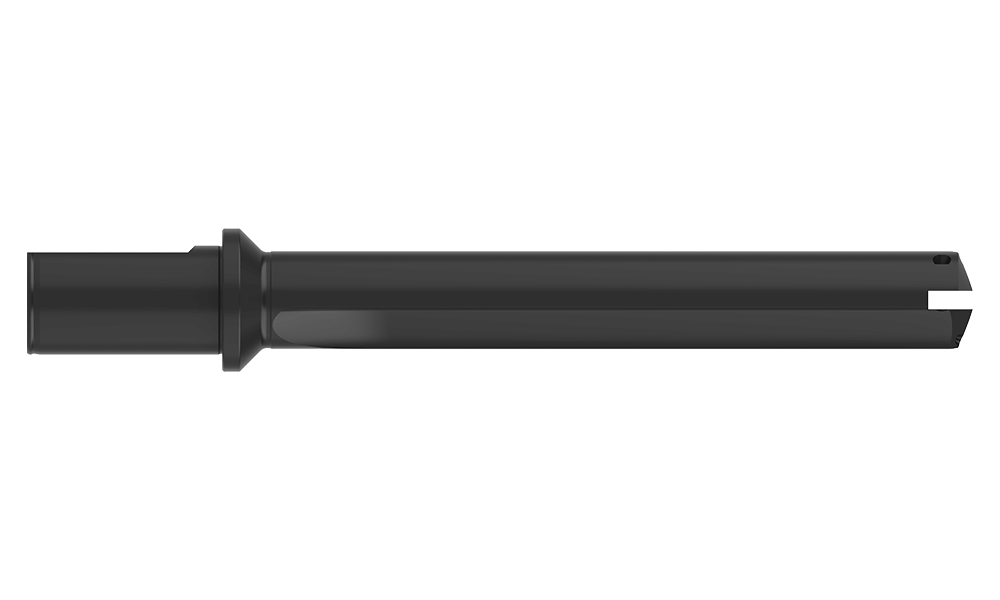

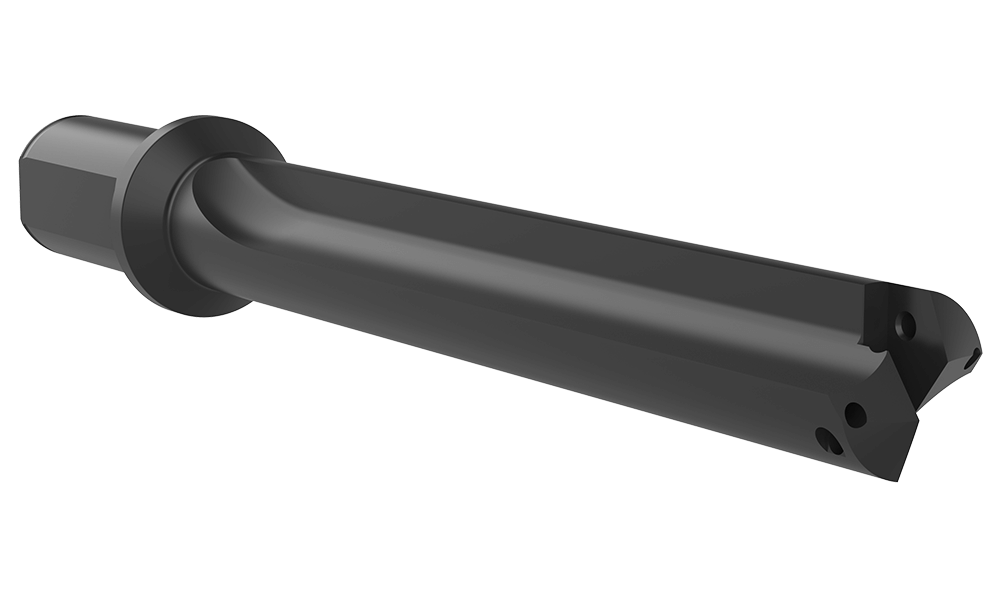

| Type of Product | Replaceable Drill Body |
| Product Application | General Purpose |
