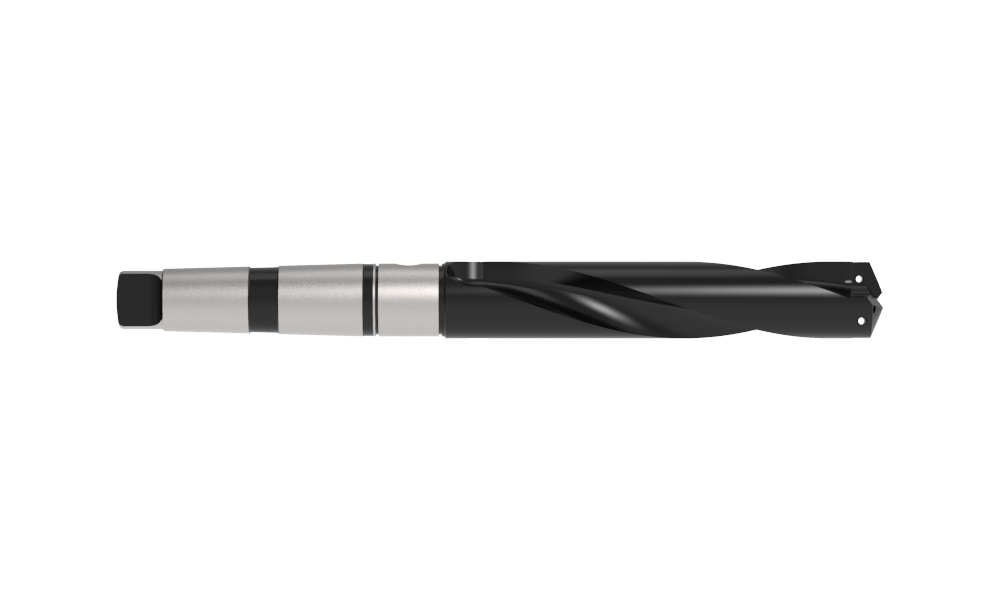

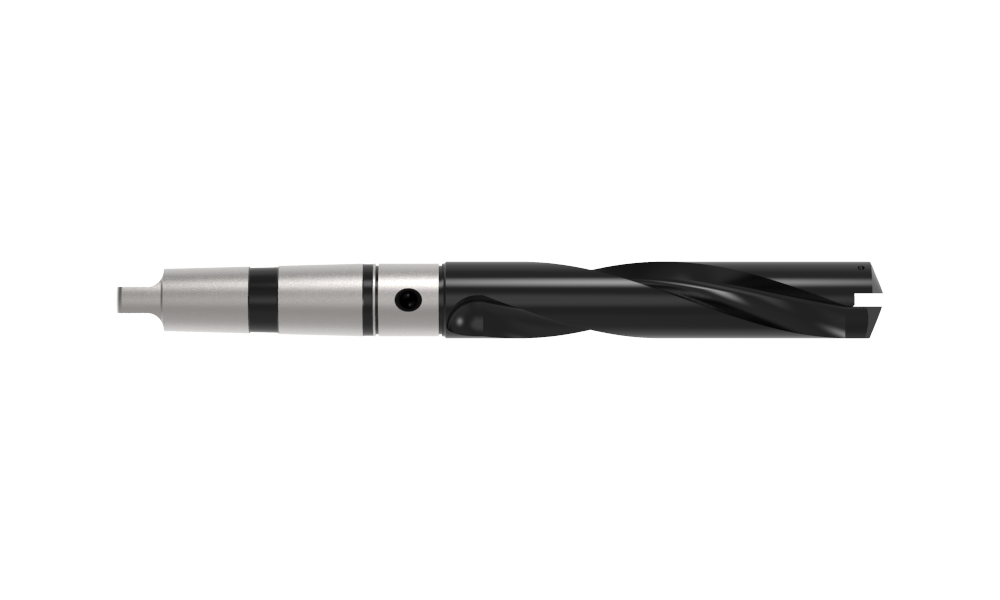

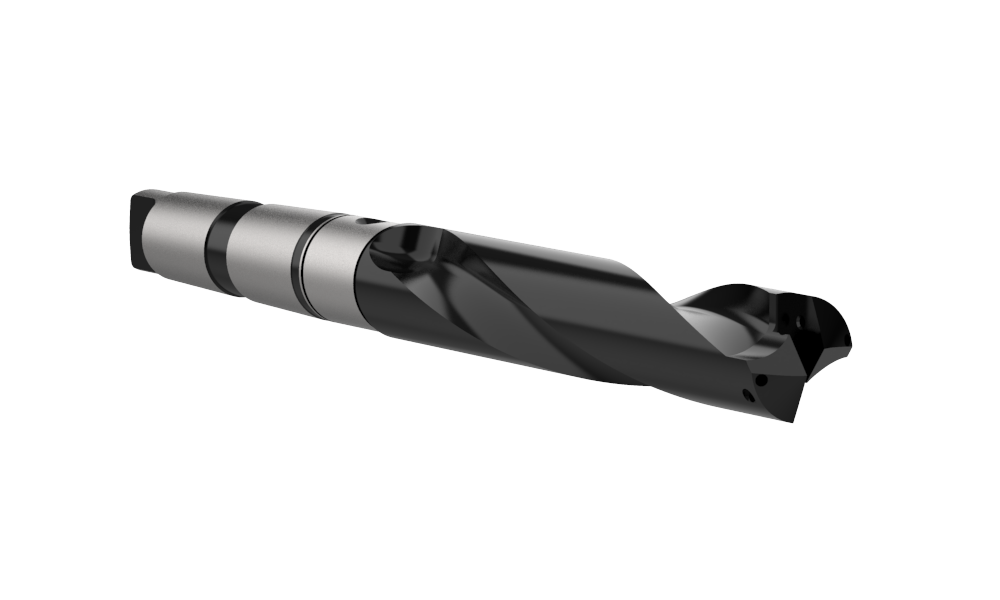

24040H-005M
#4 TA STD HLDR METR TAPR SHK
T-A® Holder






Product Specifications
Series4
Minimum diameter mm46.99
Maximum diameter mm65.30
Length TypeStandard
Flute TypeHelical
Overall length mm465.12
Tool Reference Length mm320.65
Body length mm266.70
Drill depth mm246.30
Shank typeMorse Taper
Shank diameter mm#5 MT ISO
Pipe tap side inch1/4
Pipe tap side mm1/4 BSPT
Deep Hole GuidelinesNo
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)9.73
CategoryStocked
