| Series | 4 |
| Minimum diameter inch | 1.8500 |
| Maximum diameter inch | 2.5709 |
| Length Type | Standard |
| Flute Type | Helical |
| Overall length inch | 13.751 |
| Tool Reference Length inch | 11.250 |
| Body length inch | 11.063 |
| Drill depth inch | 9.949 |
| Shank type | Flanged |
| Shank diameter inch | 1-1/2 |
| Shank length inch | 2.688 |
| Pipe tap rear inch | 1/4 NPT |
| Deep Hole Guidelines | No |

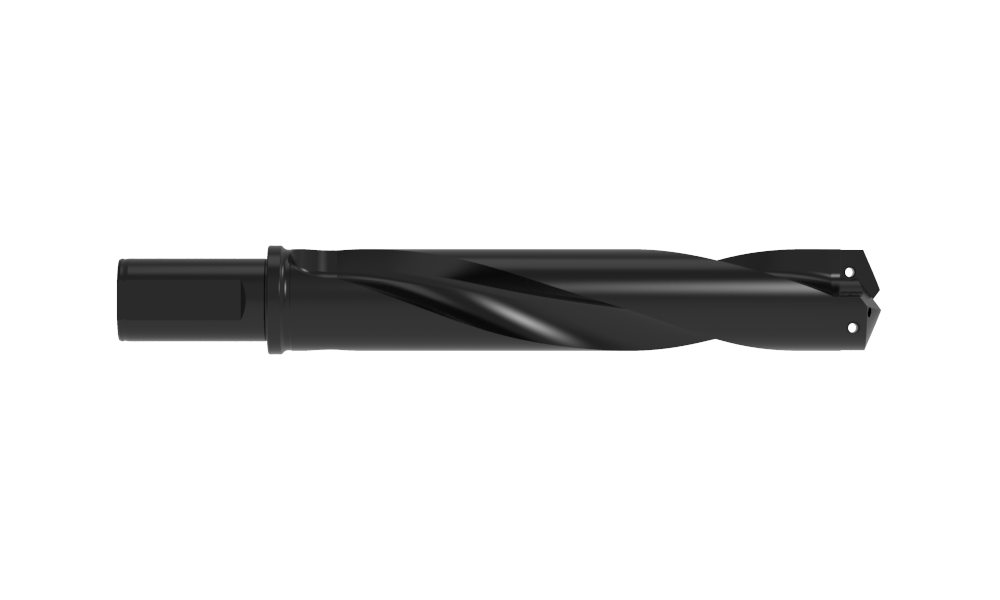

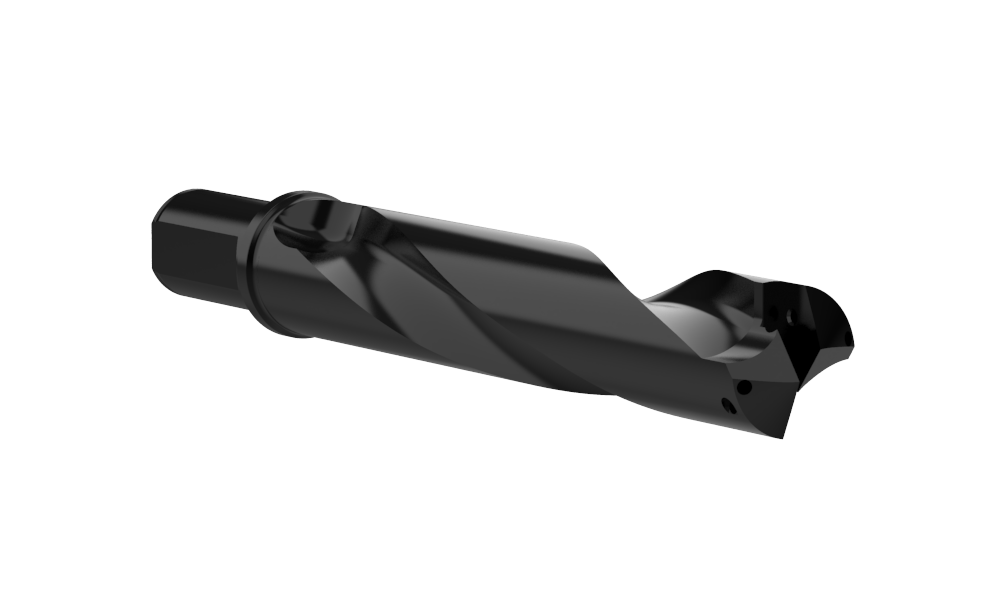

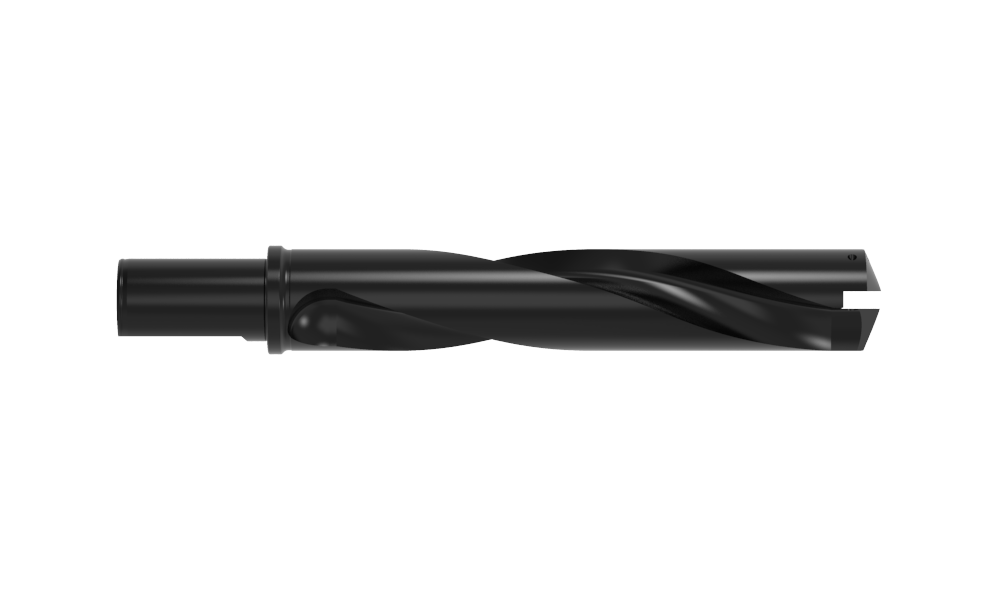

| Type of Product | Replaceable Drill Body |
| Product Application | General Purpose |
