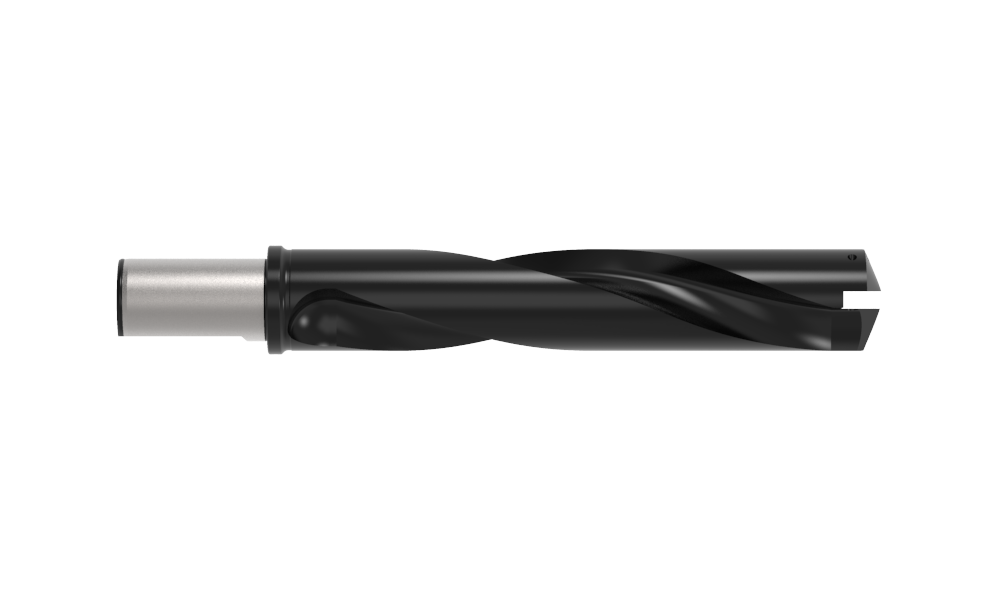

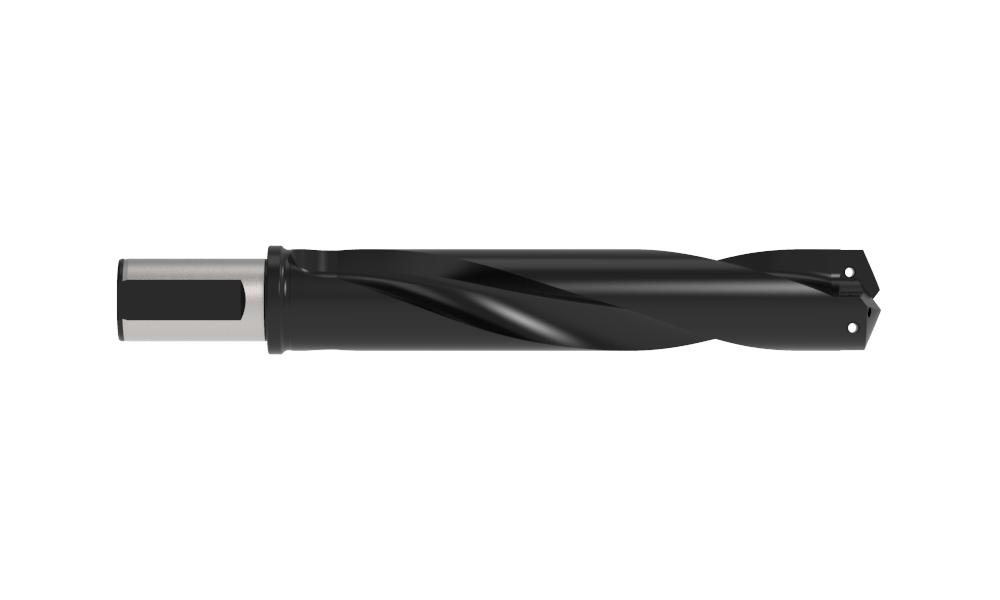

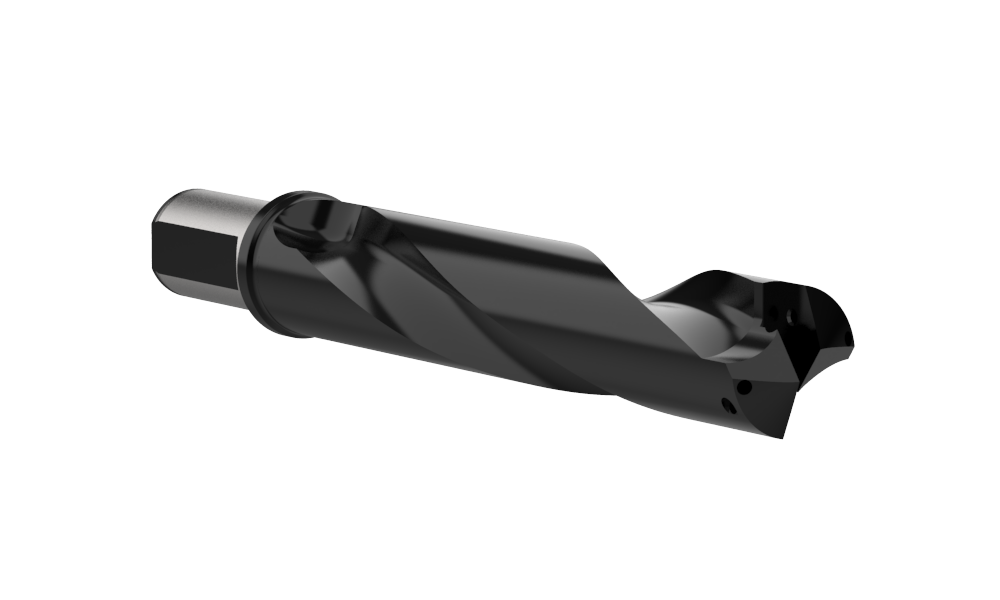

24040H-40FM
#4 TA STD HLDR METR ST SHK
T-A® Holder






Product Specifications
Series4
Minimum diameter mm46.99
Maximum diameter mm65.30
Length TypeStandard
Flute TypeHelical
Overall length mm351.00
Tool Reference Length mm285.75
Body length mm281.00
Drill depth mm252.70
Shank typeFlanged
Shank diameter mm40
Shank length mm70.0
Pipe tap rear inch1/4
Pipe tap rear mm1/4 BSPT
Deep Hole GuidelinesNo
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)7.32
CategoryStocked
