| Series | 4 |
| Minimum diameter inch | 1.8500 |
| Maximum diameter inch | 2.5709 |
| Length Type | Standard |
| Flute Type | Straight |
| Overall length inch | 17.062 |
| Tool Reference Length inch | 12.624 |
| Body length inch | 10.500 |
| Drill depth inch | 9.139 |
| Shank type | Morse Taper |
| Shank diameter inch | #4 MT |
| Pipe tap side inch | 1/4 NPT |
| Deep Hole Guidelines | No |

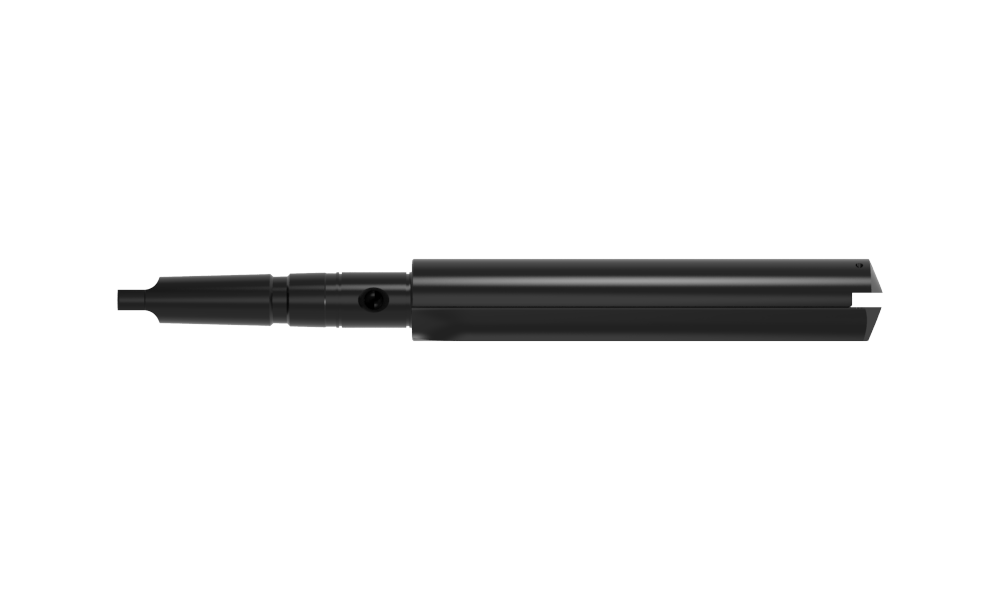

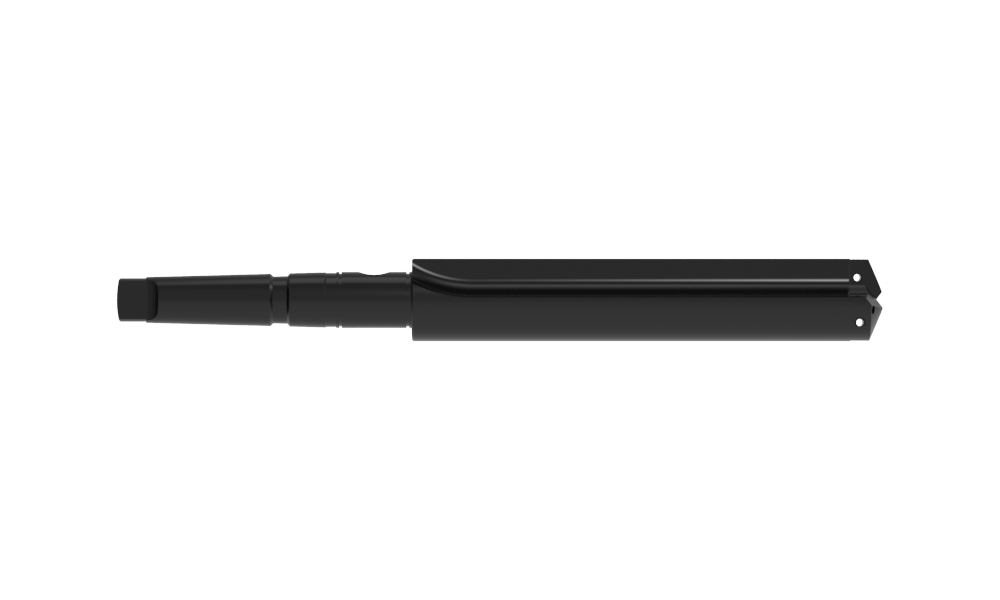

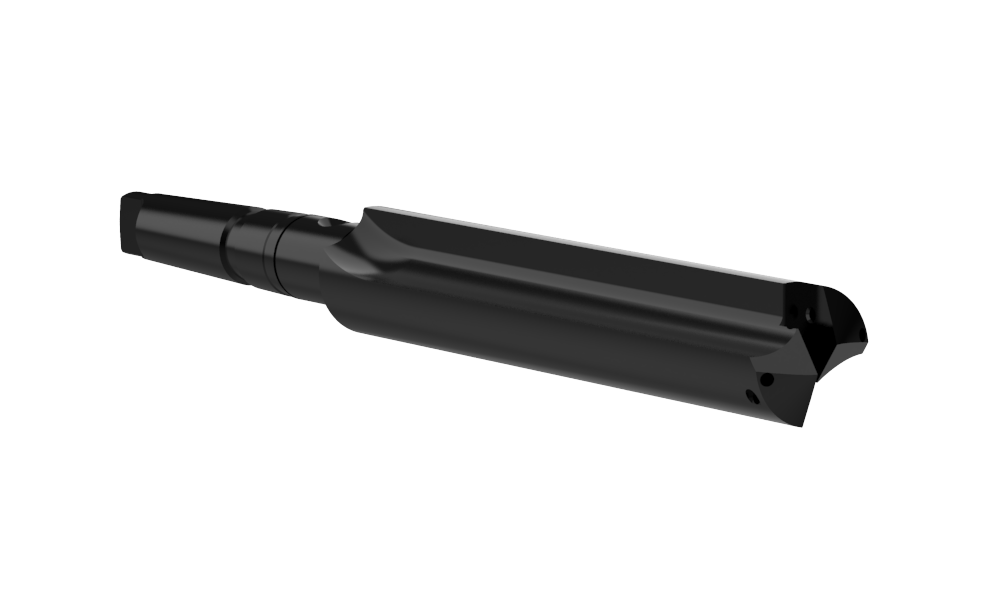

| Type of Product | Replaceable Drill Body |
| Product Application | General Purpose |
