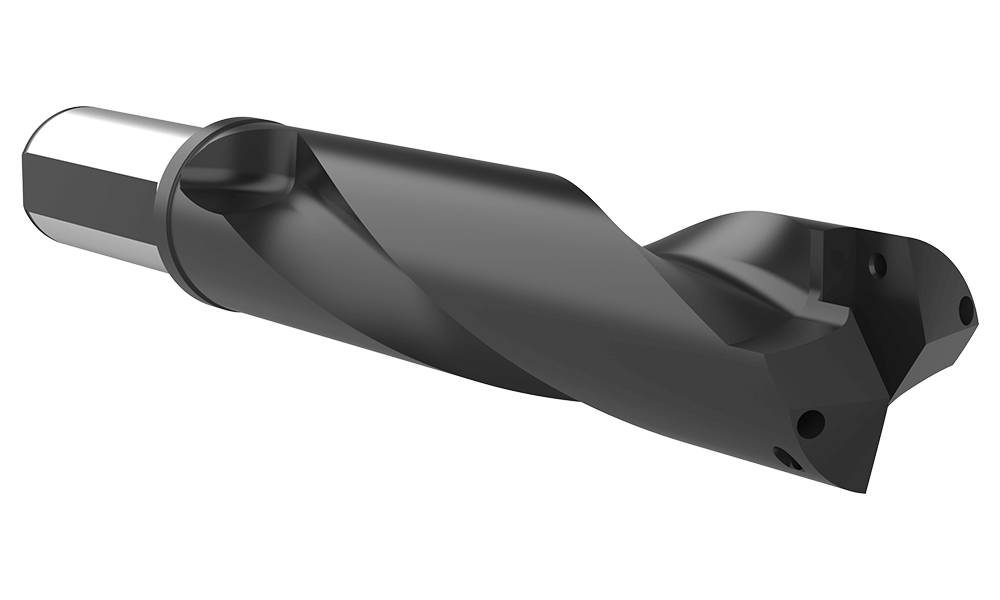

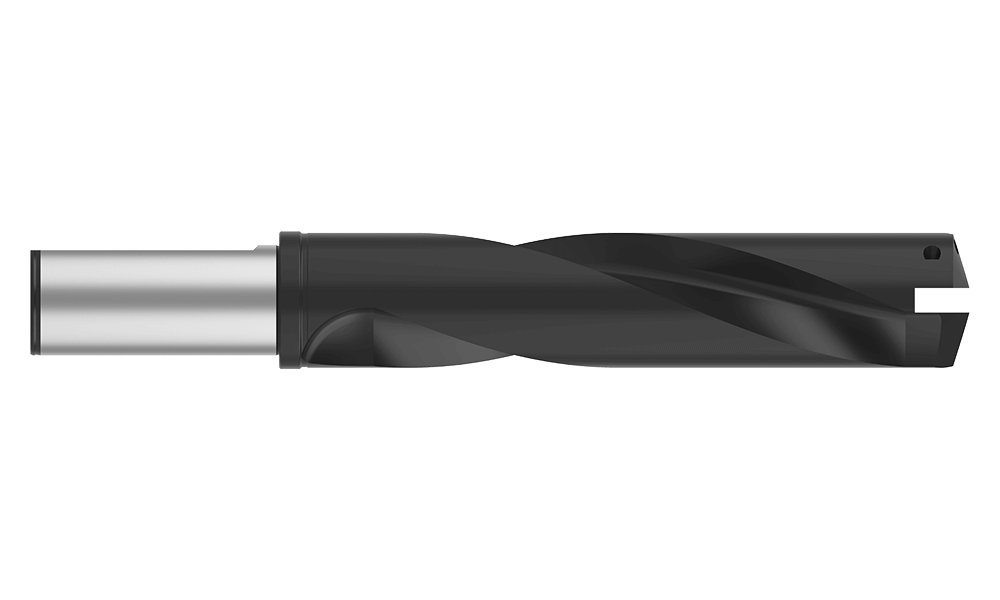

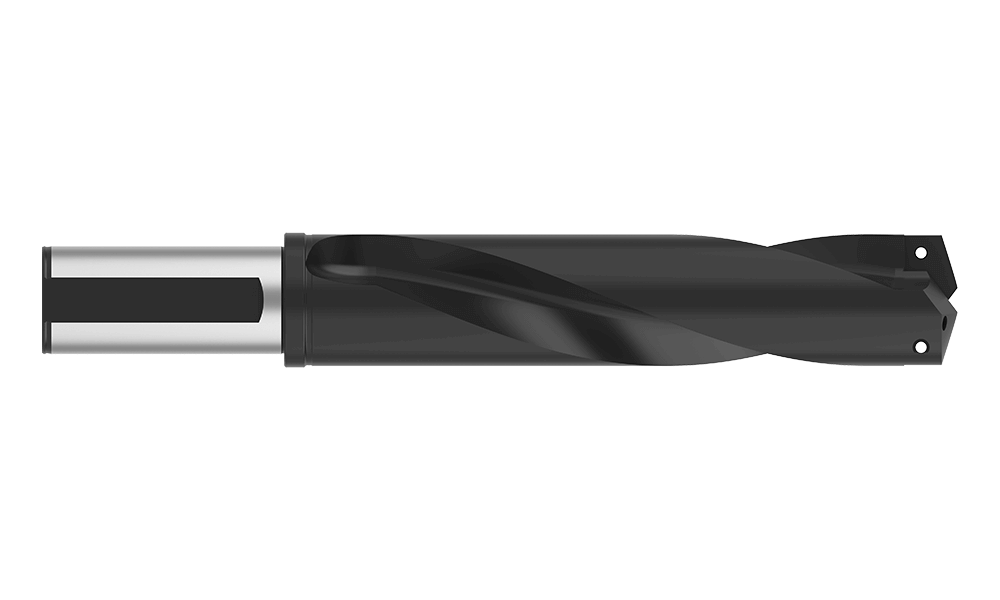

24050H-50FM
#5 TA STD HLDR METR ST SHK
T-A® Holder





See Additional Technical Information

Product Specifications
Series5
Minimum diameter mm62.38
Maximum diameter mm89.09
Length TypeStandard
Flute TypeHelical
Overall length mm397.51
Tool Reference Length mm323.85
Body length mm317.50
Drill depth mm277.32
Shank typeFlanged
Shank diameter mm50
Shank length mm80.0
Pipe tap rear inch1/2
Pipe tap rear mm1/2 BSPT
Deep Hole GuidelinesNo
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)14.46
CategoryStocked
