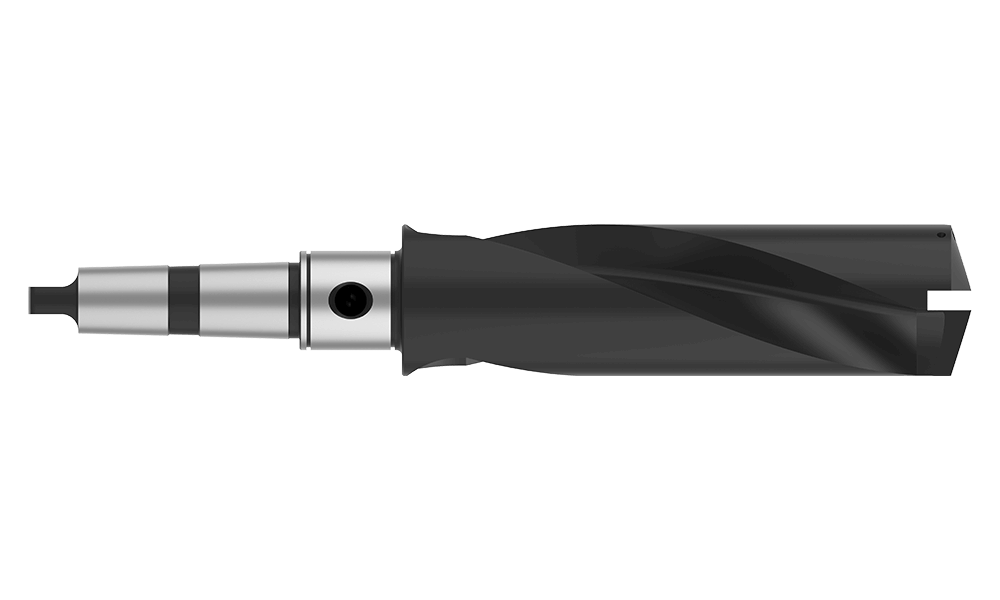

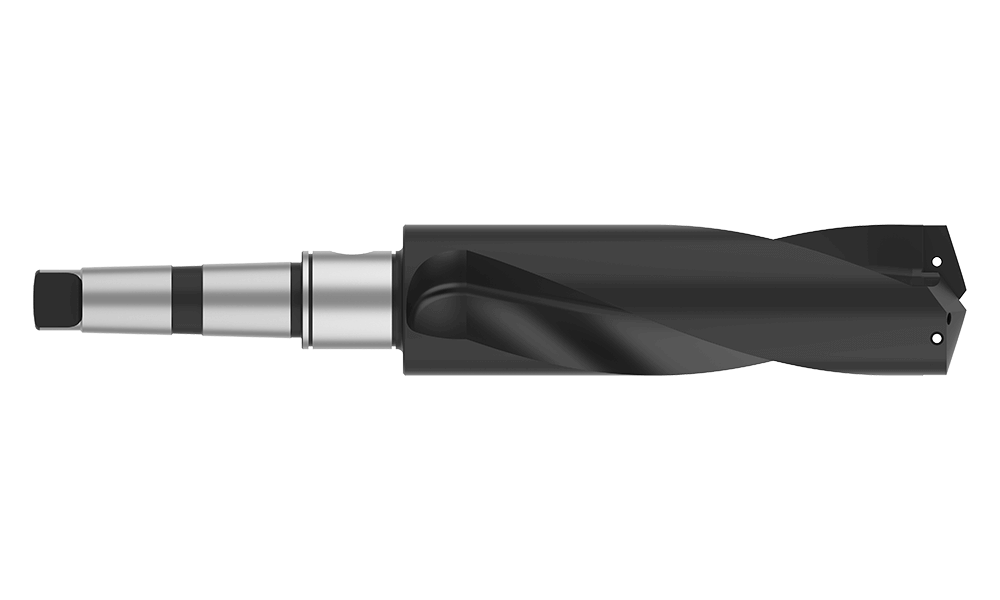

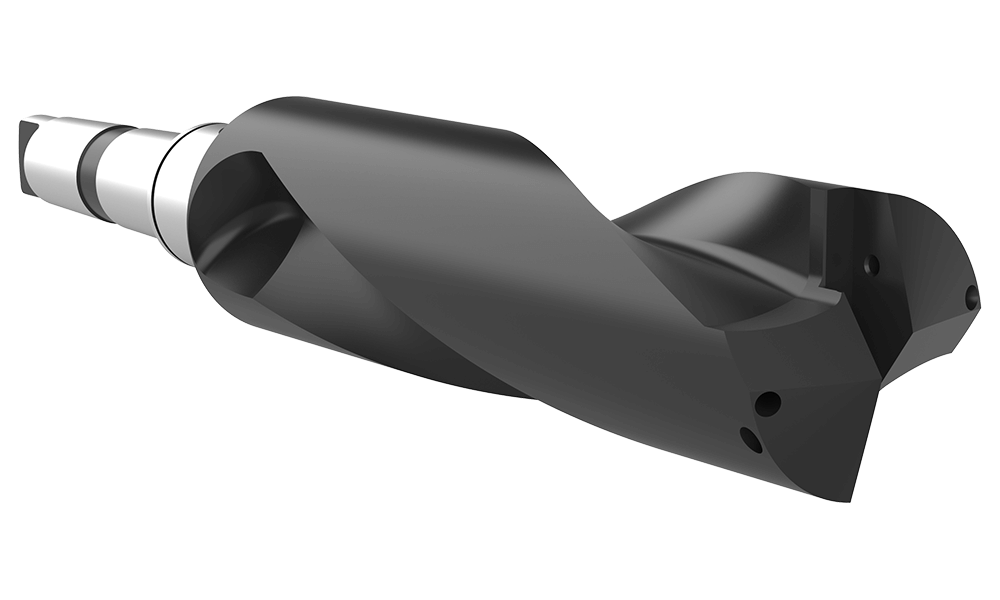

24070H-005M
#7 TA STD HLDR METR TAPR SHK
T-A® Holder





See Additional Technical Information

Product Specifications
Series7
Minimum diameter mm89.10
Maximum diameter mm114.48
Length TypeStandard
Flute TypeHelical
Overall length mm541.32
Tool Reference Length mm398.45
Body length mm327.03
Drill depth mm290.50
Shank typeMorse Taper
Shank diameter mm#5 MT ISO
Pipe tap side inch1/2
Pipe tap side mm1/2 BSPT
Deep Hole GuidelinesNo
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)28.63
CategoryStocked
