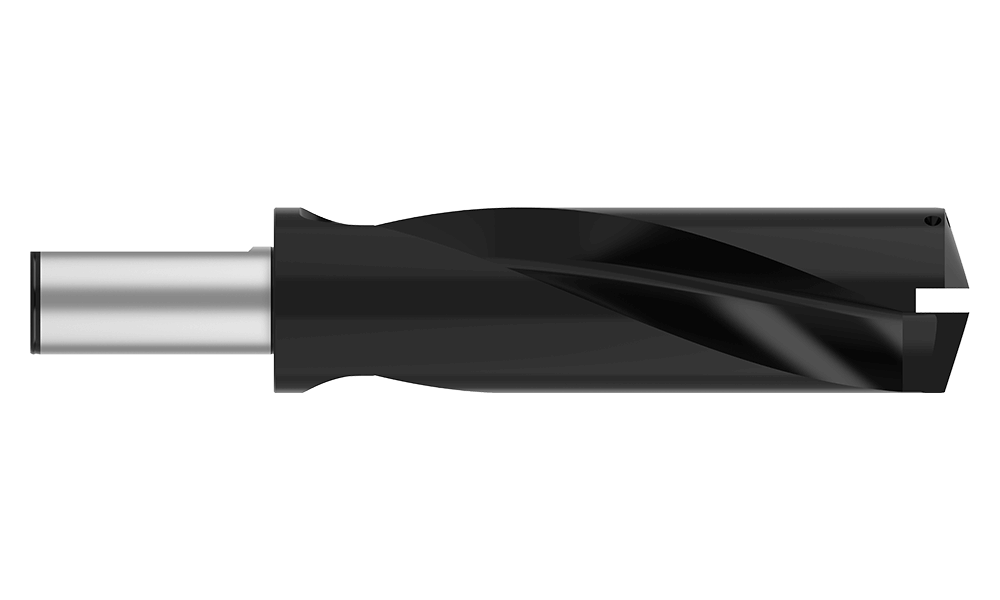

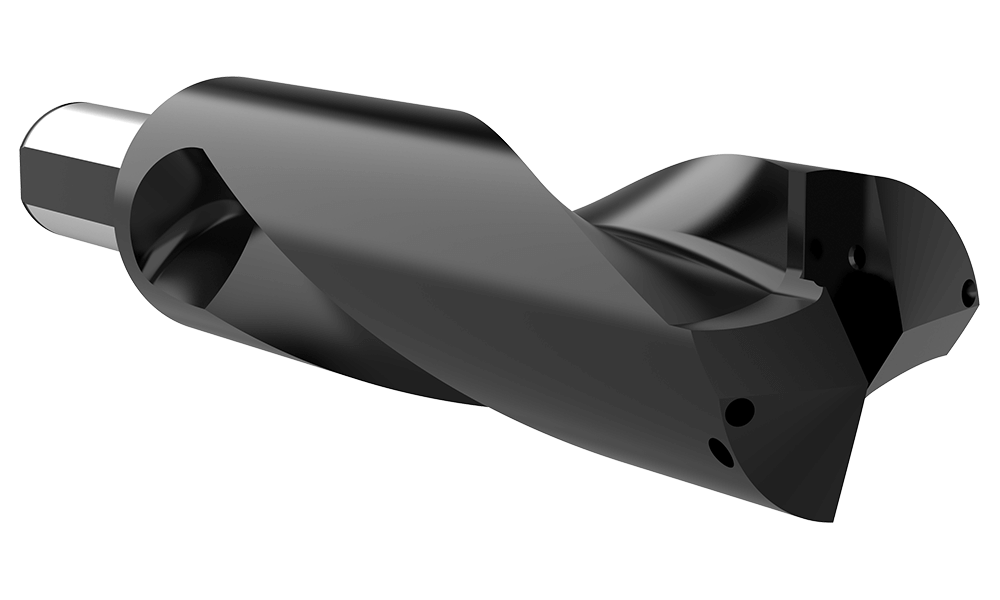

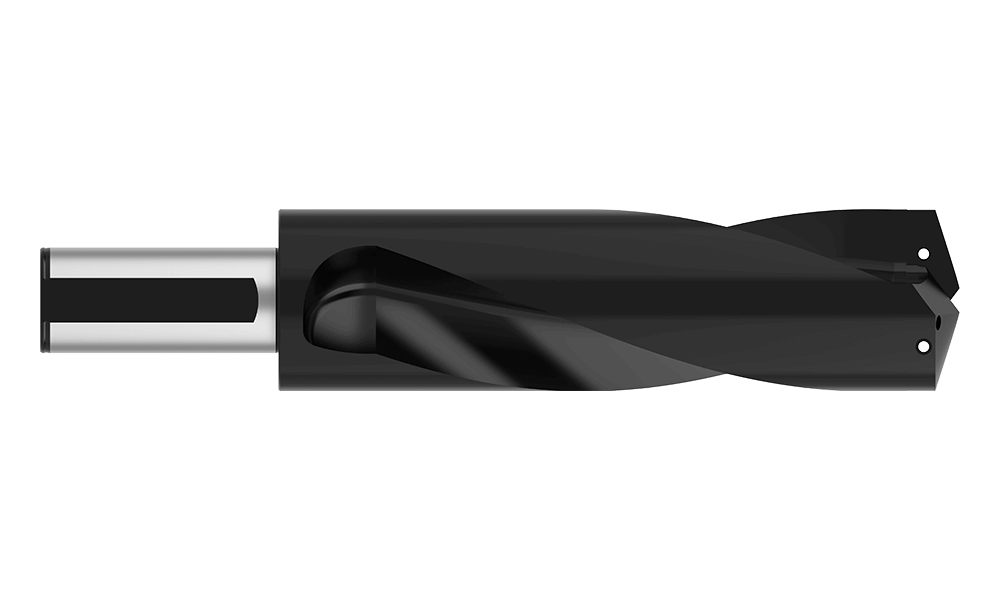

24070H-50FM
#7 TA STD HLDR METR ST SHK
T-A® Holder





See Additional Technical Information

Product Specifications
Series7
Minimum diameter mm89.10
Maximum diameter mm114.48
Length TypeStandard
Flute TypeHelical
Overall length mm407.04
Tool Reference Length mm333.38
Body length mm327.03
Drill depth mm283.49
Shank typeFlanged
Shank diameter mm50
Shank length mm80.0
Pipe tap rear inch1/2
Pipe tap rear mm1/2 BSPT
Deep Hole GuidelinesNo
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)25.78
CategoryStocked
