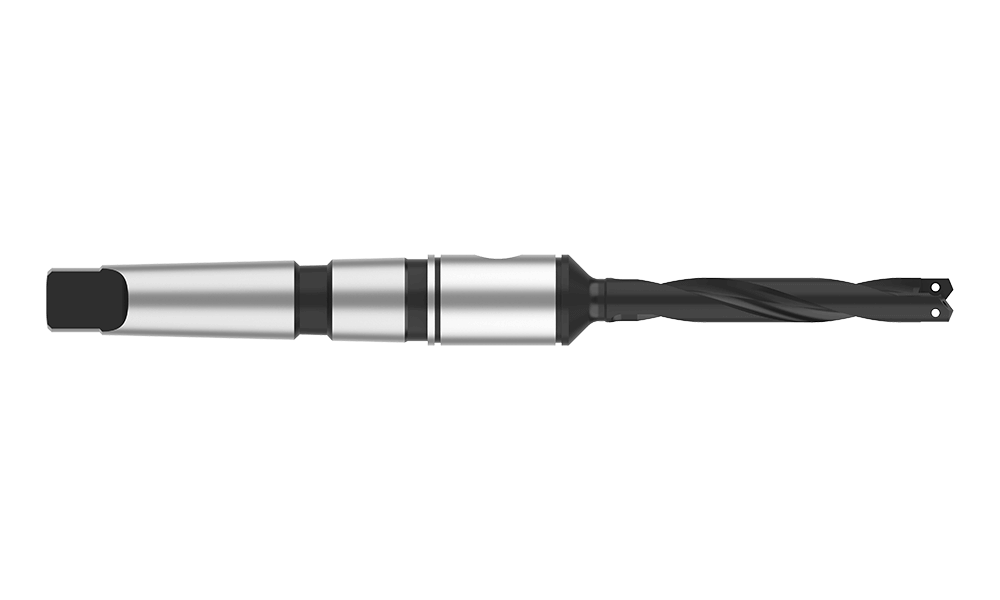

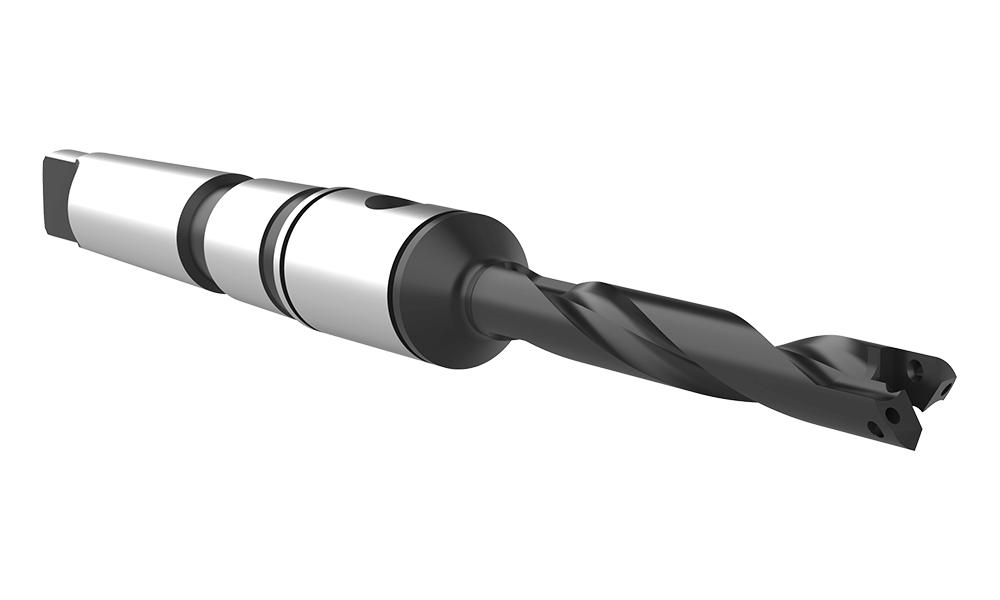

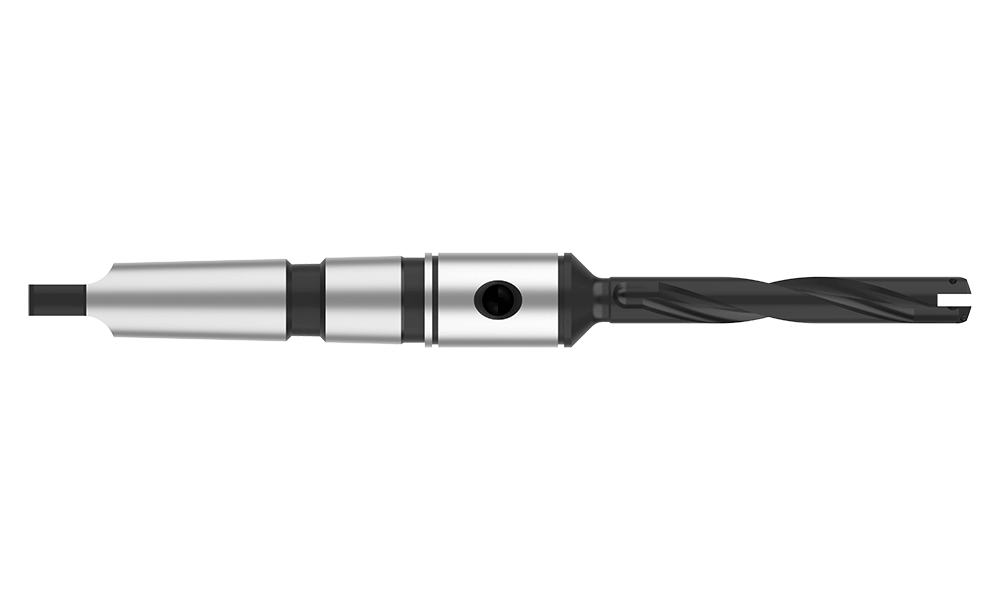

240Y0H-002M
#Y TA STD HLDR METR TAPR SHK
T-A® Holder





See Additional Technical Information

Product Specifications
SeriesY
Minimum diameter mm9.50
Maximum diameter mm11.09
Length TypeStandard
Flute TypeHelical
Overall length mm188.90
Tool Reference Length mm116.56
Body length mm80.16
Drill depth mm69.06
Shank typeMorse Taper
Shank diameter mm#2 MT ISO
Pipe tap side inch1/16
Pipe tap side mm1/16 BSPT
Deep Hole GuidelinesNo
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)0.46
CategoryStocked
