| Series | Z |
| Minimum diameter inch | 0.4370 |
| Maximum diameter inch | 0.5109 |
| Length Type | Standard |
| Flute Type | Helical |
| Overall length inch | 7.437 |
| Tool Reference Length inch | 4.589 |
| Body length inch | 3.156 |
| Drill depth inch | 2.733 |
| Shank type | Morse Taper |
| Shank diameter inch | #2 MT |
| Pipe tap side inch | 1/16 NPT |
| Deep Hole Guidelines | No |

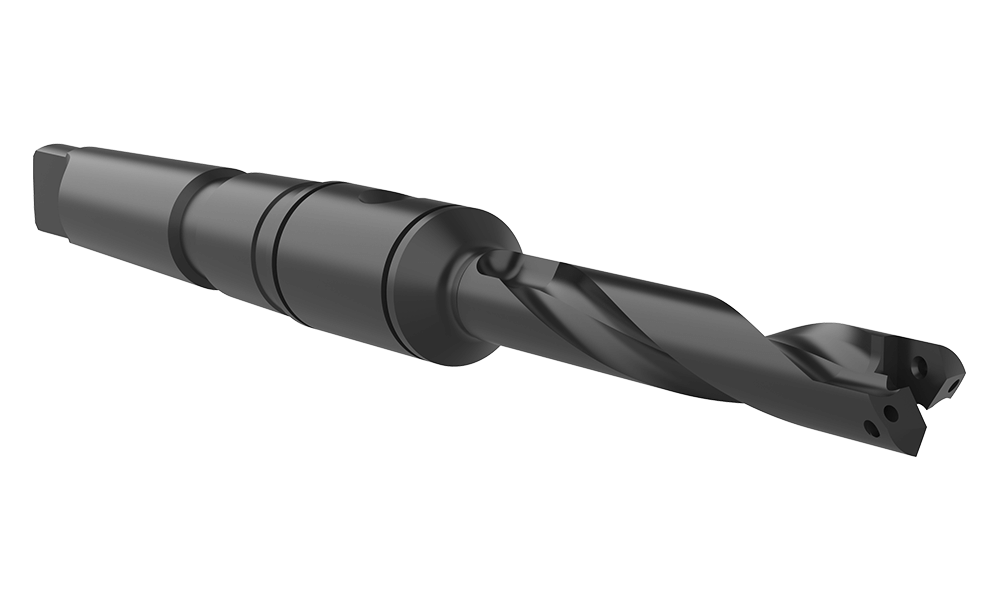

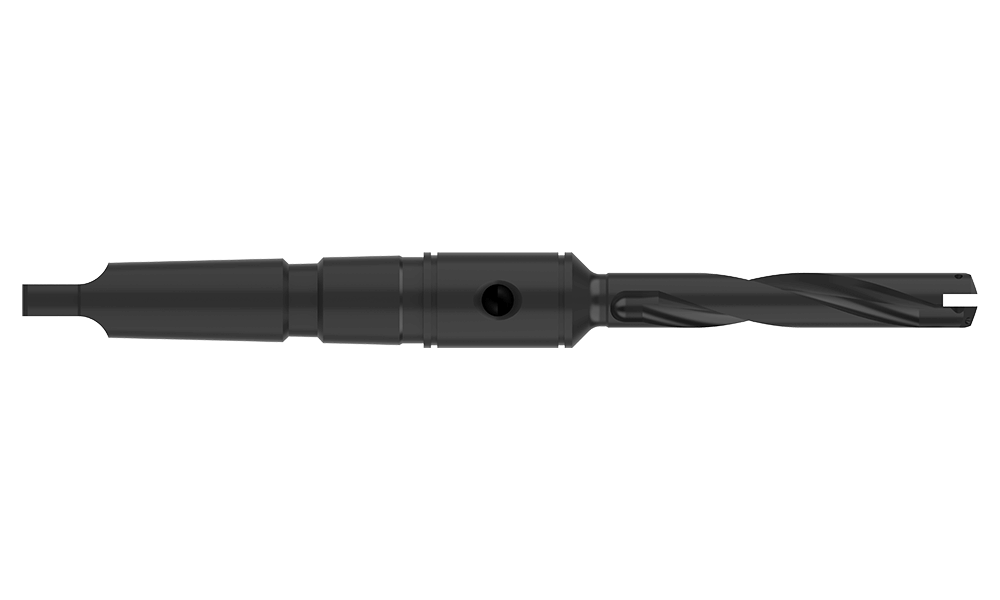

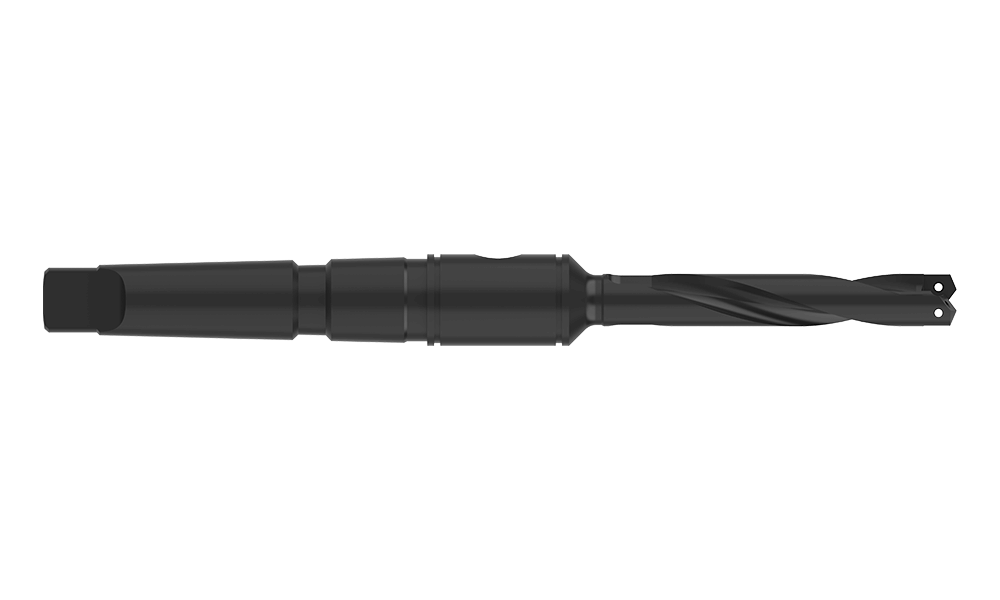

| Type of Product | Replaceable Drill Body |
| Product Application | General Purpose |
