24510H-100F
T-A® Replaceable Drill Body: 0.6900" - 0.9609", Standard Plus, Flanged Shank
T-A® Holder

Add to cart image Add to list image







See Additional Technical Information
Default Image

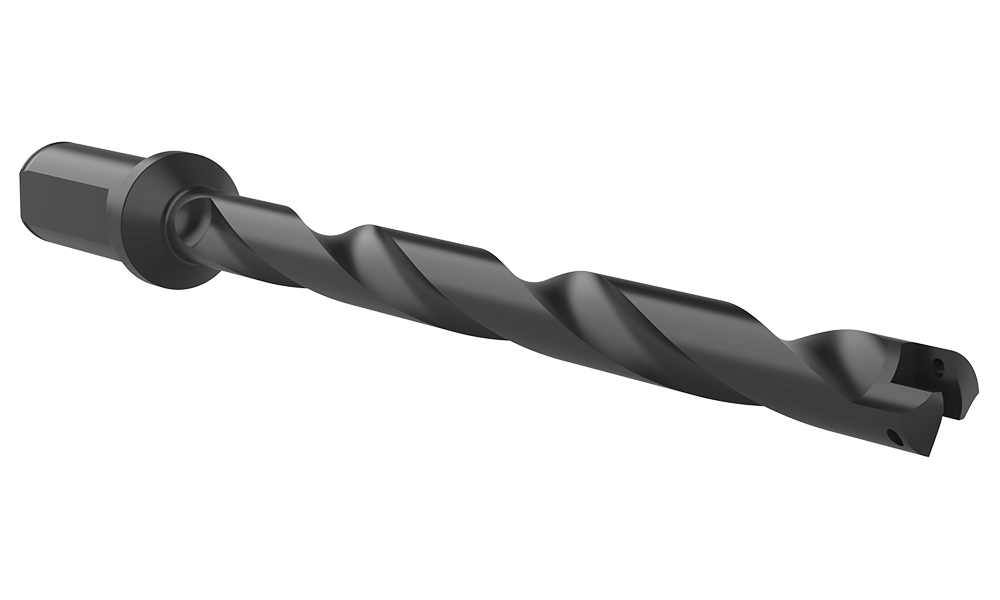

Angle

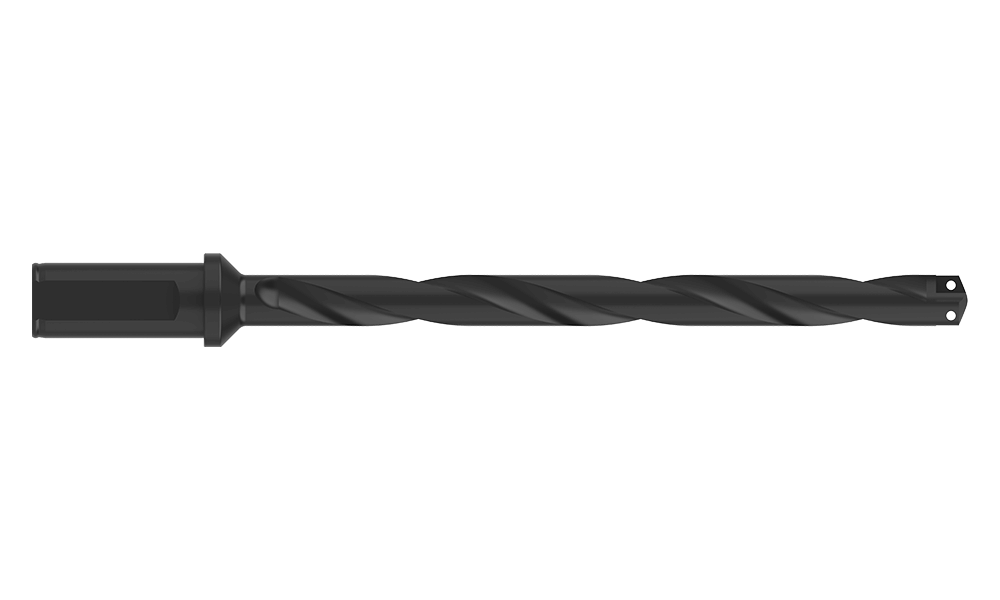

Front

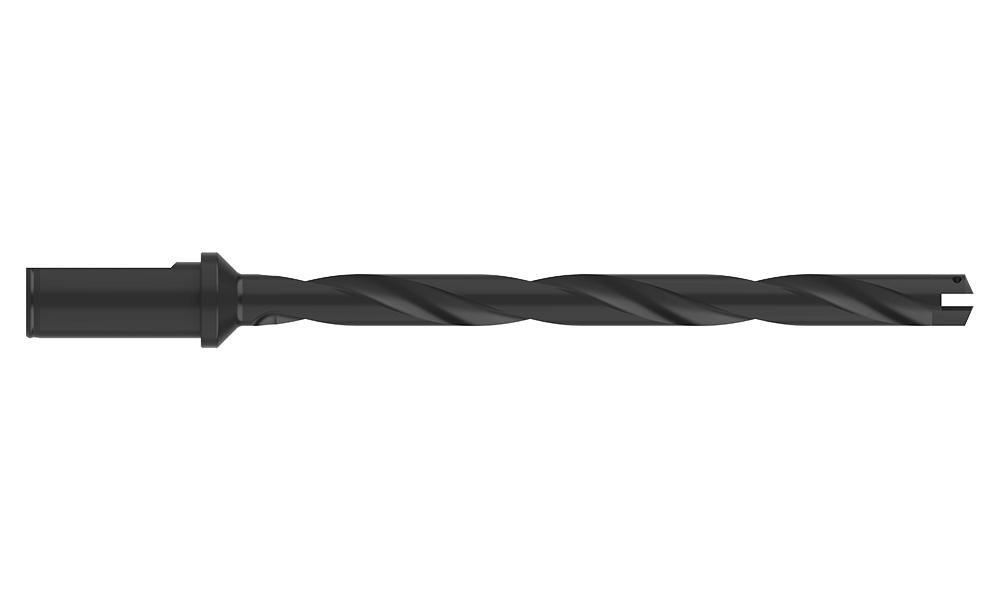

Side
Product Specifications
Series 1
Minimum Diameter (inch) 0.6900
Maximum Diameter (inch) 0.9609
Length Type Standard Plus
Flute Type Helical
Overall Length (inch) 12.371
Tool Reference Length (inch) 10.231
Body Length (inch) 10.091
Drill Depth (inch) 9.226
Shank Type Flanged
Shank Diameter (inch) 1
Shank Length (inch) 2.280
Pipe Tap Rear (inch) 1/8 NPT
Deep Hole Guidelines (Yes/No) Yes
Type of Product Replaceable Drill Body
Product Application General Purpose
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7375-IP9-1 (Qty0)
Replacement T-A® Screw
1 KIT (1) SCREWS,CLASS 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-9 (Qty0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-9
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 1.3
Weight in kg (each) 0.59
Category Stocked
