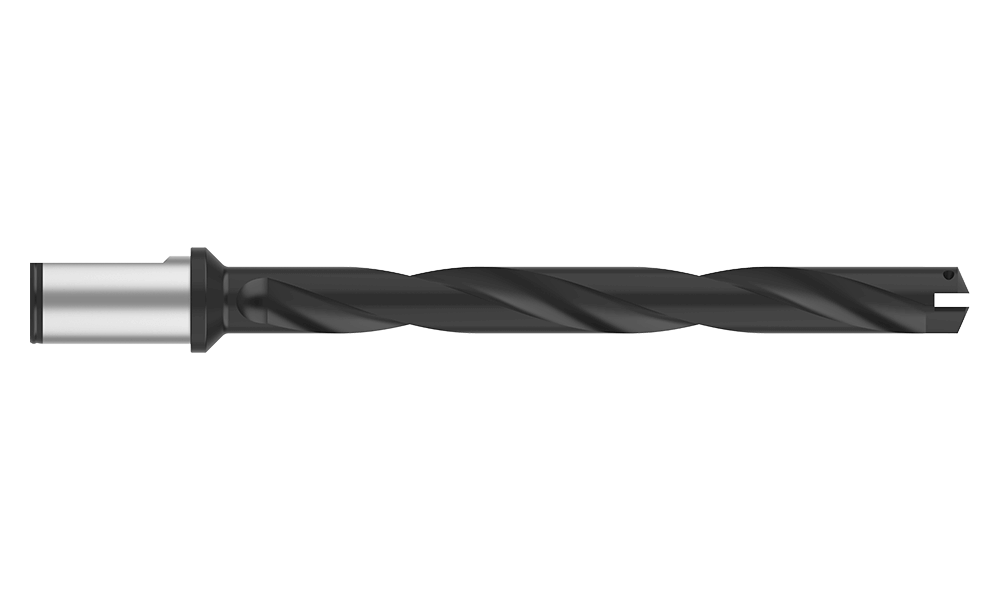

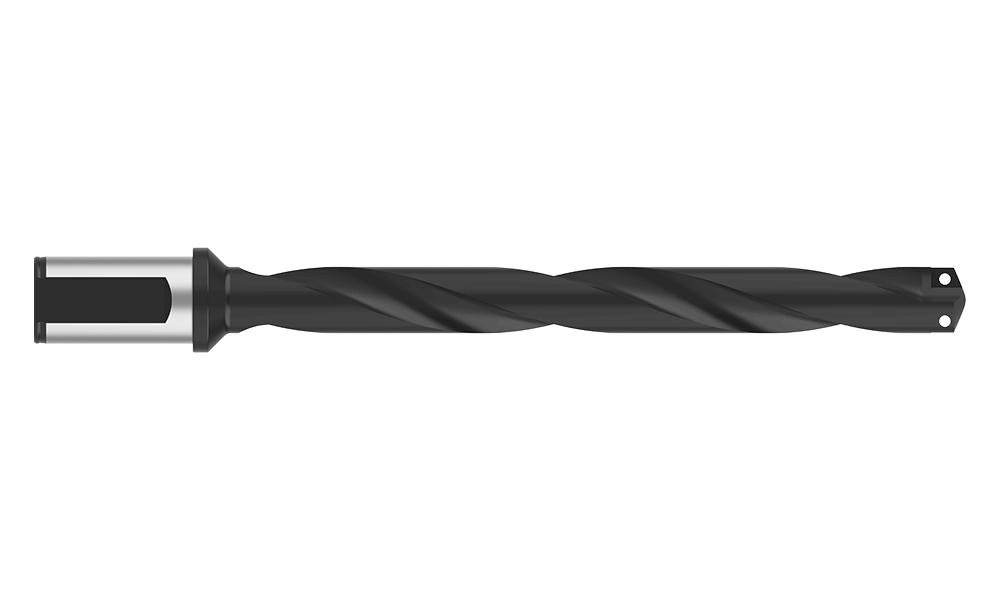

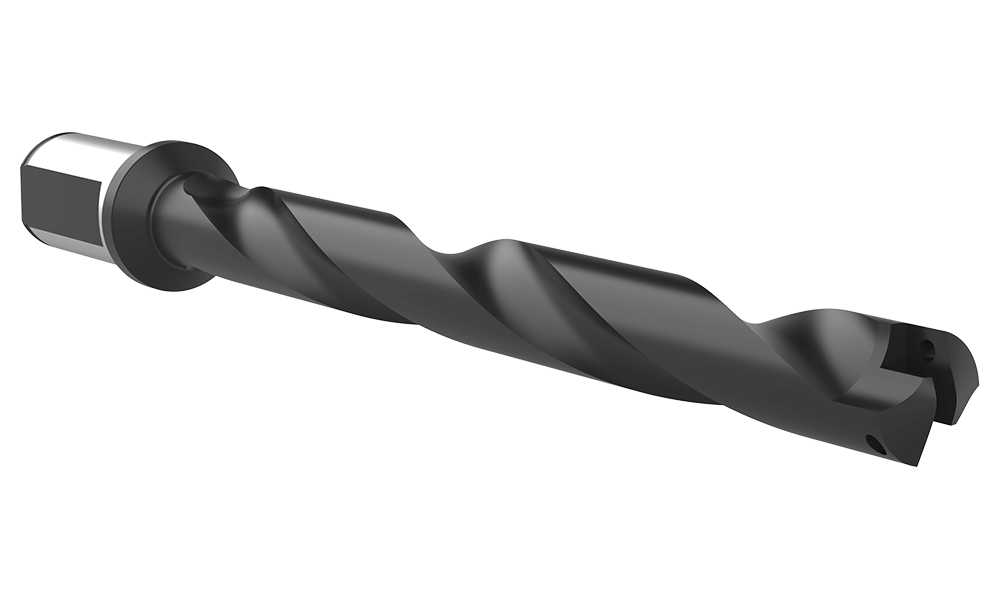

24520H-32FM
#2 TA STD+ HLDR METR ST SHK
T-A® Holder





See Additional Technical Information

Product Specifications
Series2
Minimum diameter mm24.41
Maximum diameter mm35.06
Length TypeStandard Plus
Flute TypeHelical
Overall length mm340.9
Tool Reference Length mm284.5
Body length mm280.9
Drill depth mm256.3
Shank typeFlanged
Shank diameter mm32
Shank length mm60.0
Pipe tap rear inch1/4
Pipe tap rear mm1/4 BSPT
Deep Hole GuidelinesYes
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose


Related Items
7495-IP15-1     (Qty: 0)
Replacement T-A® Screw
2-2.5 KIT (1) TORX PLUS,CL 4H
8IP-15     (Qty: 0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-15
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)2.44
CategoryStocked
