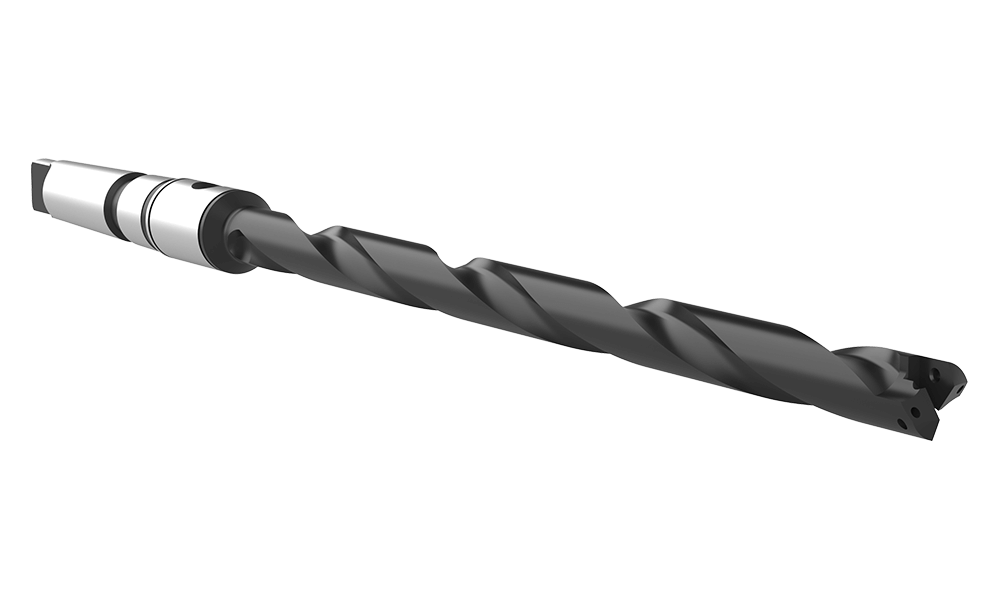

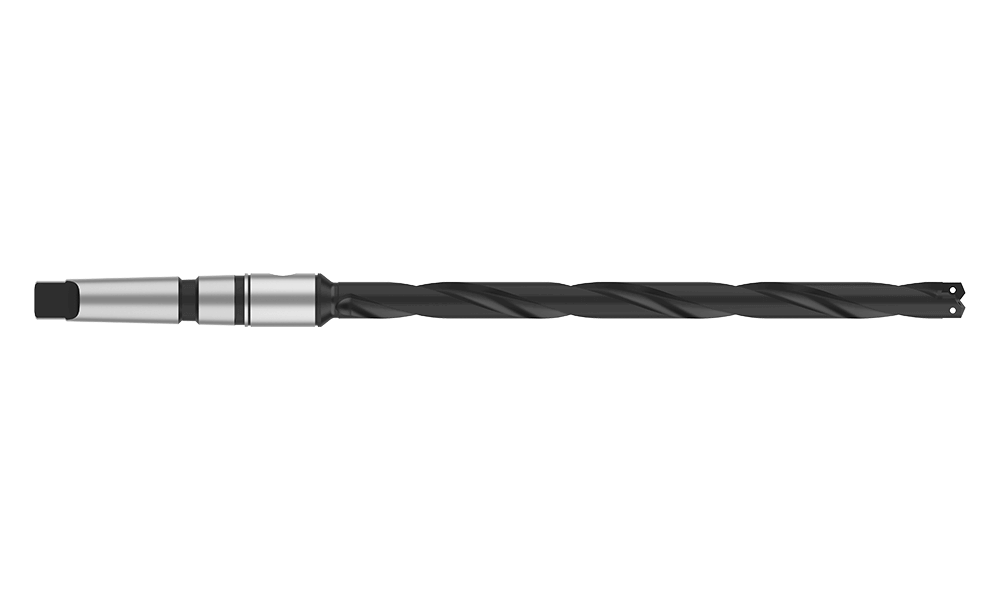

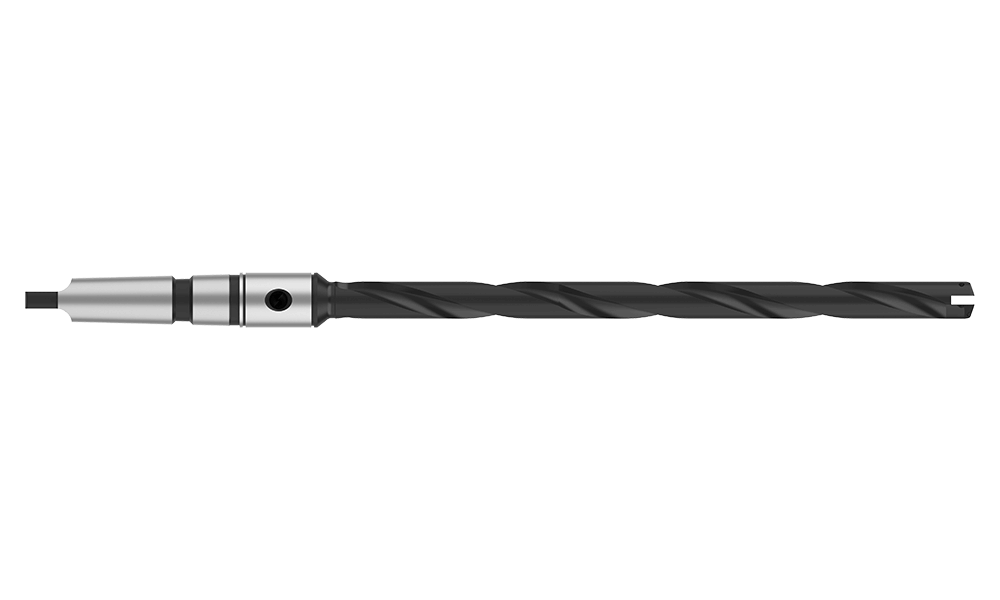

25010H-003M
#1 TA EXT HLDR METR TAPR SHK
T-A® Holder





See Additional Technical Information

Product Specifications
Series1
Minimum diameter mm17.53
Maximum diameter mm24.40
Length TypeExtended
Flute TypeHelical
Overall length mm435.76
Tool Reference Length mm345.64
Body length mm301.63
Drill depth mm285.37
Shank typeMorse Taper
Shank diameter mm#3 MT ISO
Pipe tap side inch1/8
Pipe tap side mm1/8 BSPT
Deep Hole GuidelinesYes
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)1.71
CategoryStocked
