| Series | 1 |
| Sub-Series | .5 |
| Minimum diameter inch | 0.9375 |
| Maximum diameter inch | 0.9609 |
| Length Type | Extended |
| Flute Type | Helical |
| Overall length inch | 14.235 |
| Tool Reference Length inch | 9.484 |
| Body length inch | 9.360 |
| Drill depth inch | 6.816 |
| Shank type | Morse Taper (SS) |
| Shank diameter inch | #4 MT |
| Coolant Inlet Style Rear | Through Tang Coolant |
| Coolant Inlet Style Side | Through Shank Coolant |
| Deep Hole Guidelines | Yes |

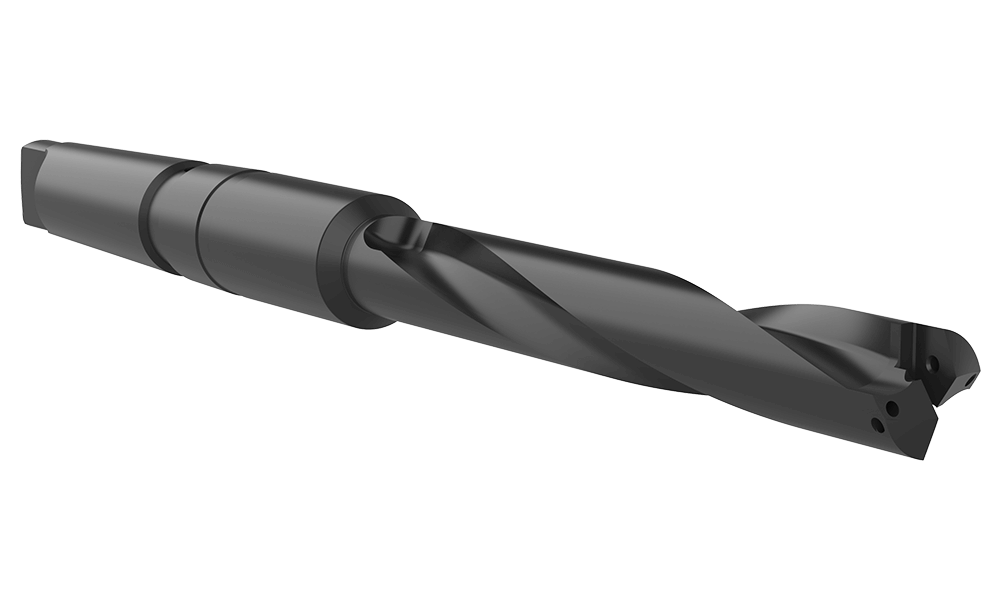

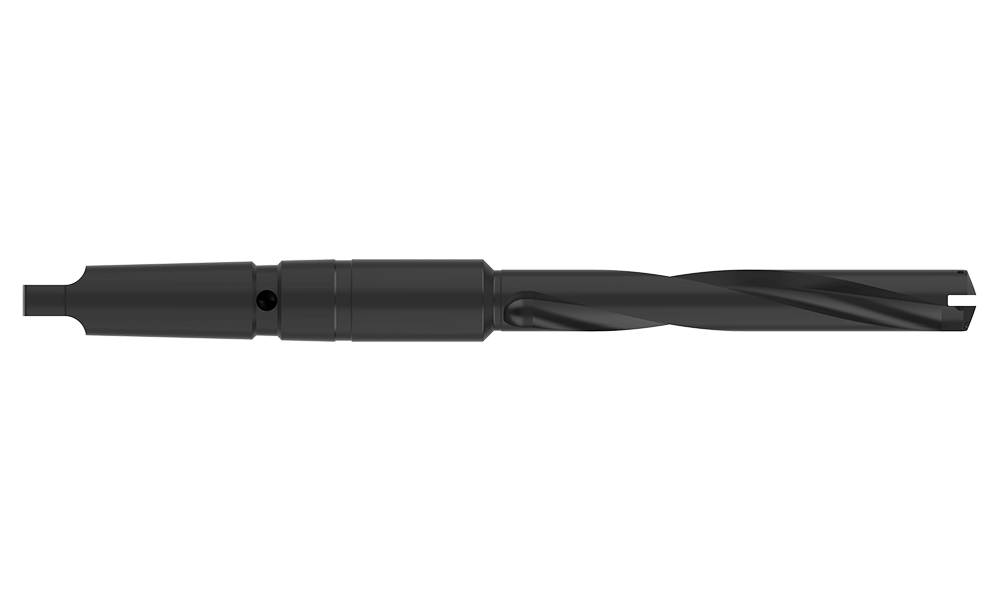

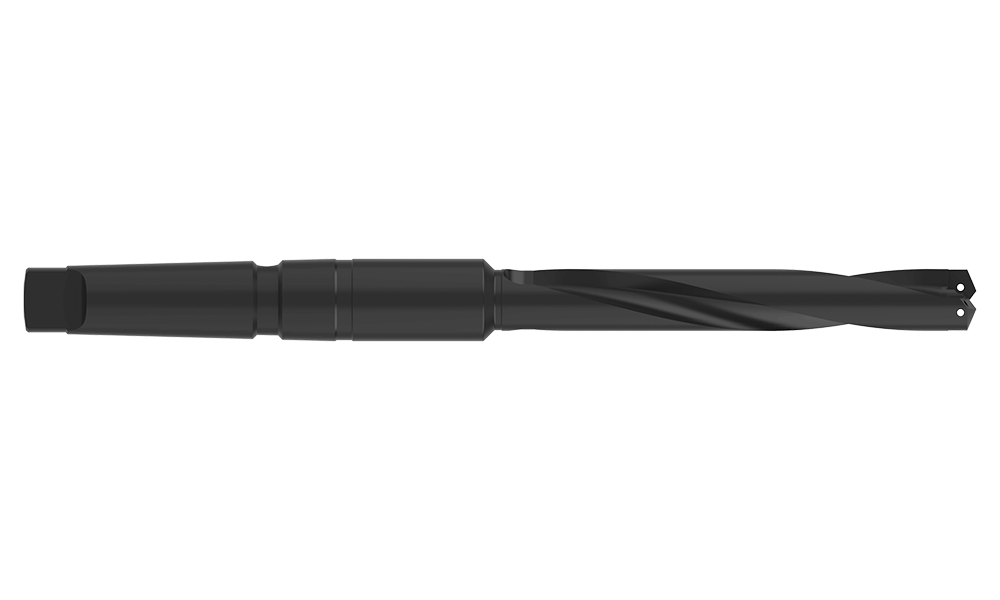

| Type of Product | Replaceable Drill Body |
| Product Application | Structural Steel |
