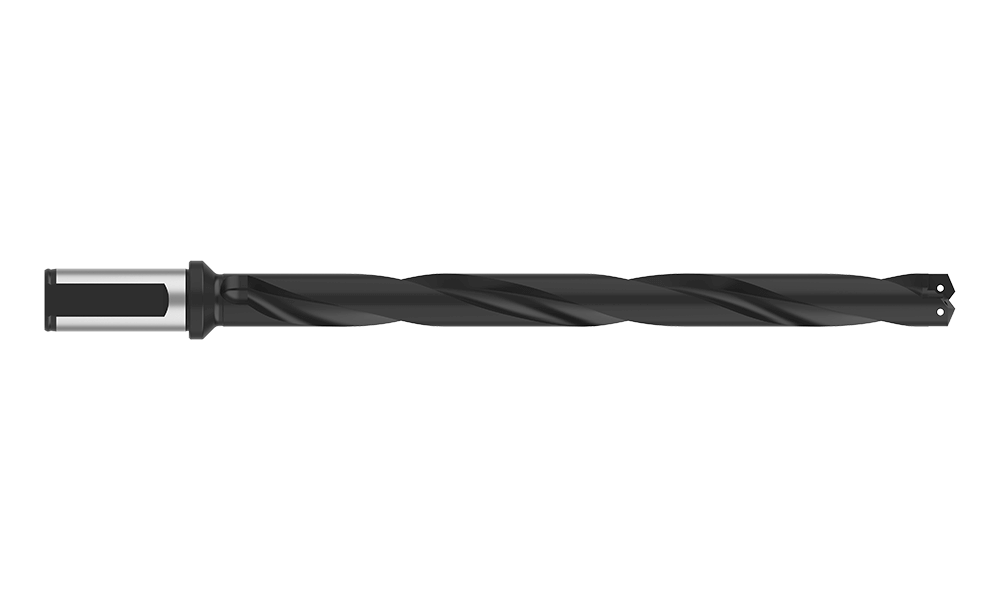

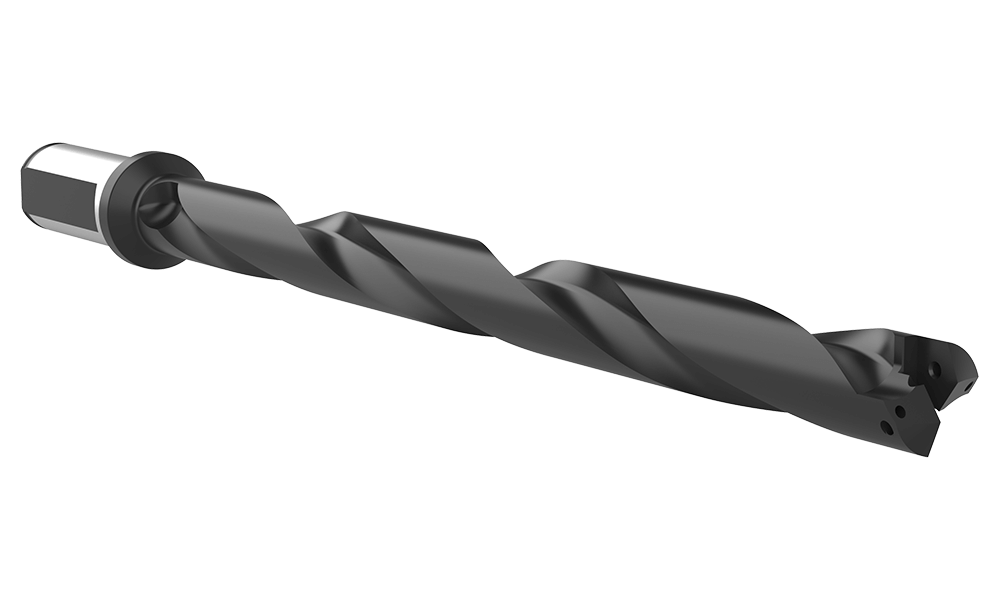

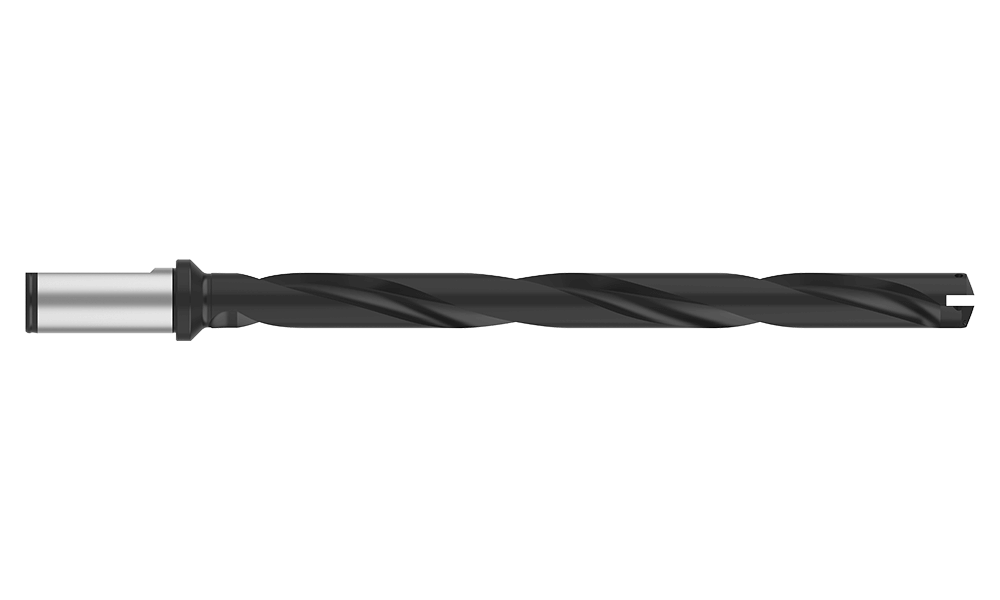

25015H-25FM
#1.5 TA EXT HLDR METR ST SHK
T-A® Holder





See Additional Technical Information

Product Specifications
Series1
Sub-Series.5
Minimum diameter mm21.83
Maximum diameter mm24.40
Length TypeExtended
Flute TypeHelical
Overall length mm363.2
Tool Reference Length mm310.7
Body length mm307.2
Drill depth mm286.8
Shank typeFlanged
Shank diameter mm25
Shank length mm56.0
Pipe tap rear inch1/8
Pipe tap rear mm1/8 BSPT
Deep Hole GuidelinesYes
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose


Related Items
739-IP9-1     (Qty: 0)
Replacement T-A® Screw
1.5 KIT (1) TORX PLUS, CL 4H
8IP-9     (Qty: 0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-9
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)1.83
CategoryStocked
