| Series | 2 |
| Minimum diameter inch | 1.0000 |
| Maximum diameter inch | 1.3809 |
| Length Type | Extended |
| Flute Type | Helical |
| Overall length inch | 14.230 |
| Tool Reference Length inch | 9.506 |
| Body length inch | 9.355 |
| Drill depth inch | 6.772 |
| Shank type | Morse Taper (SS) |
| Shank diameter inch | #4 MT |
| Coolant Inlet Style Rear | Through Tang Coolant |
| Coolant Inlet Style Side | Through Shank Coolant |
| Deep Hole Guidelines | Yes |

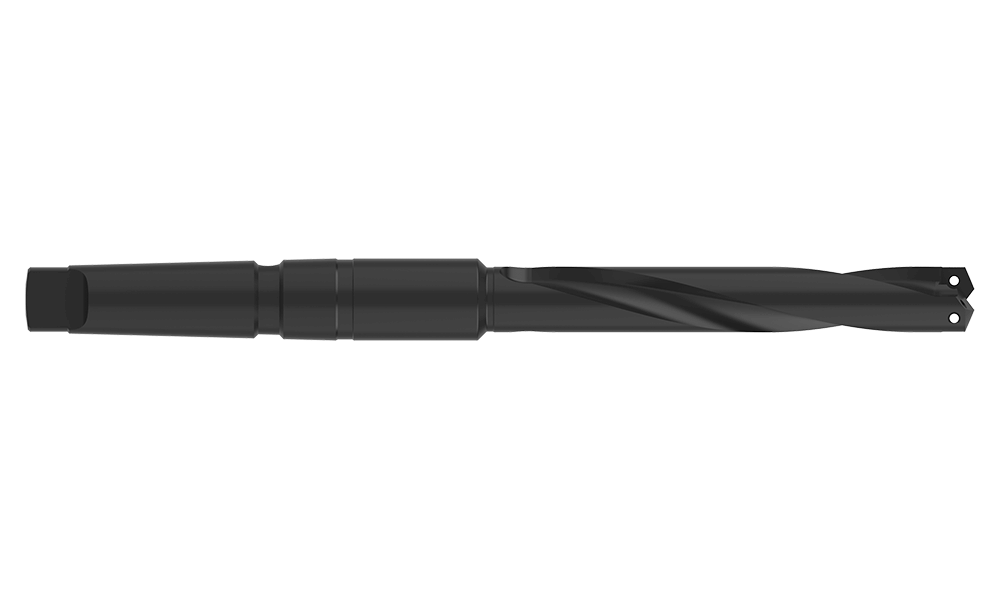

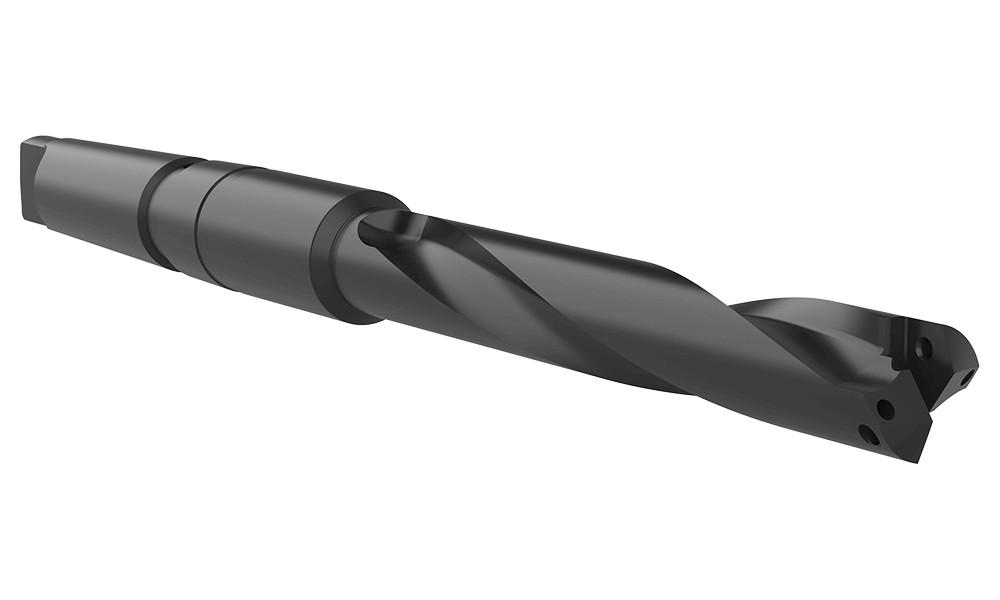

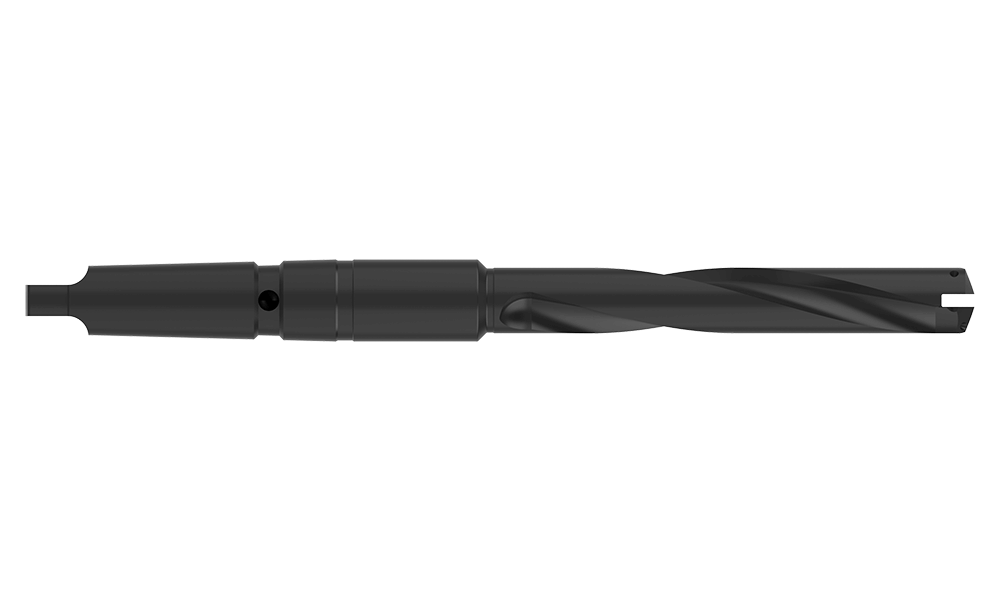

| Type of Product | Replaceable Drill Body |
| Product Application | Structural Steel |
