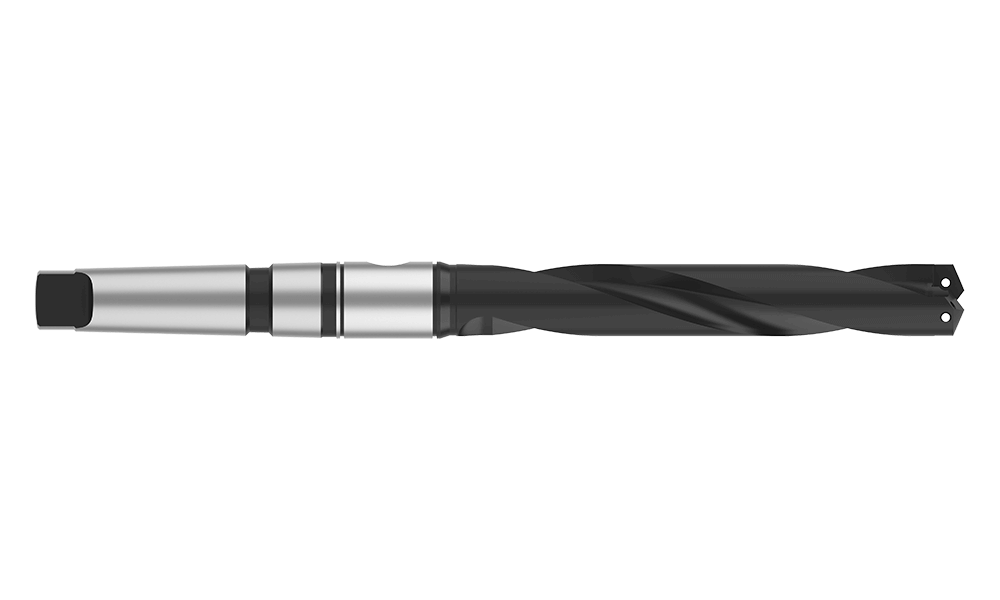

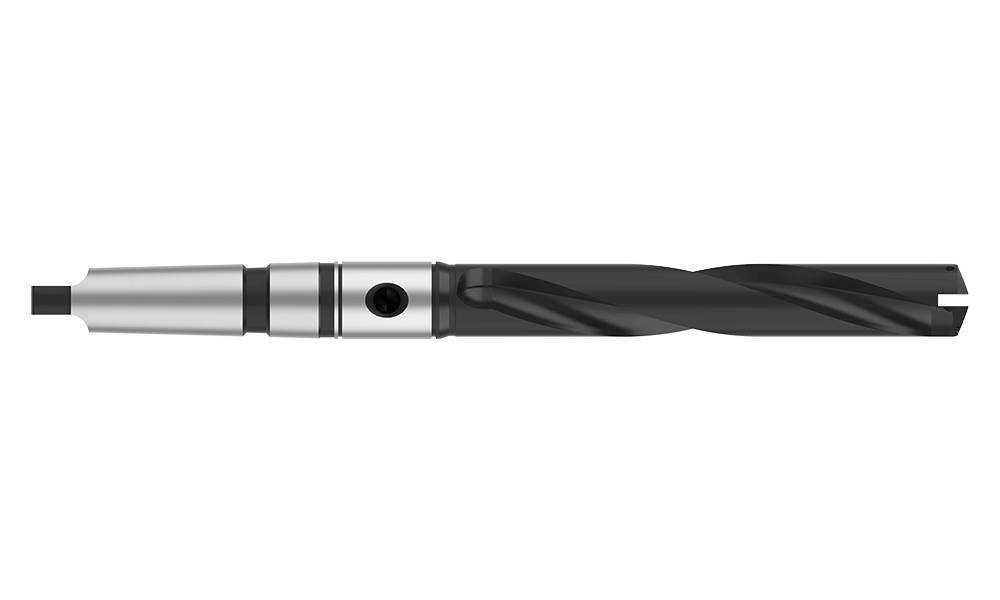

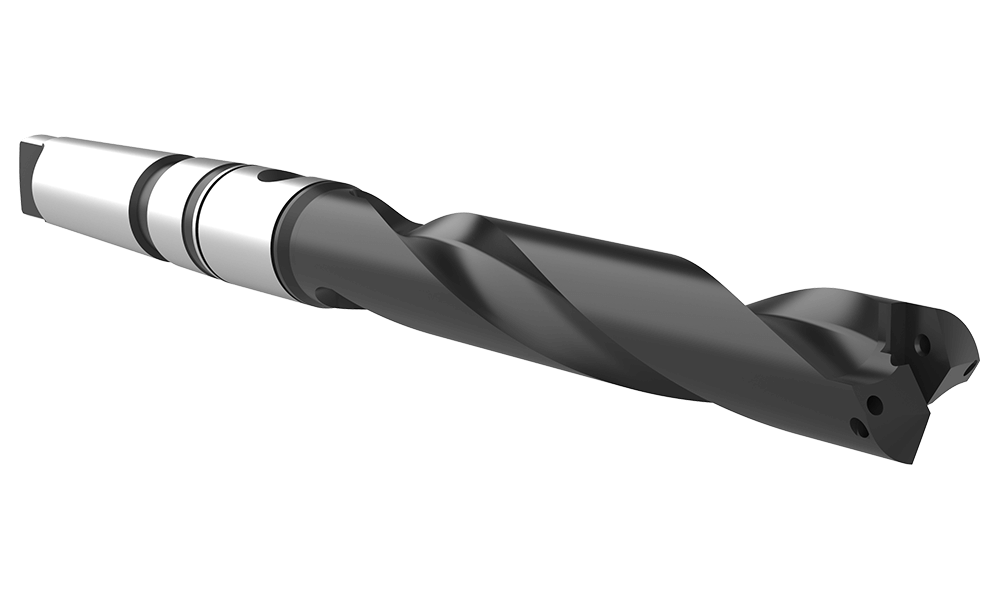

25025H-004M
#2.5 TA EXT HLDR METR TAPR SHK
T-A® Holder





See Additional Technical Information

Product Specifications
Series2
Sub-Series.5
Minimum diameter mm30.16
Maximum diameter mm35.06
Length TypeExtended
Flute TypeHelical
Overall length mm484.17
Tool Reference Length mm370.26
Body length mm317.50
Drill depth mm299.24
Shank typeMorse Taper
Shank diameter mm#4 MT ISO
Pipe tap side inch1/4
Pipe tap side mm1/4 BSPT
Deep Hole GuidelinesYes
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)4.38
CategoryStocked
