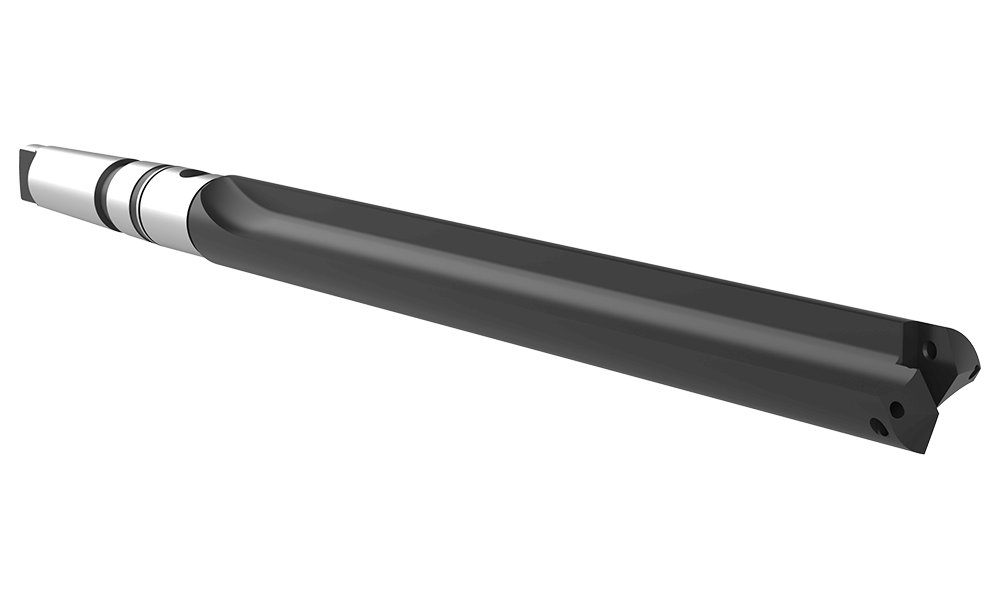

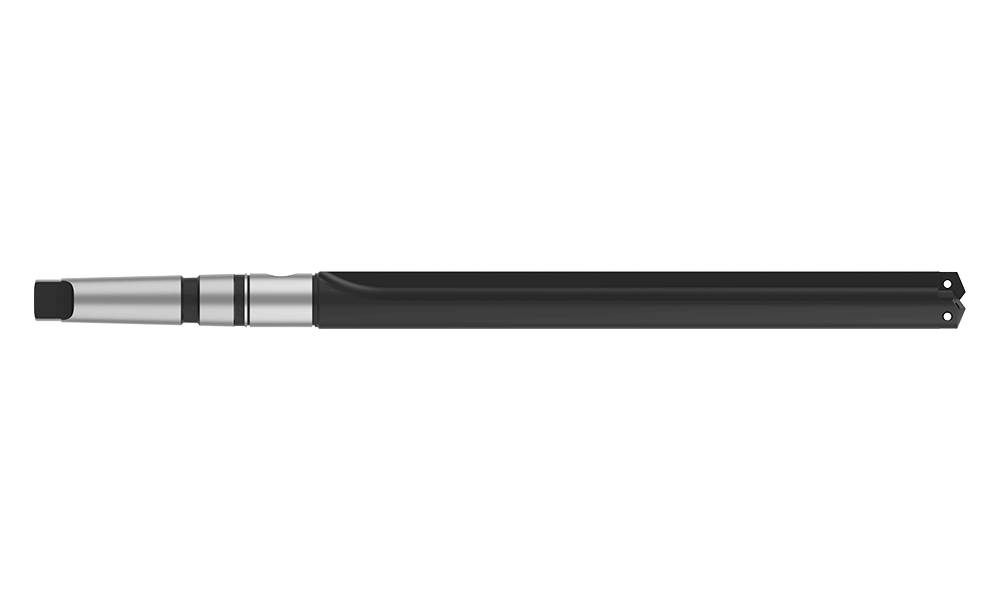

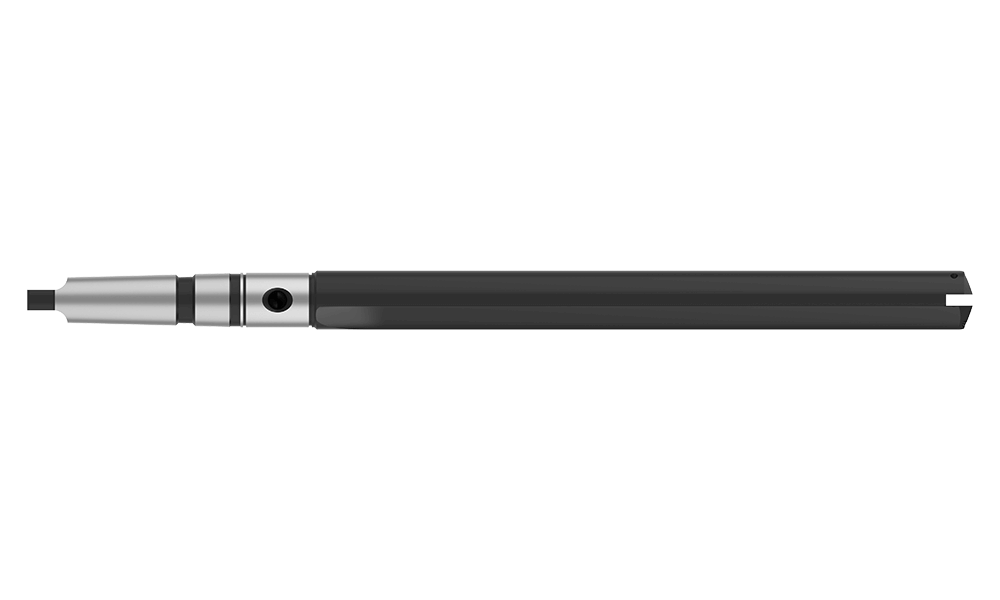

25030S-004M
#3 METRIC TA EXT LEN HLDR 4MT
T-A® Holder






Product Specifications
Series3
Minimum diameter mm34.37
Maximum diameter mm47.82
Length TypeExtended
Flute TypeStraight
Overall length mm547.67
Tool Reference Length mm434.95
Body length mm381.00
Drill depth mm338.58
Shank typeMorse Taper
Shank diameter mm#4 MT ISO
Pipe tap side inch1/4
Pipe tap side mm1/4 BSPT
Deep Hole GuidelinesYes
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)5.97
CategoryStocked
