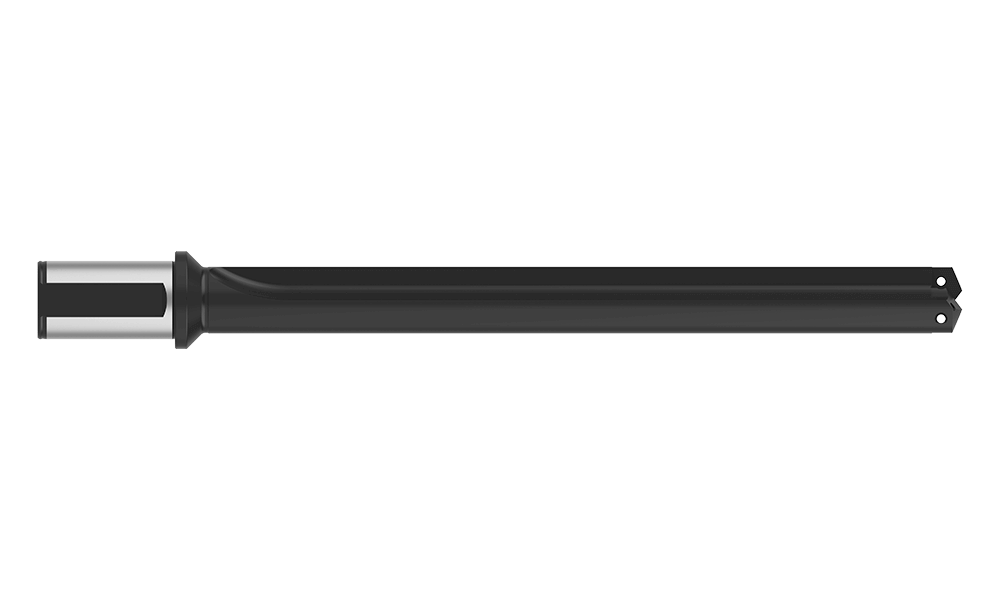

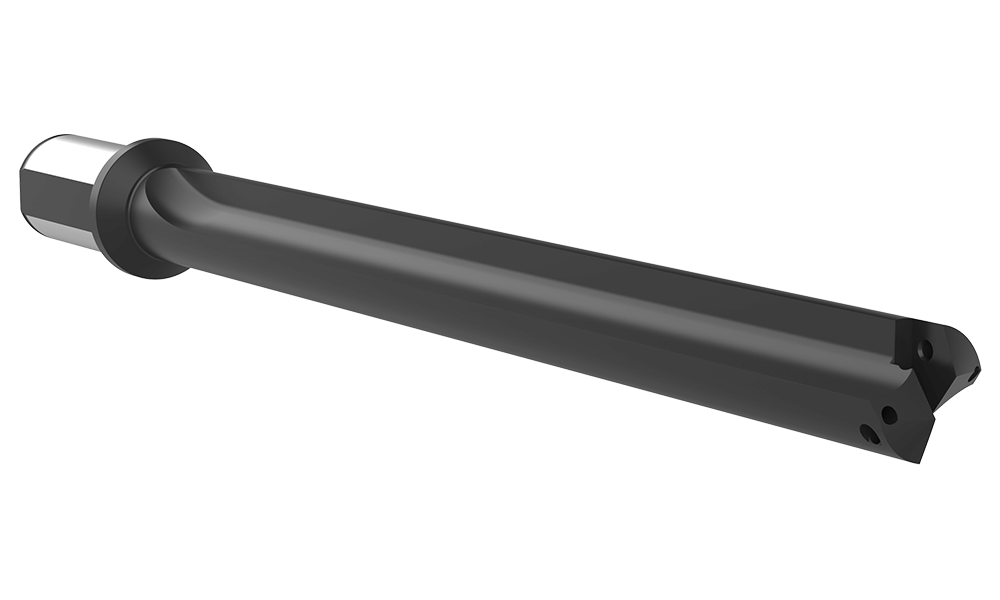

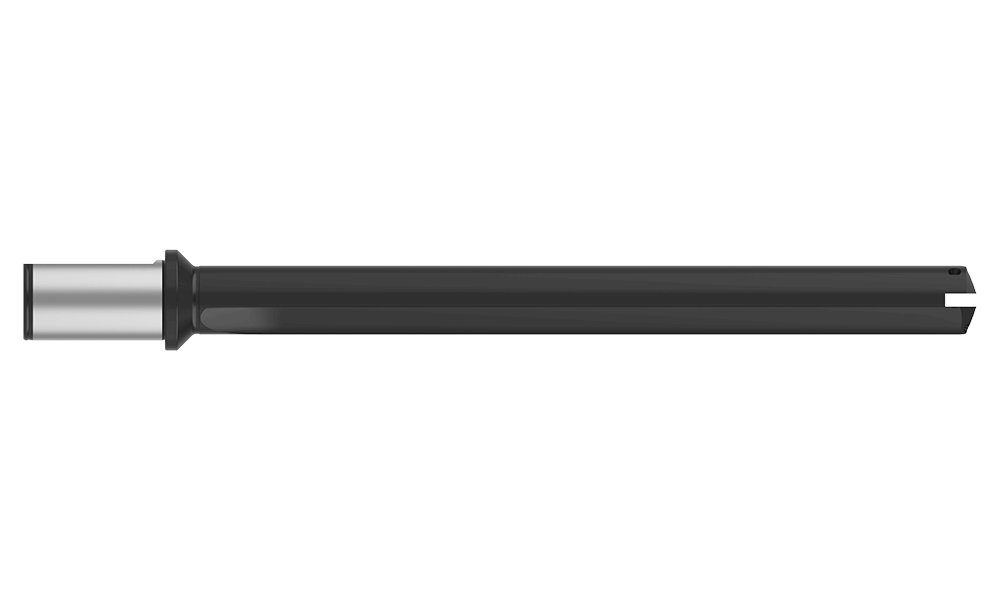

25030S-40FM
#3 TA EXT HLDR METR ST SHK
T-A® Holder





See Additional Technical Information

Product Specifications
Series3
Minimum diameter mm34.37
Maximum diameter mm47.82
Length TypeExtended
Flute TypeStraight
Overall length mm471.65
Tool Reference Length mm406.40
Body length mm401.65
Drill depth mm343.20
Shank typeFlanged
Shank diameter mm40
Shank length mm70.0
Pipe tap rear inch1/4
Pipe tap rear mm1/4 BSPT
Deep Hole GuidelinesYes
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)6.12
CategoryStocked
