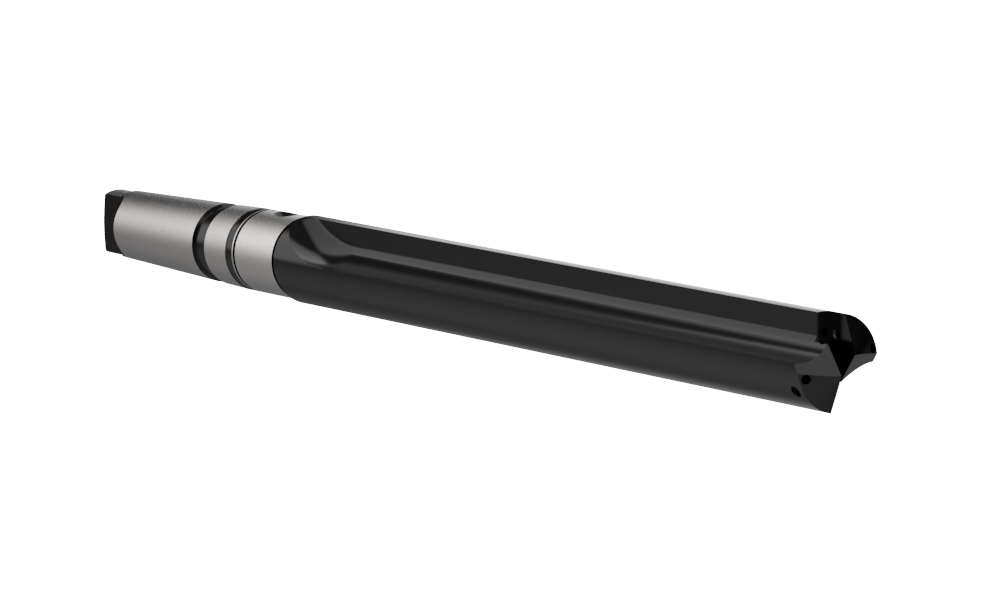

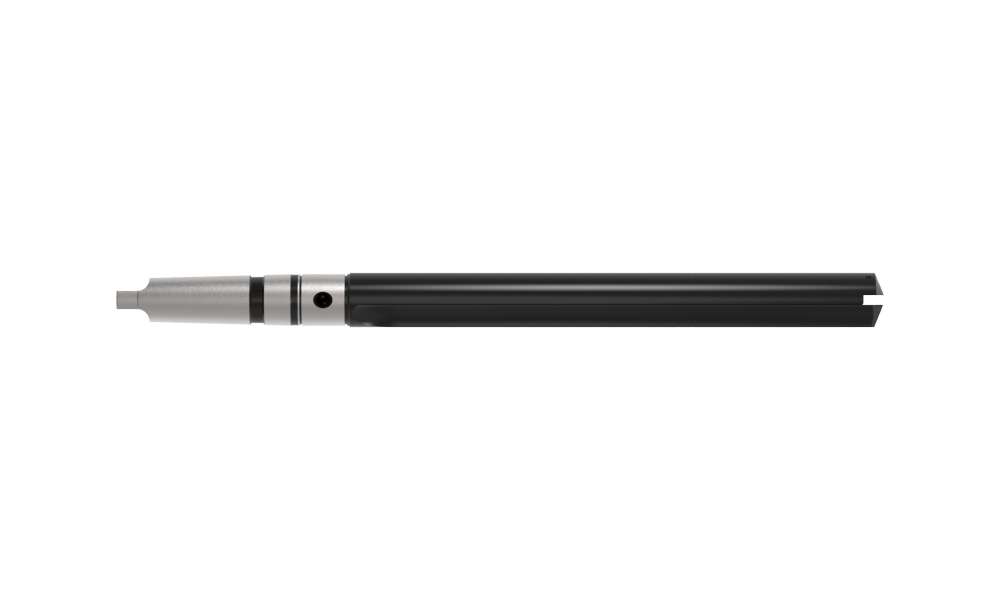

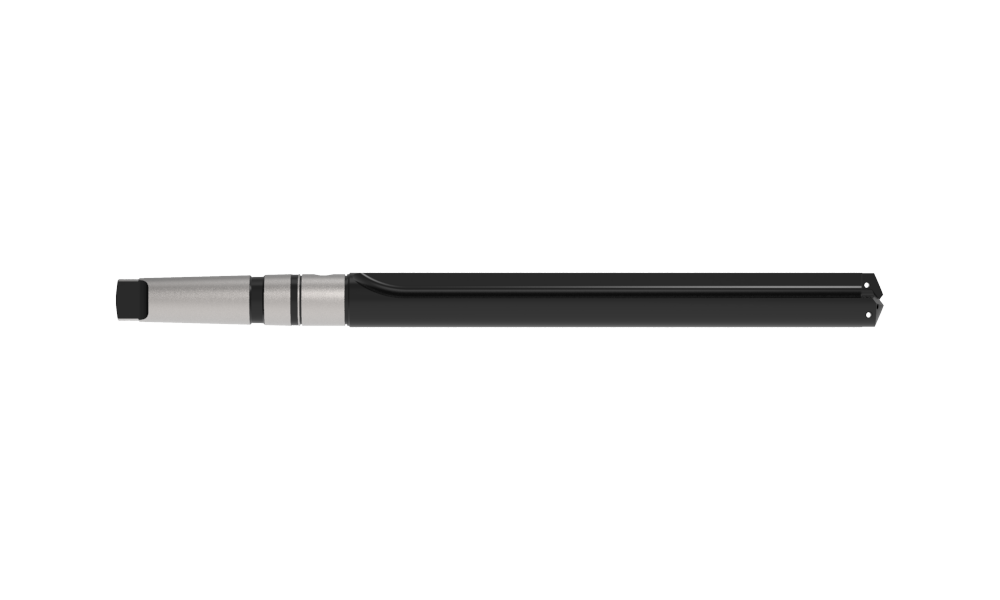

25040S-005M
#4 METRIC TA EXT LEN HLDR 5MT
T-A® Holder






Product Specifications
Series4
Minimum diameter mm46.99
Maximum diameter mm65.30
Length TypeExtended
Flute TypeStraight
Overall length mm655.62
Tool Reference Length mm511.15
Body length mm457.20
Drill depth mm409.37
Shank typeMorse Taper
Shank diameter mm#5 MT ISO
Pipe tap side inch1/4
Pipe tap side mm1/4 BSPT
Deep Hole GuidelinesYes
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)13.81
CategoryStocked
