| Series | 4 |
| Minimum diameter inch | 1.8500 |
| Maximum diameter inch | 2.5709 |
| Length Type | Extended |
| Flute Type | Straight |
| Overall length inch | 22.000 |
| Tool Reference Length inch | 18.187 |
| Body length inch | 18.000 |
| Drill depth inch | 16.418 |
| Shank type | Lathe |
| Shank diameter inch | 1-1/2 |
| Shank length inch | 4.000 |
| Pipe tap rear inch | 1/4 NPT |
| Pipe tap side inch | 1/4 NPT |
| Deep Hole Guidelines | Yes |

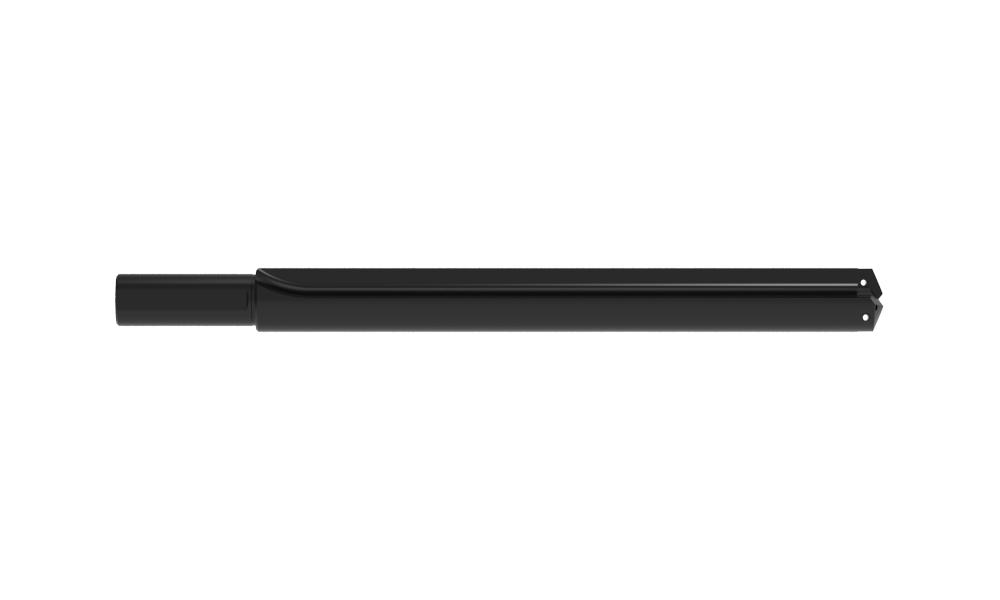

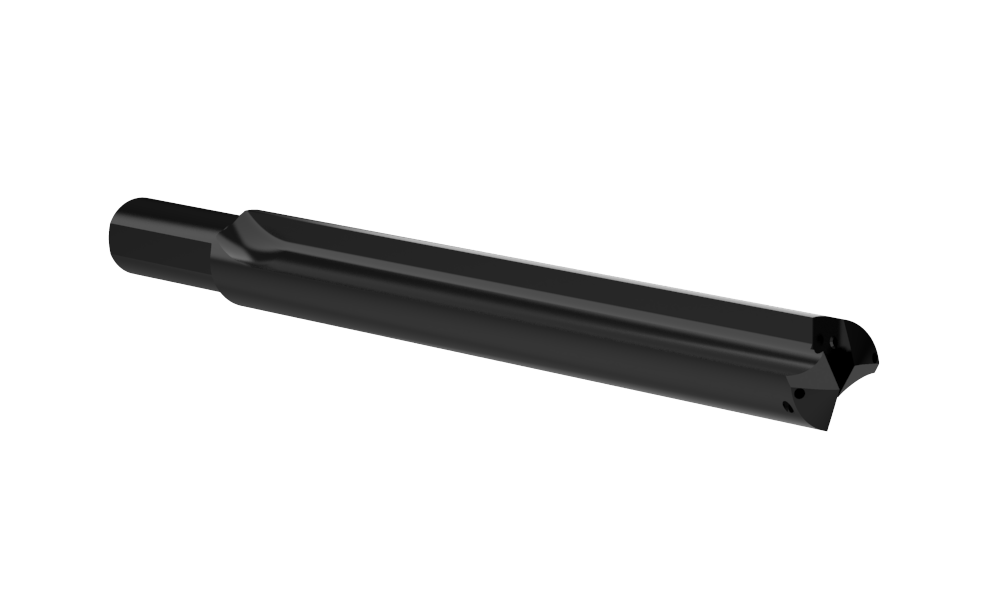

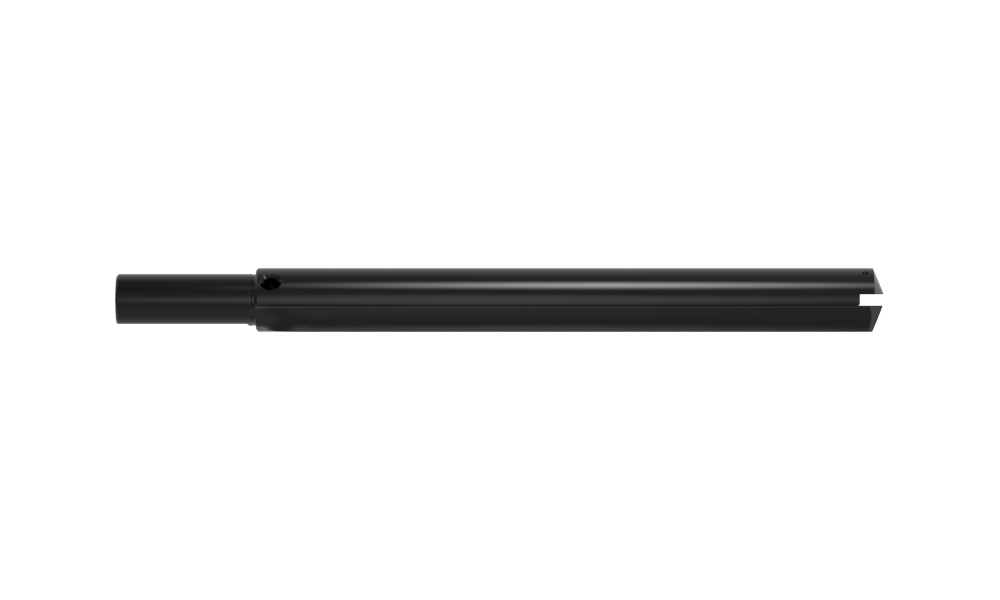

| Type of Product | Replaceable Drill Body |
| Product Application | General Purpose |
