| Series | 5 |
| Minimum diameter inch | 2.4560 |
| Maximum diameter inch | 3.5079 |
| Length Type | Extended |
| Flute Type | Straight |
| Overall length inch | 28.437 |
| Tool Reference Length inch | 22.812 |
| Body length inch | 20.000 |
| Drill depth inch | 17.938 |
| Shank type | Morse Taper |
| Shank diameter inch | #5 MT |
| Pipe tap side inch | 1/2 NPT |
| Deep Hole Guidelines | Yes |

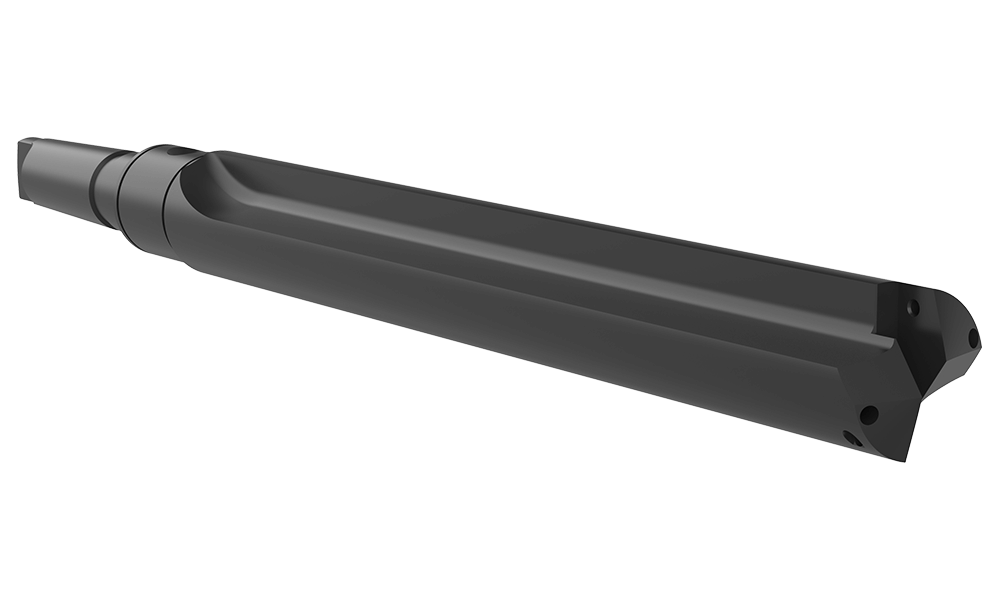

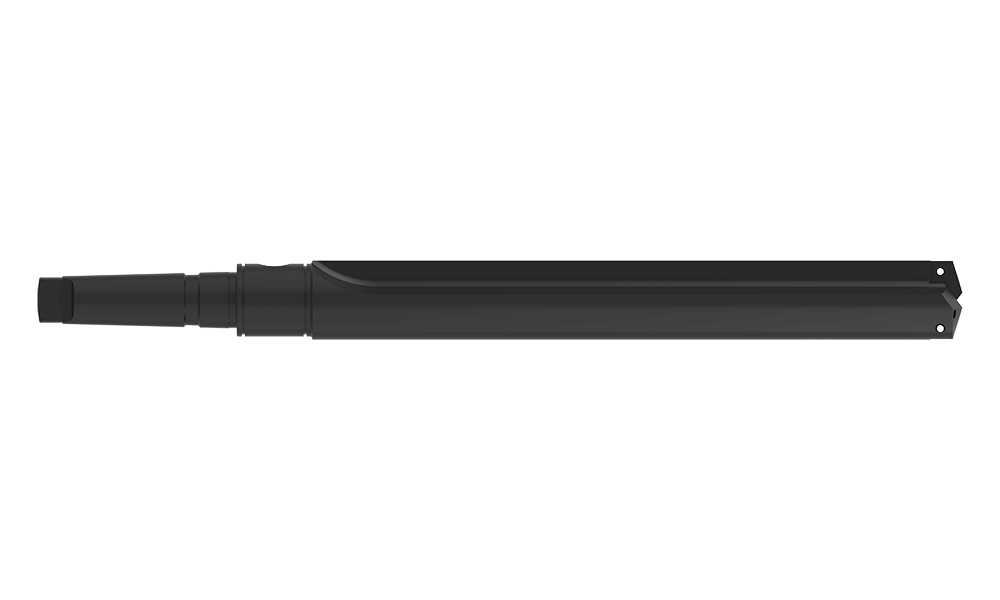

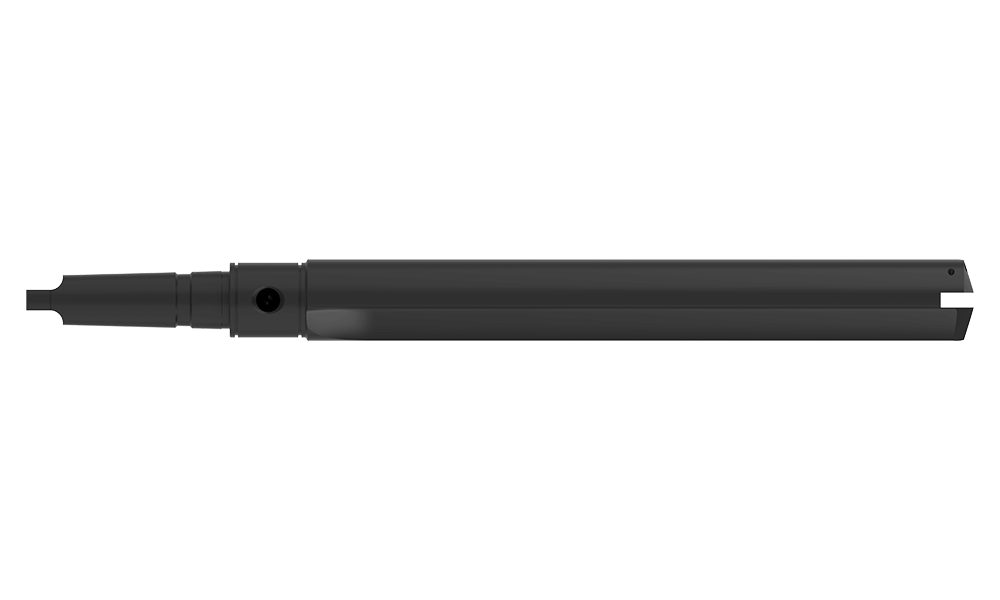

| Type of Product | Replaceable Drill Body |
| Product Application | General Purpose |
