25050S-50FM
#5 TA EXT HLDR METR ST SHK

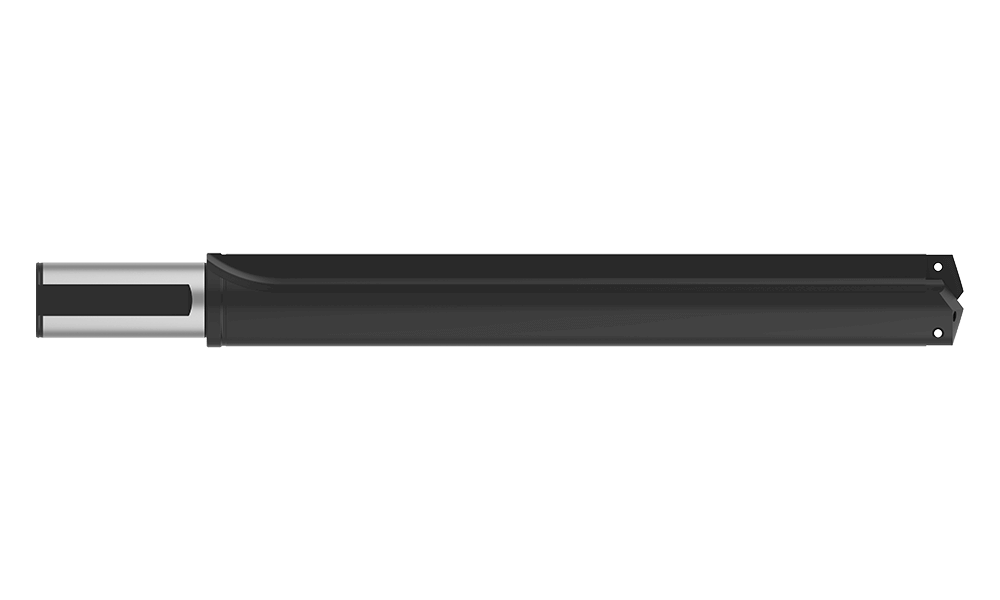

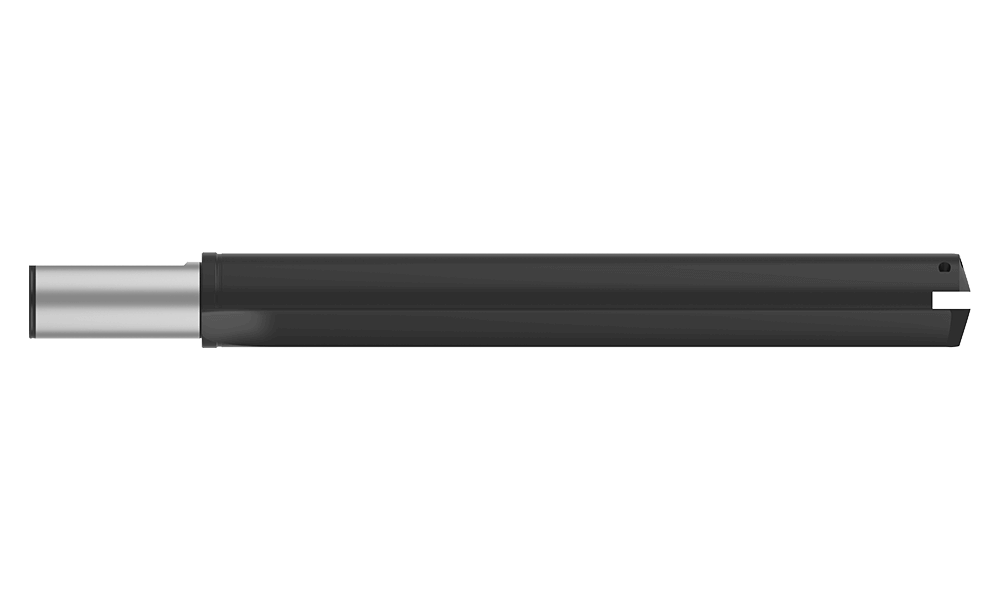

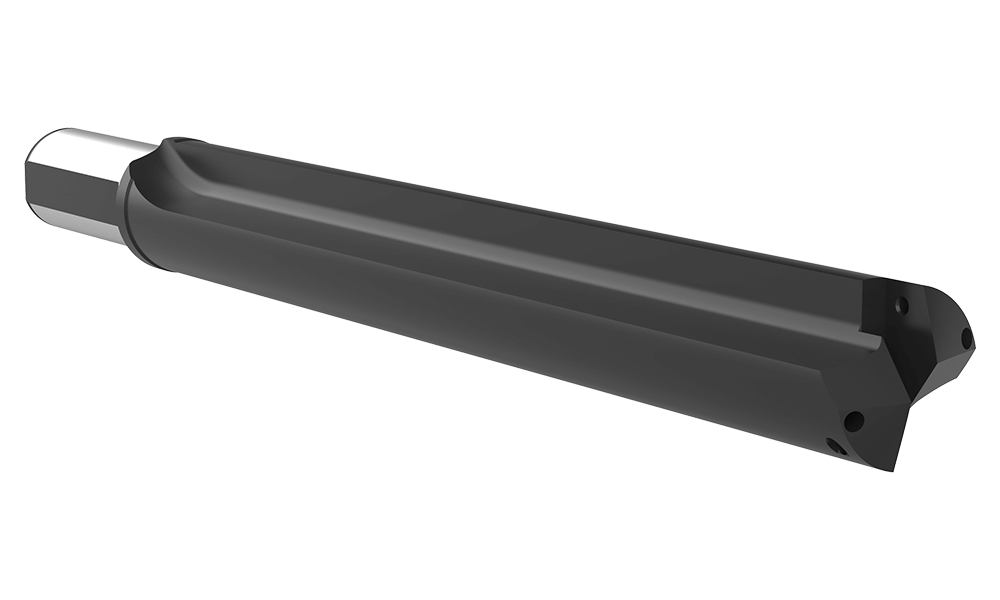

T-A® Holder






Product Specifications
Series5
Minimum diameter mm62.38
Maximum diameter mm89.09
Length TypeExtended
Flute TypeStraight
Overall length mm588.01
Tool Reference Length mm514.35
Body length mm508.00
Drill depth mm457.78
Shank typeFlanged
Shank diameter mm50
Shank length mm80.0
Pipe tap rear inch1/2
Pipe tap rear mm1/2 BSPT
Deep Hole GuidelinesYes
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)21.49
CategoryStocked
