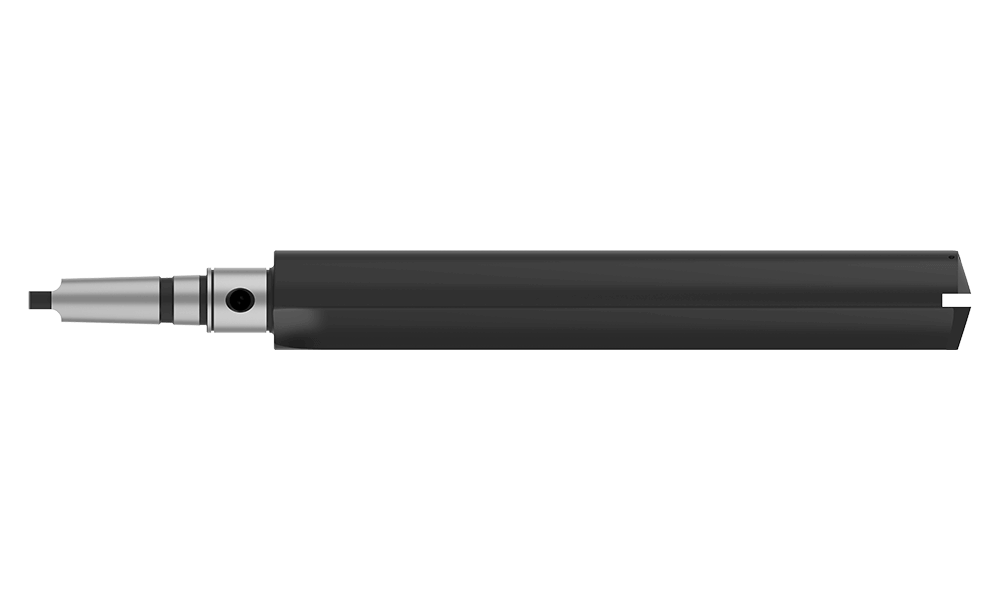

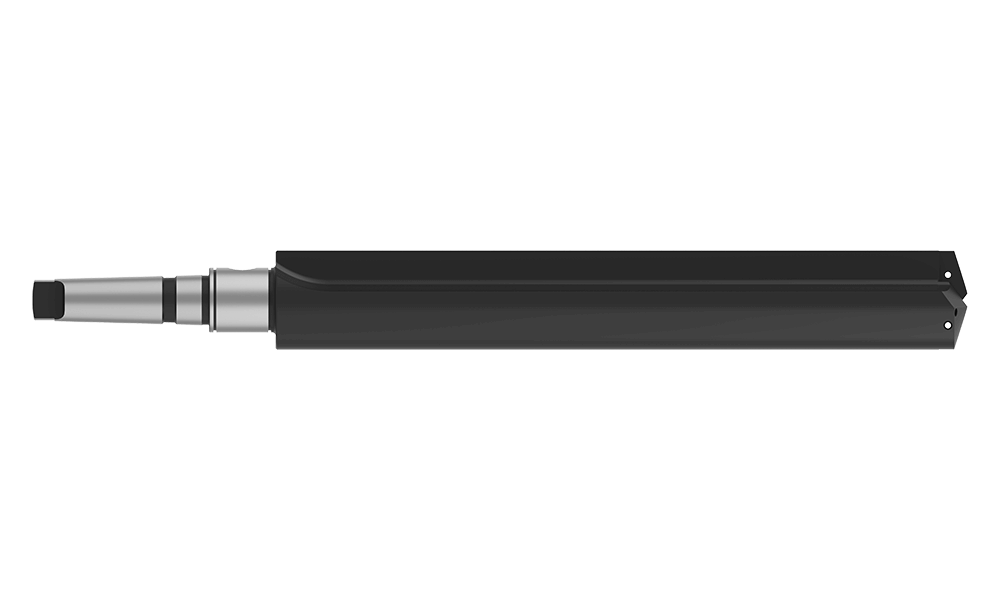

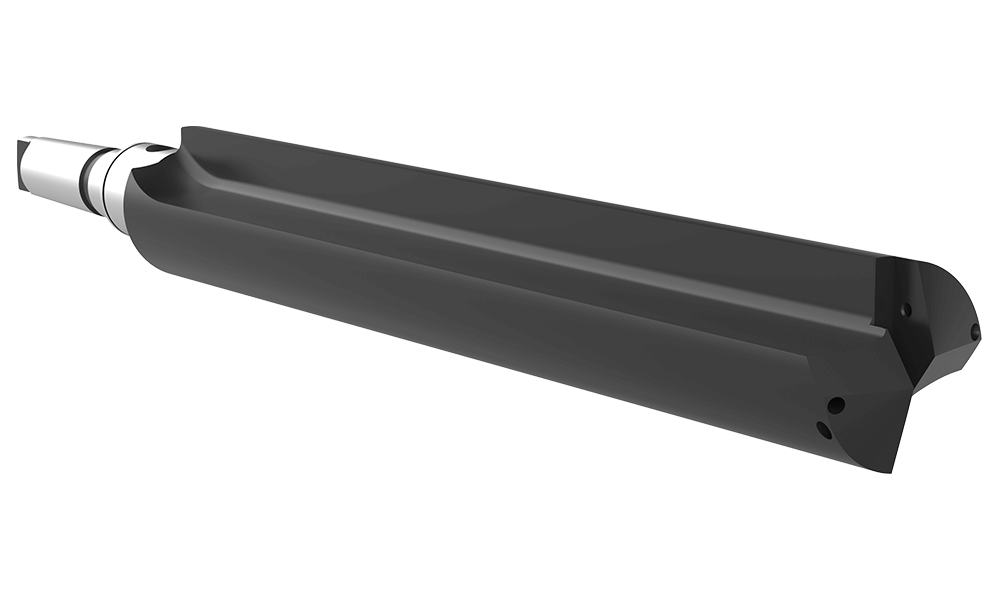

25070S-005M
#7 METRIC TA EXT LEN HLDR 5MT
T-A® Holder





See Additional Technical Information

Product Specifications
Series7
Minimum diameter mm89.10
Maximum diameter mm114.48
Length TypeExtended
Flute TypeStraight
Overall length mm823.90
Tool Reference Length mm681.02
Body length mm609.60
Drill depth mm561.34
Shank typeMorse Taper
Shank diameter mm#5 MT ISO
Pipe tap side inch1/2
Pipe tap side mm1/2 BSPT
Deep Hole GuidelinesYes
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)48.82
CategoryStocked
