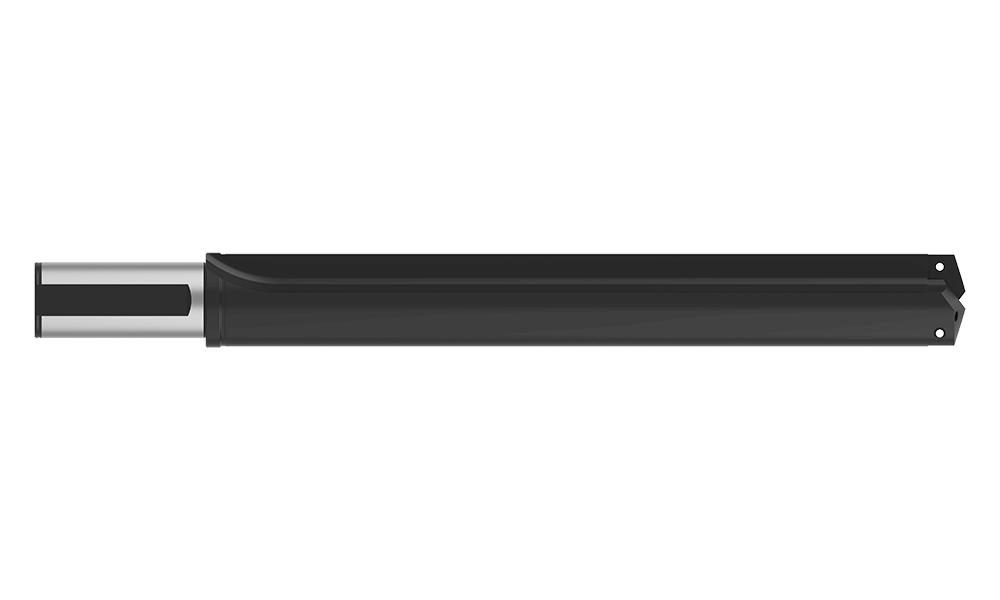

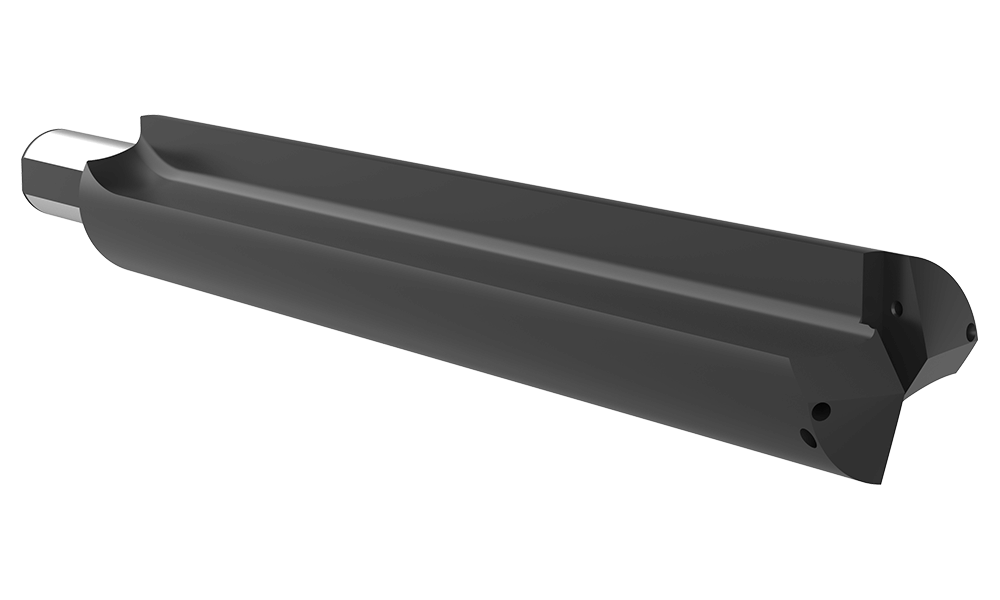

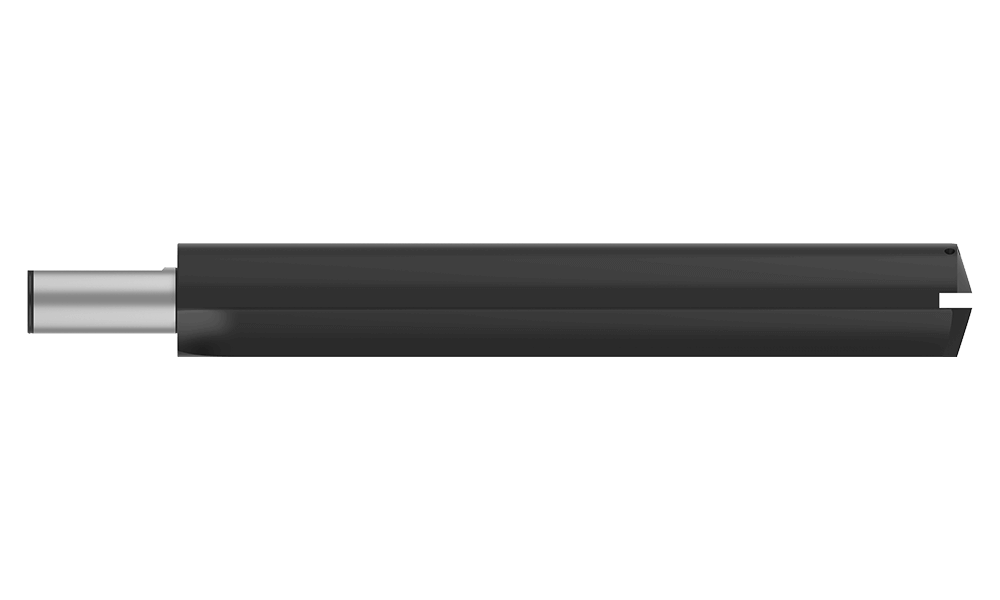

25070S-50FM
#7 TA EXT HLDR METR ST SHK
T-A® Holder






Product Specifications
Series7
Minimum diameter mm89.10
Maximum diameter mm114.48
Length TypeExtended
Flute TypeStraight
Overall length mm686.92
Tool Reference Length mm613.26
Body length mm606.91
Drill depth mm558.44
Shank typeFlanged
Shank diameter mm50
Shank length mm80.0
Pipe tap rear inch1/2
Pipe tap rear mm1/2 BSPT
Deep Hole GuidelinesYes
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)45.56
CategoryStocked
