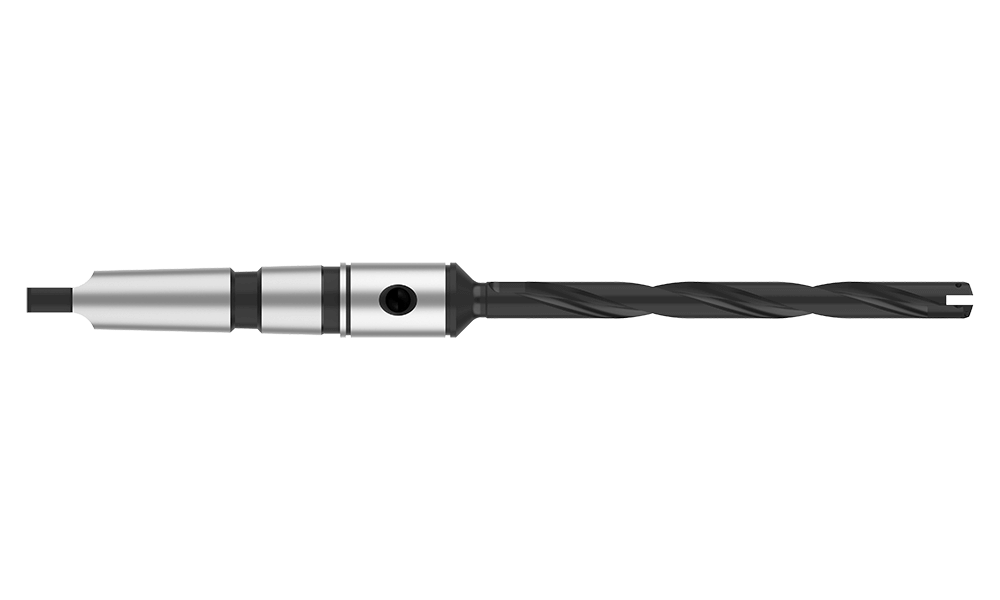

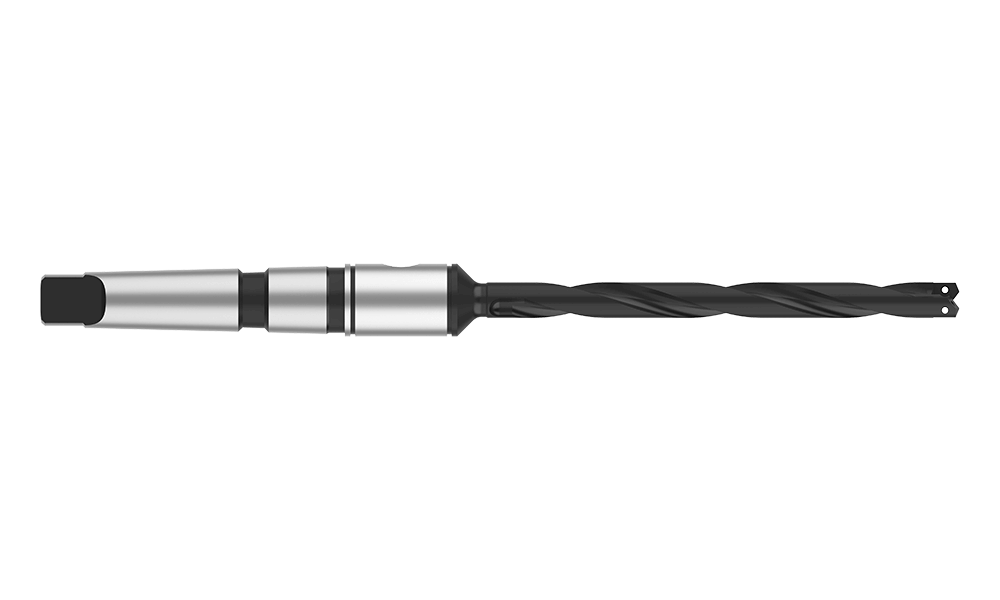

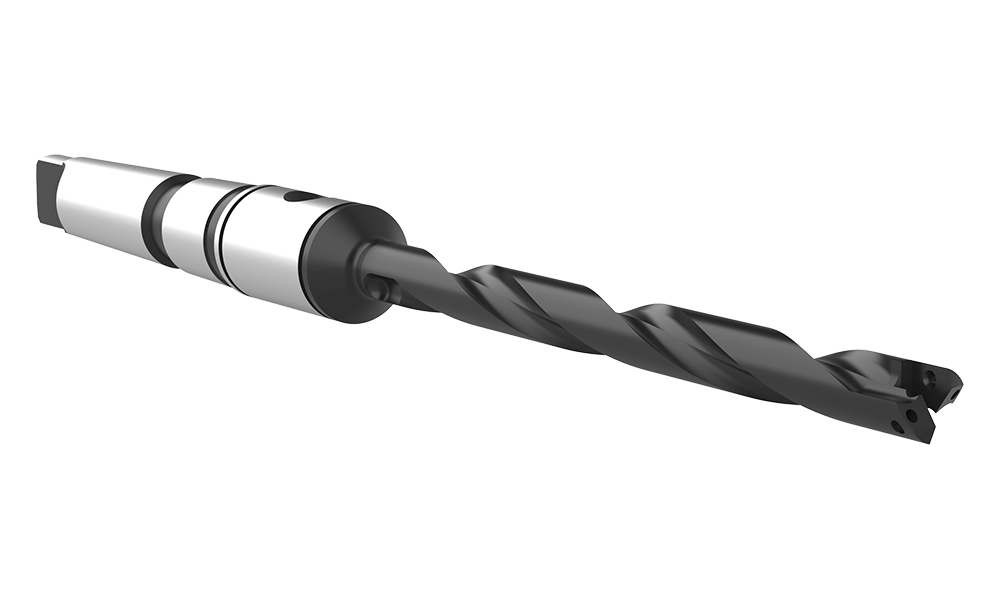

250Y0H-002M
#Y TA EXT HLDR METR TAPR SHK
T-A® Holder





See Additional Technical Information

Product Specifications
SeriesY
Minimum diameter mm9.50
Maximum diameter mm11.09
Length TypeExtended
Flute TypeHelical
Overall length mm239.70
Tool Reference Length mm167.36
Body length mm130.96
Drill depth mm119.86
Shank typeMorse Taper
Shank diameter mm#2 MT ISO
Pipe tap side inch1/16
Pipe tap side mm1/16 BSPT
Deep Hole GuidelinesYes
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)0.5
CategoryStocked
