250Y0H-075F
T-A® Replaceable Drill Body: 0.3740" - 0.4369", Extended, Flanged Shank
T-A® Holder

Add to cart image Add to list image







See Additional Technical Information
Default Image

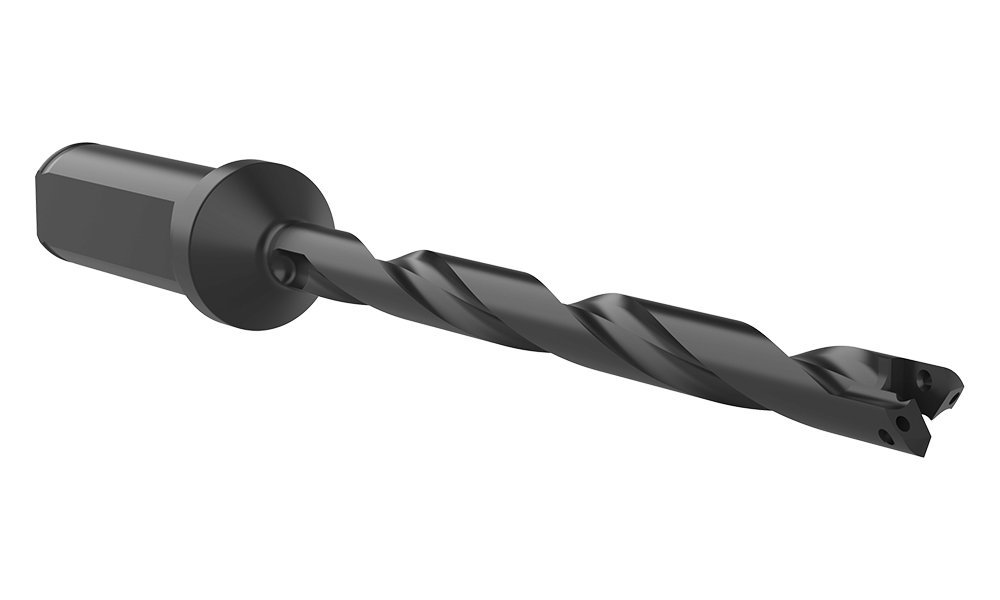

Angle

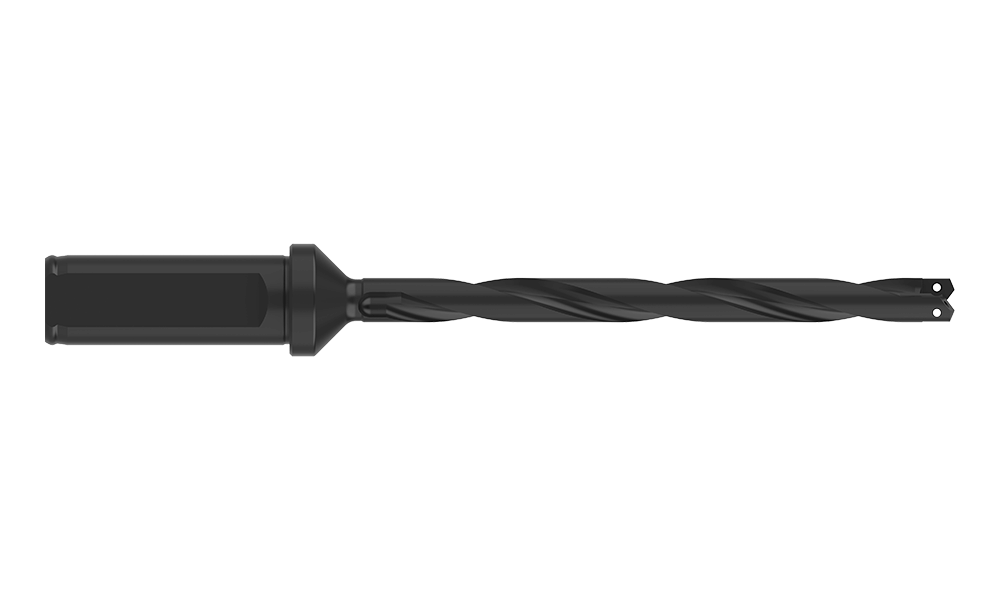

Front

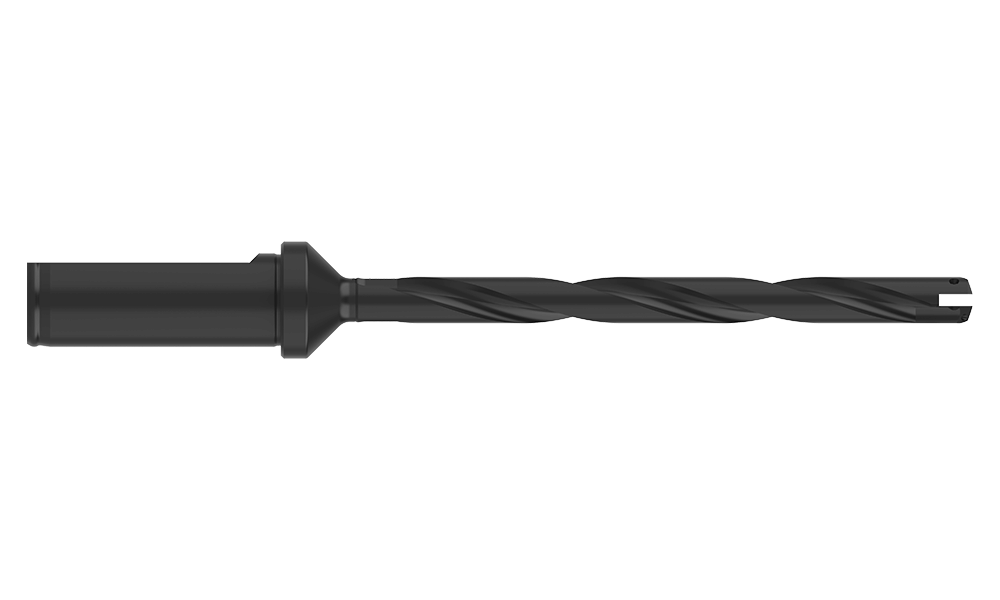

Side
Product Specifications
Series Y
Minimum Diameter (inch) 0.3740
Maximum Diameter (inch) 0.4369
Length Type Extended
Flute Type Helical
Overall Length (inch) 7.561
Tool Reference Length (inch) 5.621
Body Length (inch) 5.531
Drill Depth (inch) 4.860
Shank Type Flanged
Shank Diameter (inch) 3/4
Shank Length (inch) 2.030
Pipe Tap Rear (inch) 1/8 NPT
Deep Hole Guidelines (Yes/No) Yes
Type of Product Replaceable Drill Body
Product Application General Purpose
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 724-IP7-1 (Qty0)
Replacement T-A® Screw
Y KIT (1)TORX PLUS, CLASS 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-7 (Qty0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-7
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.41
Weight in kg (each) 0.19
Category Stocked
