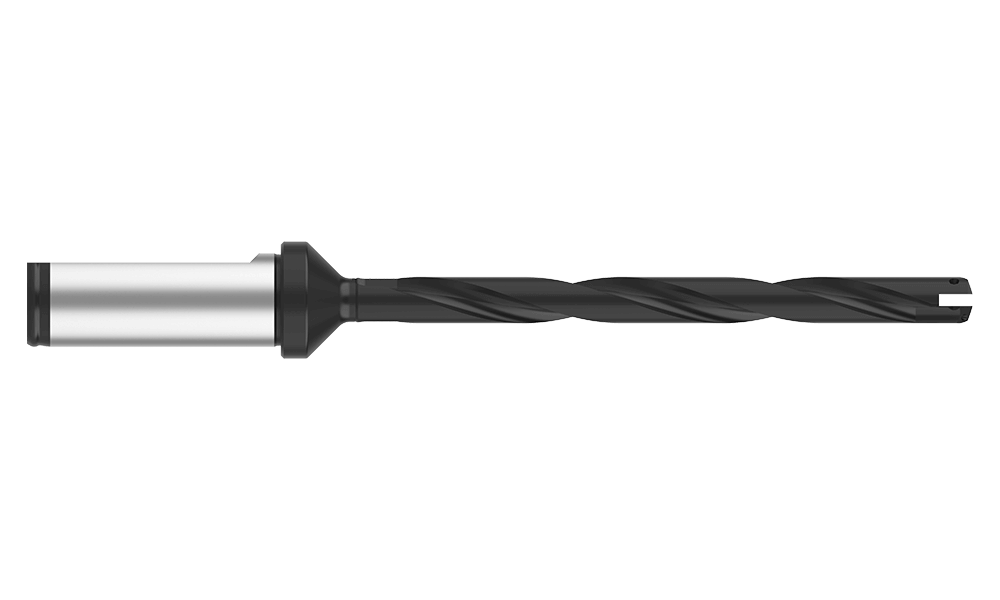

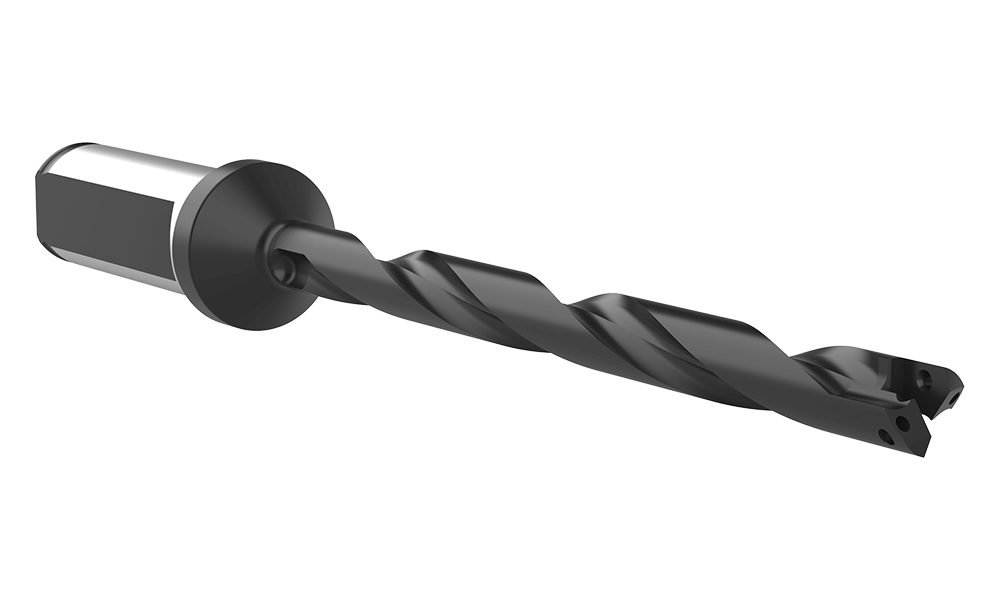

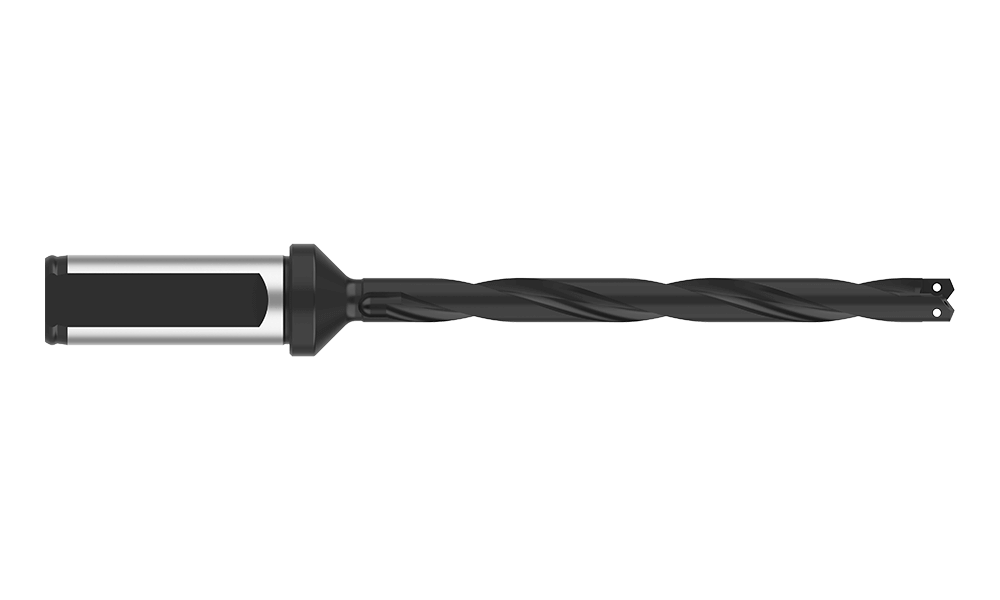

250Y0H-20FM
#Y TA EXT HLDR METR ST SHK
T-A® Holder





See Additional Technical Information

Product Specifications
SeriesY
Minimum diameter mm9.50
Maximum diameter mm11.09
Length TypeExtended
Flute TypeHelical
Overall length mm190.5
Tool Reference Length mm142.8
Body length mm140.5
Drill depth mm123.4
Shank typeFlanged
Shank diameter mm20
Shank length mm50.0
Pipe tap rear inch1/8
Pipe tap rear mm1/8 BSPT
Deep Hole GuidelinesYes
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose


Related Items
724-IP7-1     (Qty: 0)
Replacement T-A® Screw
Y KIT (1)TORX PLUS, CLASS 4H
8IP-7     (Qty: 0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-7
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)0.43
CategoryStocked
