250Z0H-002I
T-A® Replaceable Drill Body: 0.4370" - 0.5109", Extended, Morse Taper Shank
T-A® Holder

Add to cart image Add to list image







See Additional Technical Information
Default Image

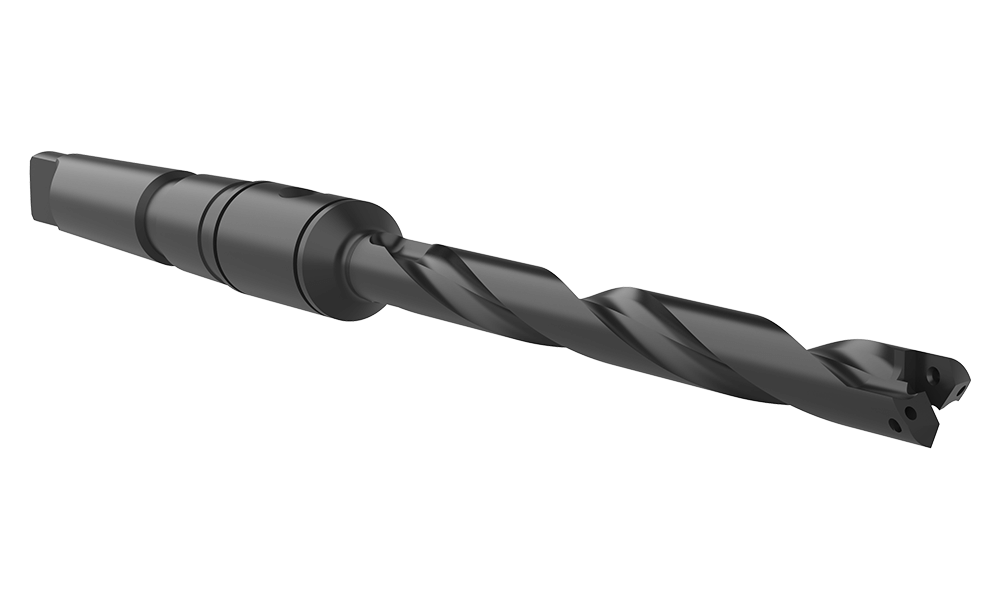

Angle

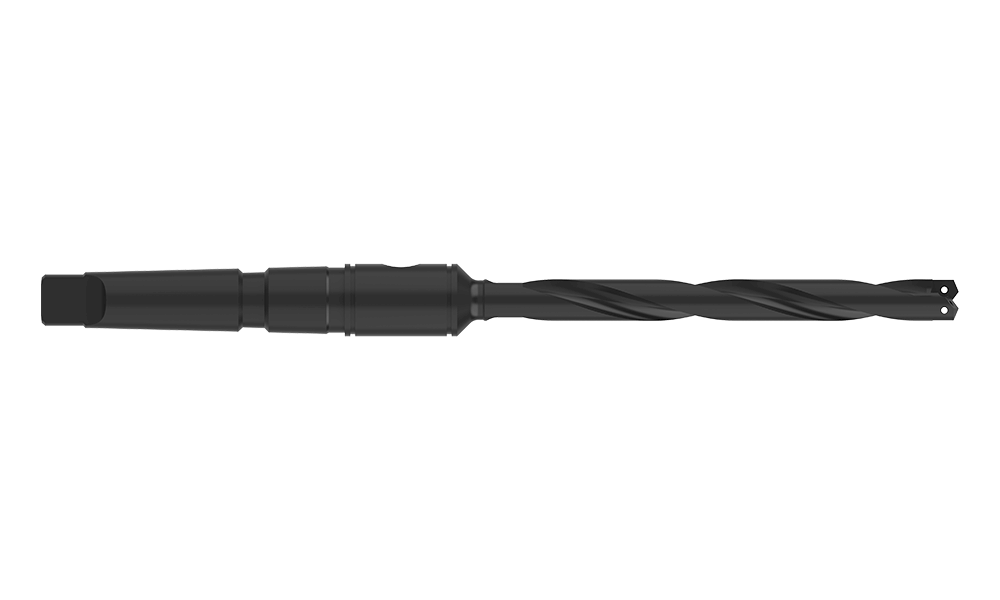

Front

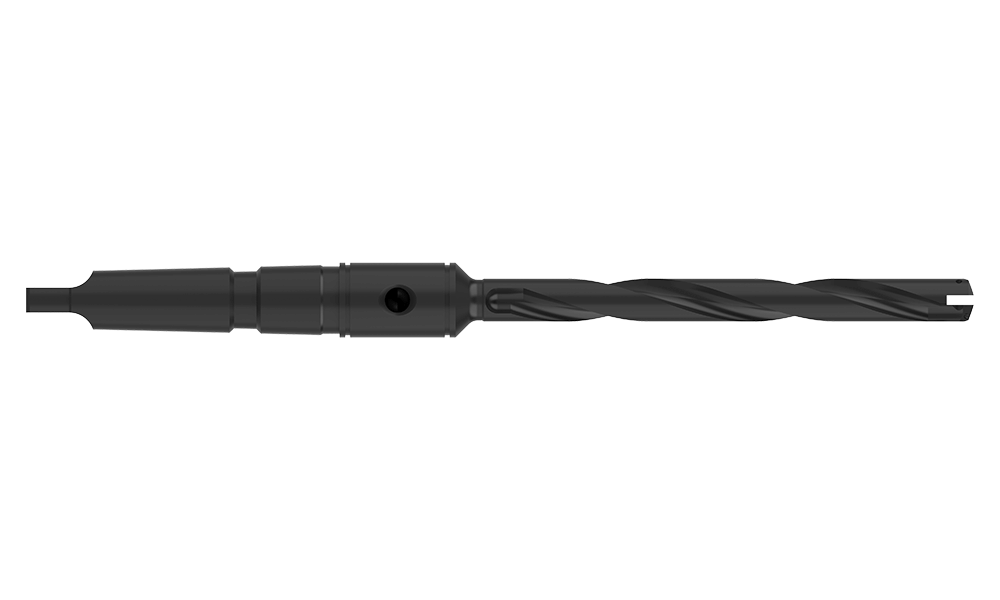

Side
Product Specifications
Series Z
Minimum Diameter (inch) 0.4370
Maximum Diameter (inch) 0.5109
Length Type Extended
Flute Type Helical
Overall Length (inch) 9.437
Tool Reference Length (inch) 6.589
Body Length (inch) 5.156
Drill Depth (inch) 4.733
Shank Type Morse Taper
Shank Diameter (inch) #2 MT
Pipe Tap Side (inch) 1/16 NPT
Deep Hole Guidelines (Yes/No) Yes
Type of Product Replaceable Drill Body
Product Application General Purpose
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7247-IP7-1 (Qty0)
Replacement T-A® Screw
Z KIT (1) TORX PLUS,CLASS 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-7 (Qty0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-7
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 0.54
Weight in kg (each) 0.25
Category Stocked
