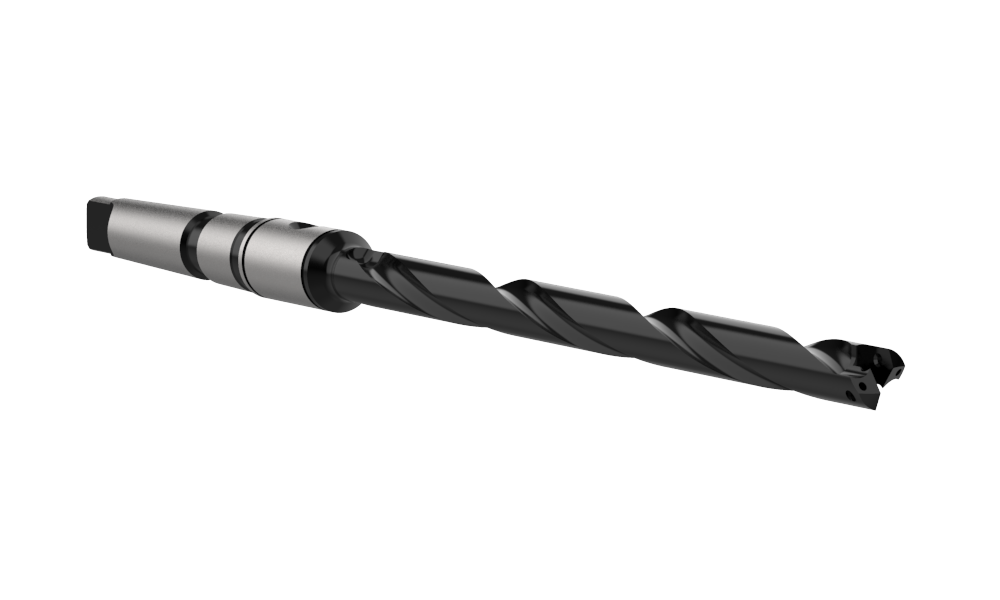

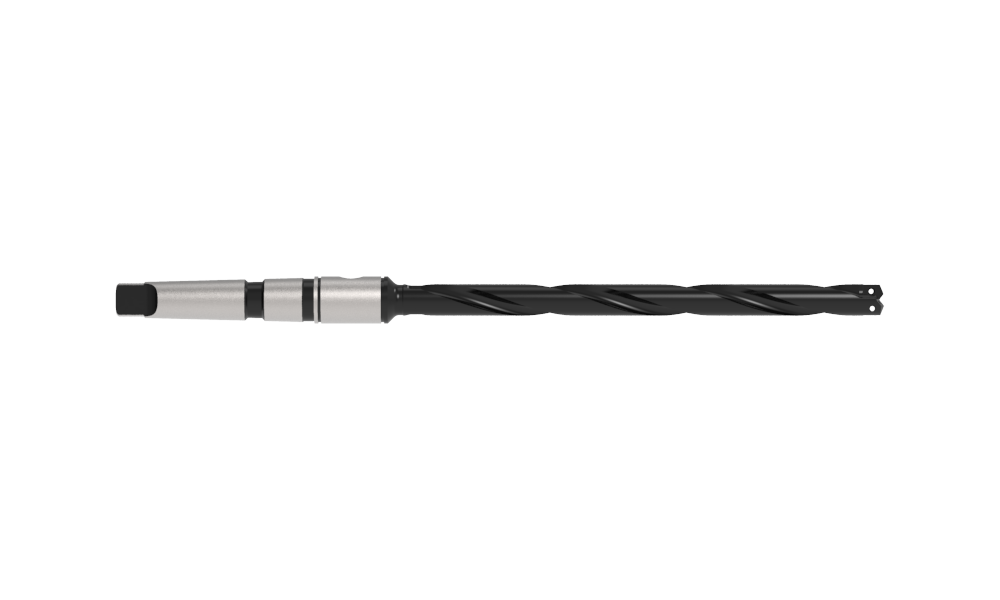

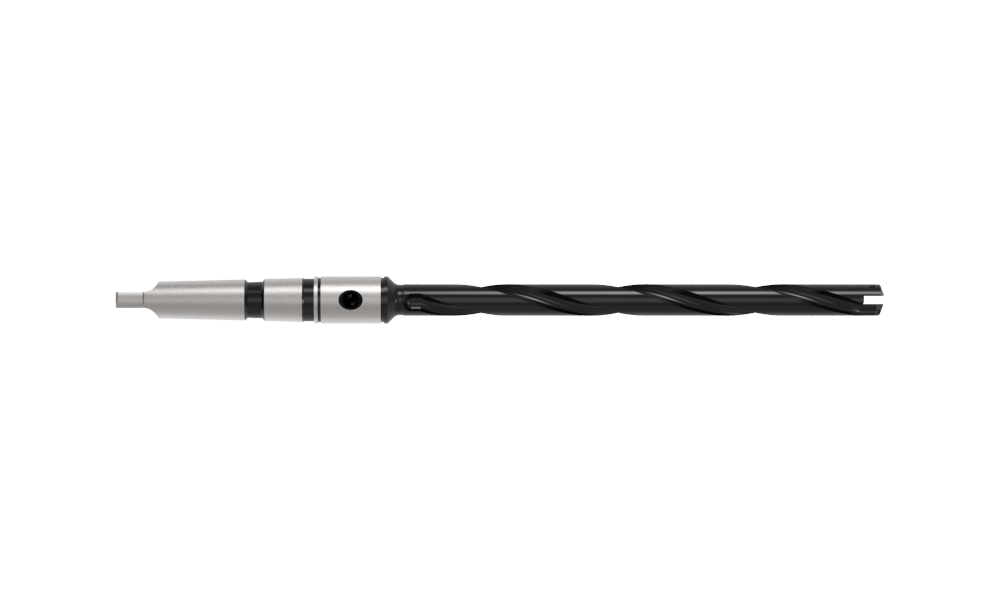

26000H-002M
#0 TA LONG HLDR METR TAPR SHK
T-A® Holder





See Additional Technical Information

Product Specifications
Series0
Minimum diameter mm12.98
Maximum diameter mm17.67
Length TypeLong
Flute TypeHelical
Overall length mm307.19
Tool Reference Length mm235.28
Body length mm198.45
Drill depth mm188.19
Shank typeMorse Taper
Shank diameter mm#2 MT ISO
Pipe tap side inch1/16
Pipe tap side mm1/16 BSPT
Deep Hole GuidelinesYes
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)0.69
CategoryStocked
