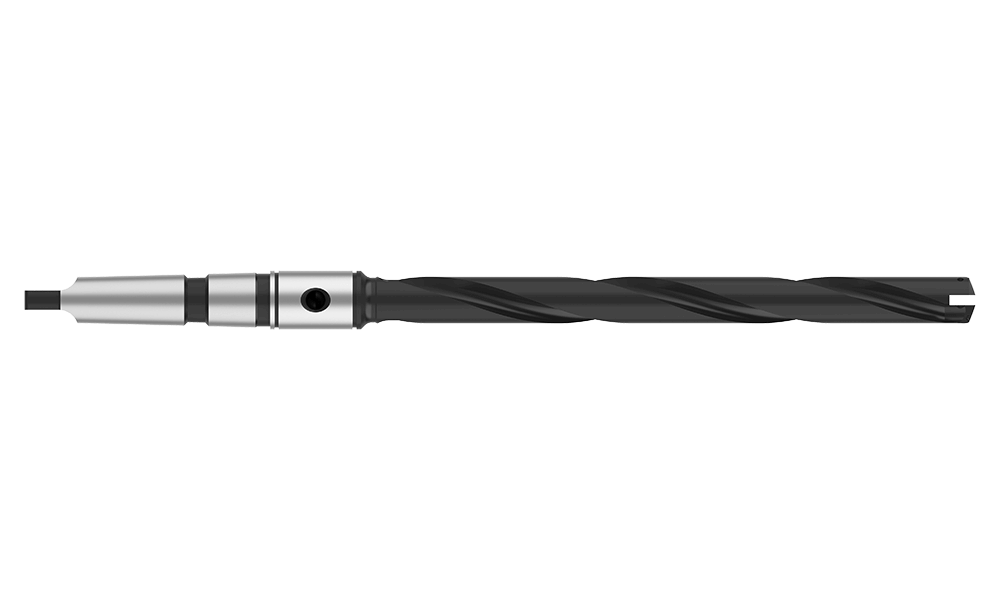

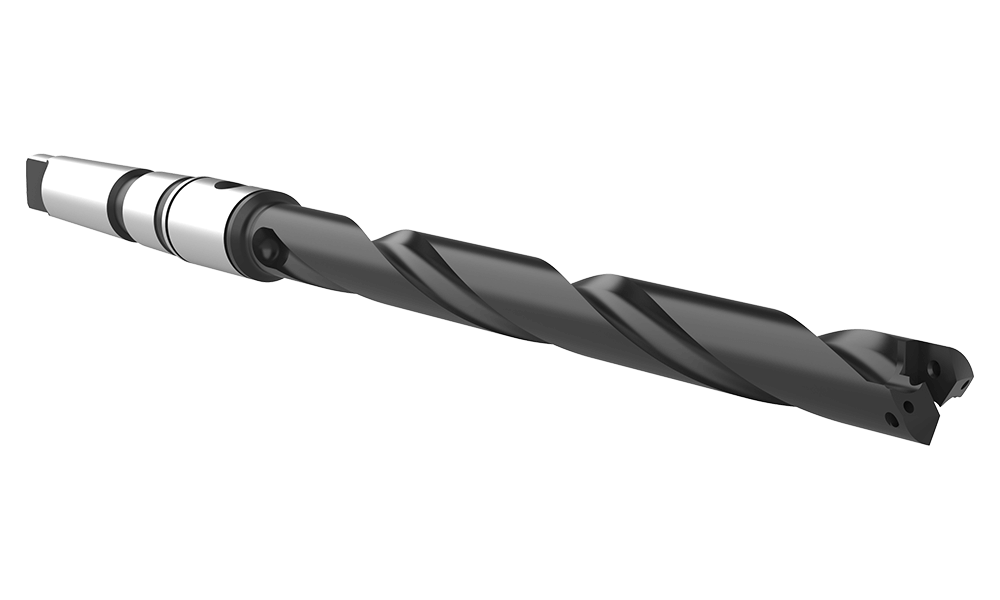

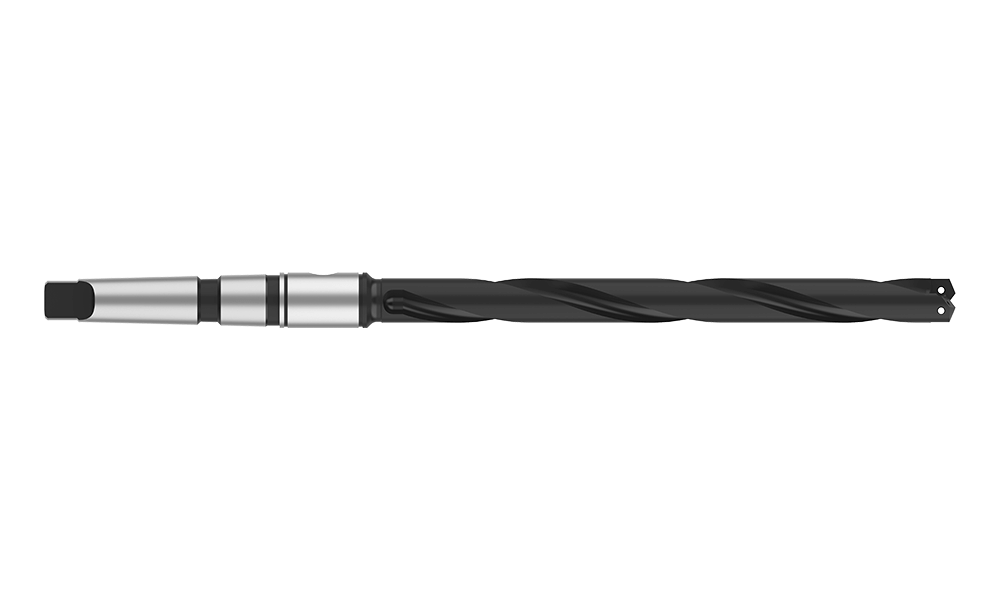

26005H-002M
#0.5 TA LONG HLDR METR TPR SHK
T-A® Holder






Product Specifications
Series0
Sub-Series.5
Minimum diameter mm15.48
Maximum diameter mm17.67
Length TypeLong
Flute TypeHelical
Overall length mm307.19
Tool Reference Length mm235.28
Body length mm198.45
Drill depth mm189.38
Shank typeMorse Taper
Shank diameter mm#2 MT ISO
Pipe tap side inch1/16
Pipe tap side mm1/16 BSPT
Deep Hole GuidelinesYes
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)0.8
CategoryStocked
