| Series | 0 |
| Sub-Series | .5 |
| Minimum diameter inch | 0.6094 |
| Maximum diameter inch | 0.6959 |
| Length Type | Long |
| Flute Type | Straight |
| Overall length inch | 10.188 |
| Tool Reference Length inch | 7.920 |
| Body length inch | 7.813 |
| Drill depth inch | 6.819 |
| Shank type | Lathe |
| Shank diameter inch | 3/4 |
| Shank length inch | 2.375 |
| Pipe tap rear inch | 1/8 NPT |
| Deep Hole Guidelines | Yes |

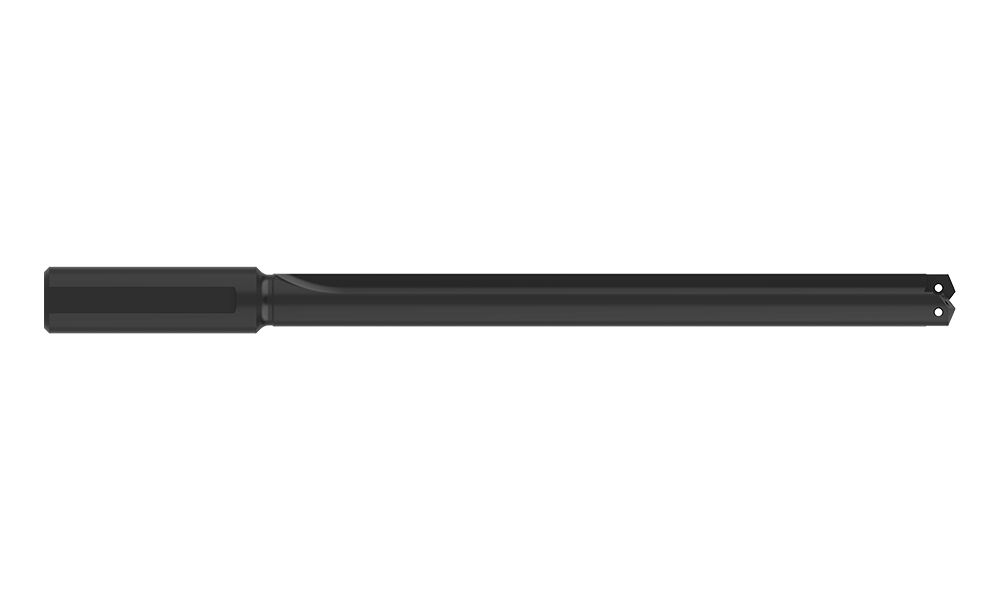

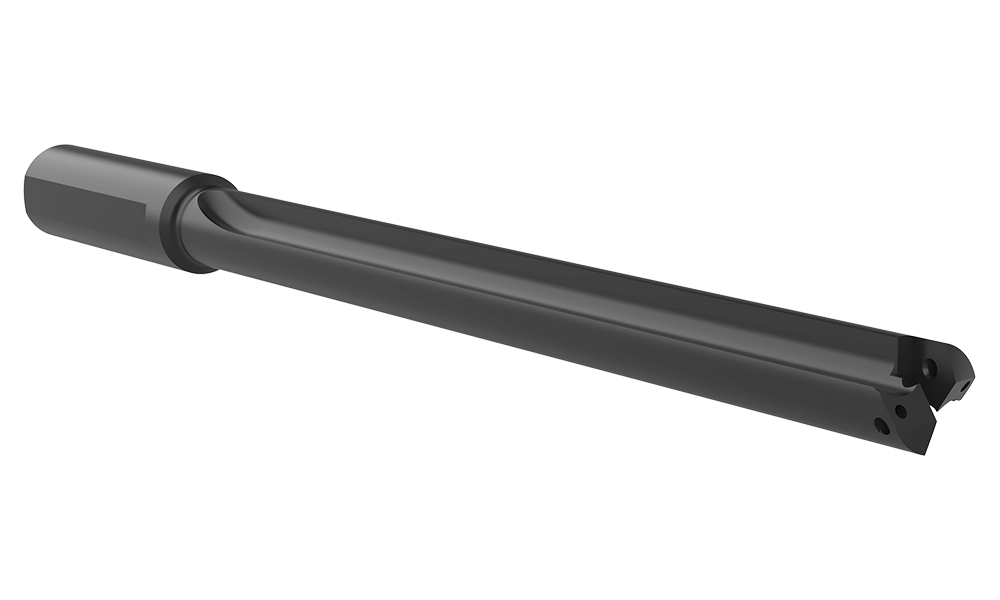

| Type of Product | Replaceable Drill Body |
| Product Application | General Purpose |
