26020H-004IS100
T-A® Structural Steel Replaceable Drill Body: 1.0000" - 1.3809", Long, Morse Taper (SS) Shank
T-A® SS Holder

Add to cart image Add to list image







See Additional Technical Information
Default Image

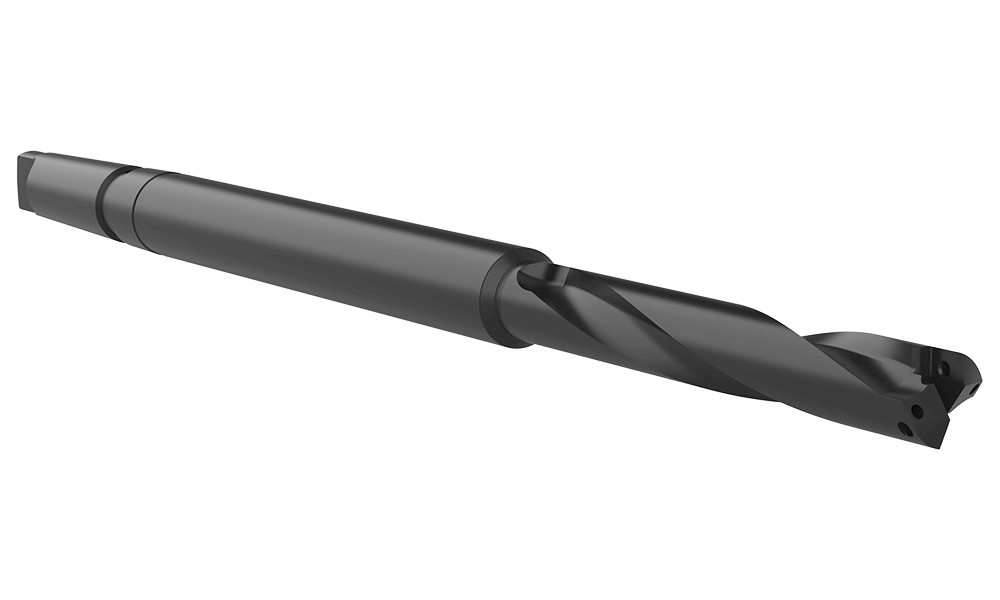

Angle

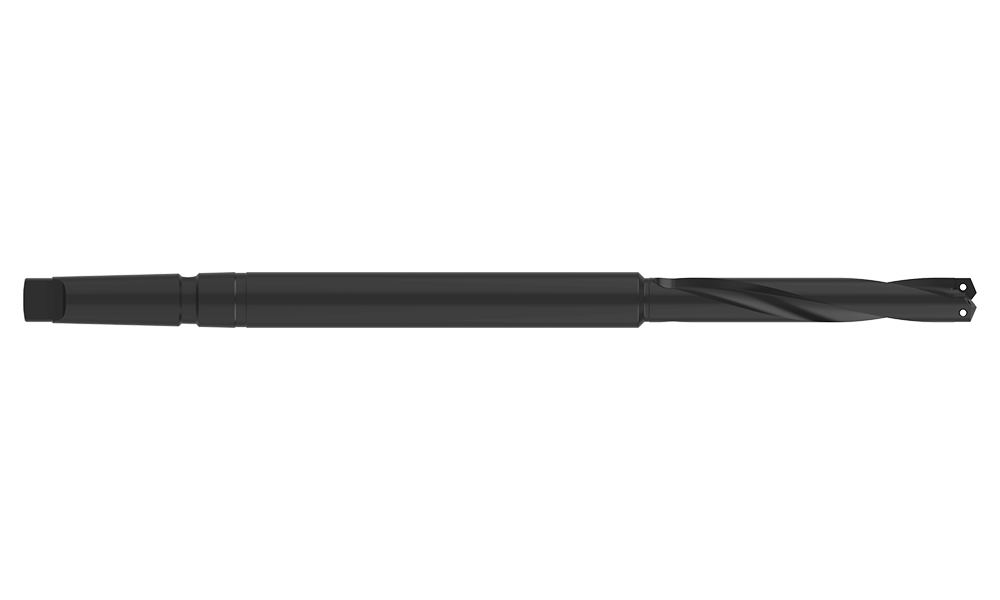

Front

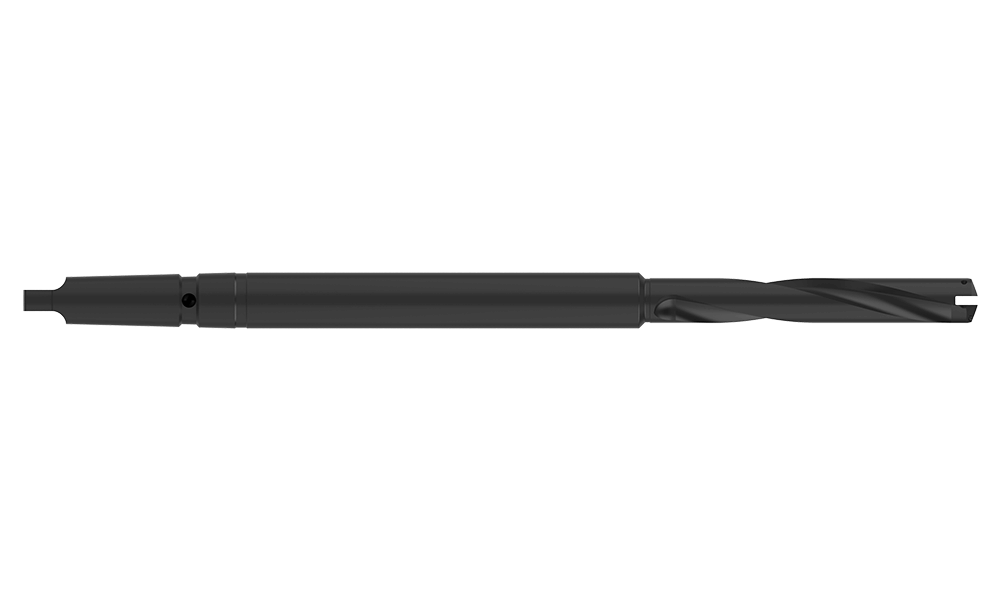

Side
Product Specifications
Series 2
Minimum Diameter (inch) 1.0000
Maximum Diameter (inch) 1.3809
Length Type Long
Flute Type Helical
Overall Length (inch) 20.946
Tool Reference Length (inch) 16.222
Body Length (inch) 16.071
Drill Depth (inch) 6.772
Shank Type Morse Taper (SS)
Shank Diameter (inch) #4 MT
Coolant Inlet Style Rear Through Tang Coolant
Coolant Inlet Style Side Through Shank Coolant
Deep Hole Guidelines (Yes/No) Yes
Type of Product Replaceable Drill Body
Product Application Structural Steel
Related Items
Accessories\Insert Screw\Insert Screw_ANGLE.png 7495-IP15-1 (Qty0)
Replacement T-A® Screw
2-2.5 KIT (1) TORX PLUS,CL 4H
Accessories\Torx Drivers\Torx Driver\TORX-DRIVER.png 8IP-15 (Qty0)
T-A® Screw Driver
DRIVER, TORX PLUS HAND IP-15
Ordering Information
Package Qty 1
Min. Order Qty 1
Weight in lbs (each) 5.19
Weight in kg (each) 2.36
Category Stocked
