| Series | Z |
| Minimum diameter inch | 0.4370 |
| Maximum diameter inch | 0.5109 |
| Length Type | Long |
| Flute Type | Helical |
| Overall length inch | 10.274 |
| Tool Reference Length inch | 8.334 |
| Body length inch | 8.244 |
| Drill depth inch | 7.586 |
| Shank type | Flanged |
| Shank diameter inch | 3/4 |
| Shank length inch | 2.030 |
| Pipe tap rear inch | 1/8 NPT |
| Deep Hole Guidelines | Yes |

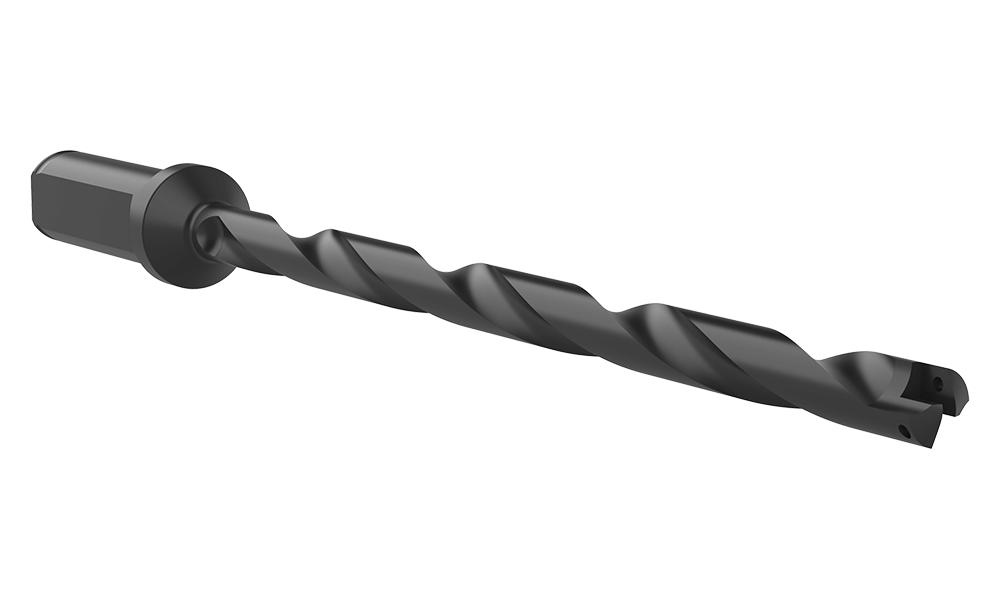

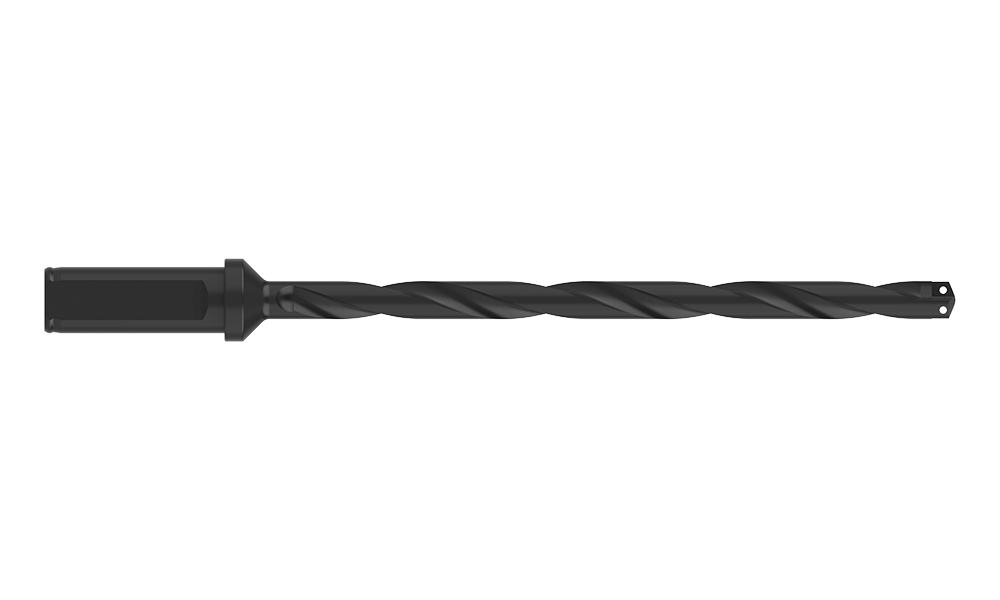

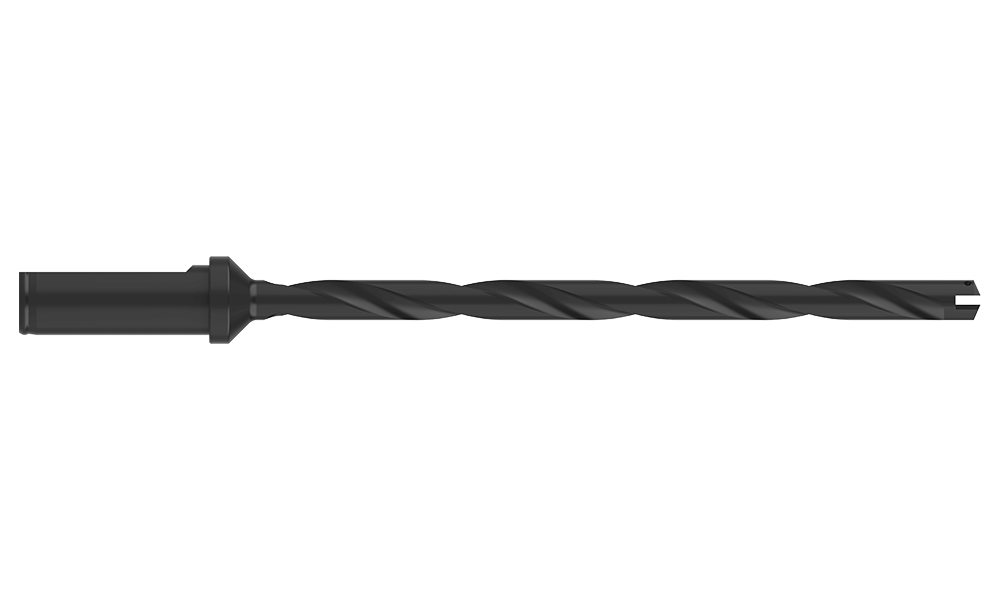

| Type of Product | Replaceable Drill Body |
| Product Application | General Purpose |
