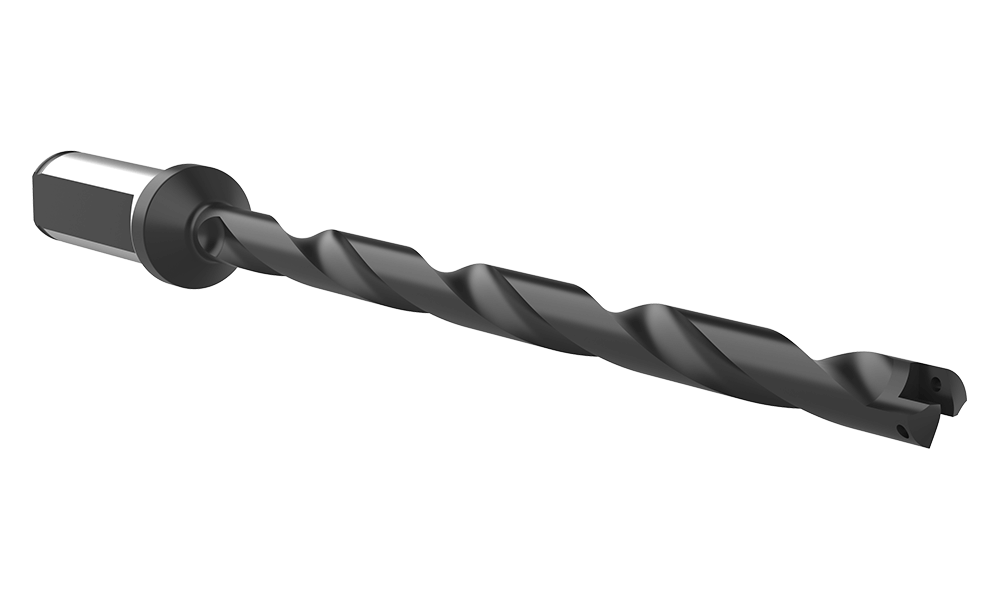

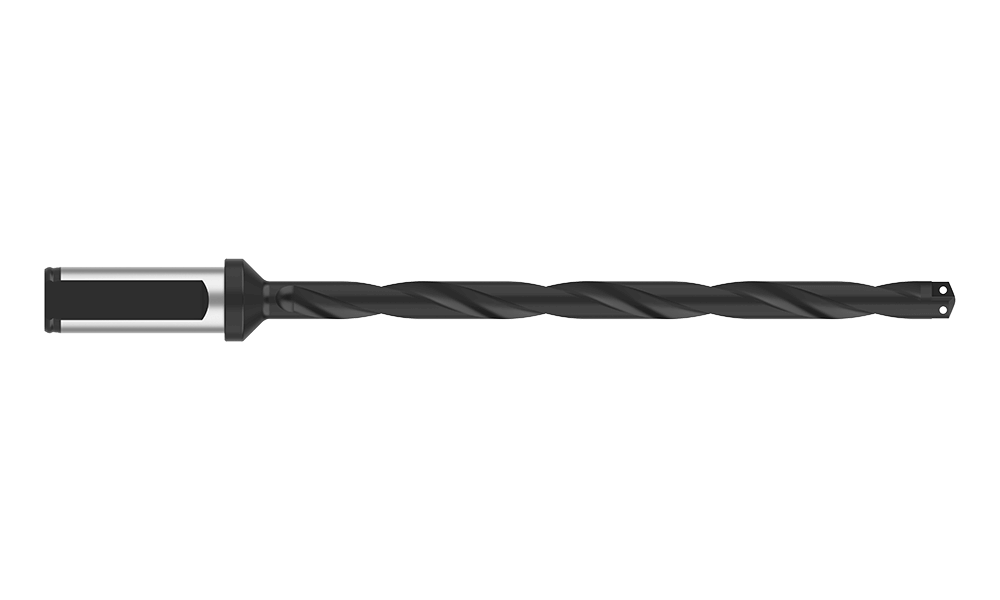

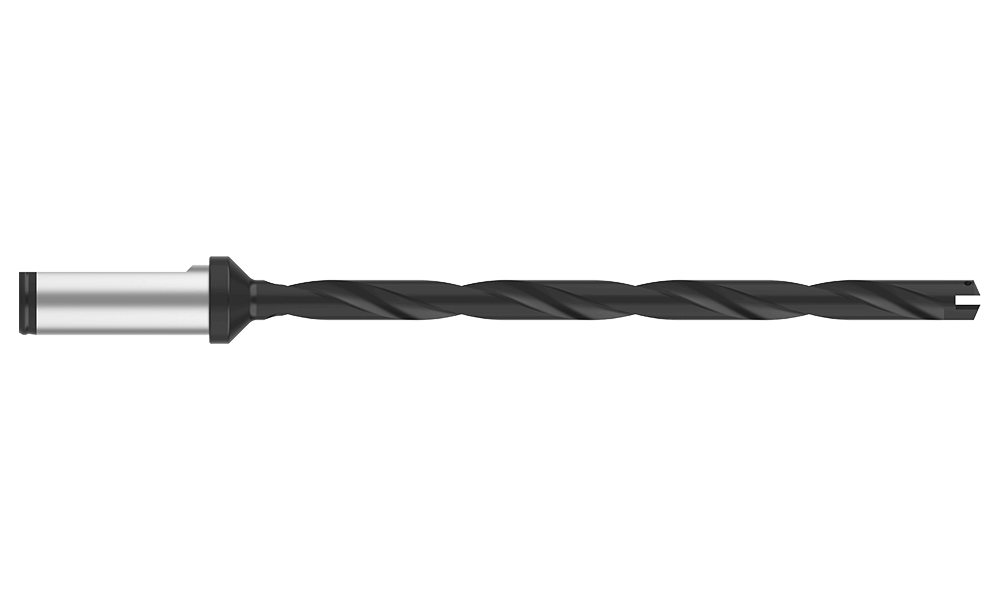

260Z0H-20FM
#Z TA LONG HLDR METR ST SHK
T-A® Holder






Product Specifications
SeriesZ
Minimum diameter mm11.10
Maximum diameter mm12.97
Length TypeLong
Flute TypeHelical
Overall length mm259.41
Tool Reference Length mm211.68
Body length mm209.40
Drill depth mm192.68
Shank typeFlanged
Shank diameter mm20
Shank length mm50.0
Pipe tap rear inch1/8
Pipe tap rear mm1/8 BSPT
Deep Hole GuidelinesYes
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)0.54
CategoryStocked
