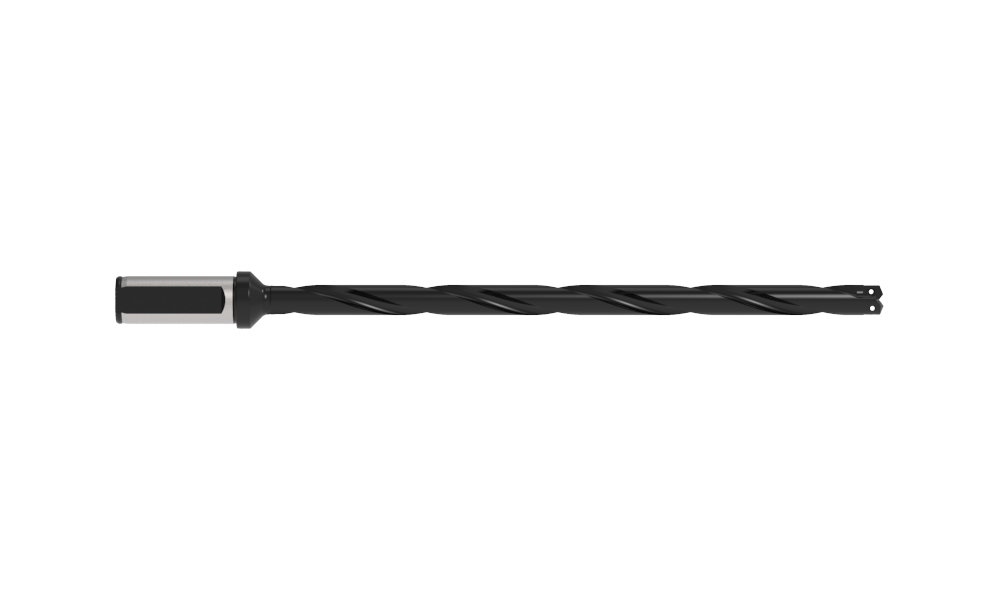

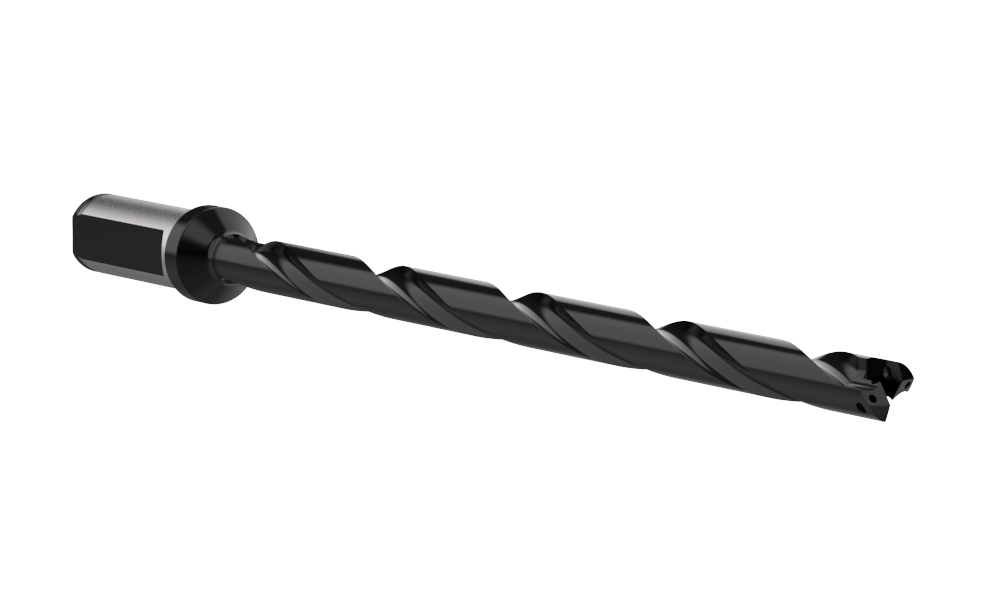

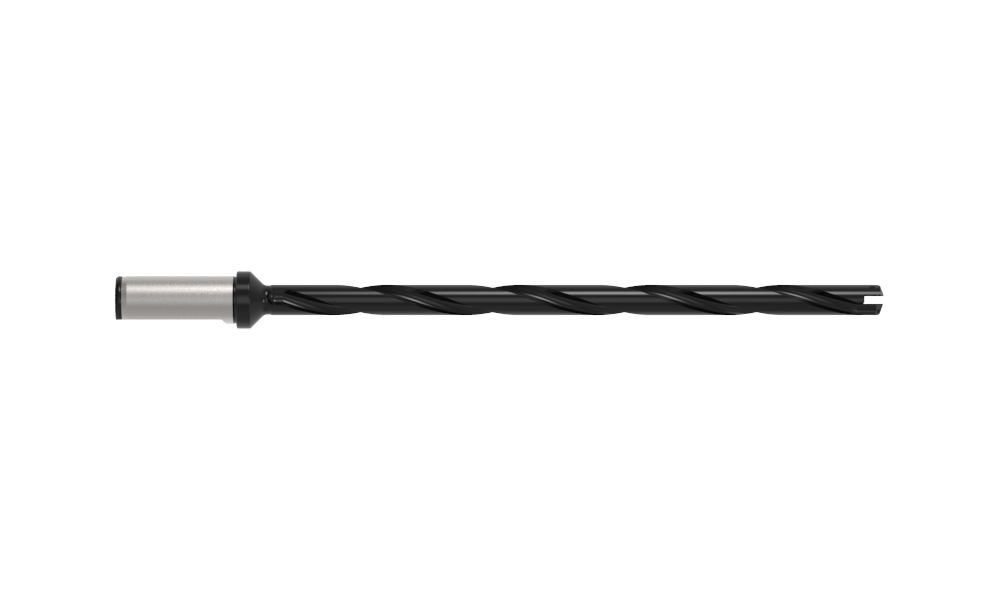

26500H-20FM
#0 TA LONG HLDR METR ST SHK
T-A® Holder





See Additional Technical Information

Product Specifications
Series0
Minimum diameter mm12.98
Maximum diameter mm17.67
Length TypeLong Plus
Flute TypeHelical
Overall length mm318.62
Tool Reference Length mm271.32
Body length mm268.61
Drill depth mm252.40
Shank typeFlanged
Shank diameter mm20
Shank length mm50.0
Pipe tap rear inch1/8
Pipe tap rear mm1/8 BSPT
Deep Hole GuidelinesYes
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)0.72
CategoryStocked
