| Series | 1 |
| Minimum diameter inch | 0.6900 |
| Maximum diameter inch | 0.9609 |
| Length Type | XL |
| Flute Type | Straight |
| Overall length inch | 22.250 |
| Tool Reference Length inch | 19.390 |
| Body length inch | 19.250 |
| Drill depth inch | 18.022 |
| Shank type | Lathe |
| Shank diameter inch | 1 |
| Shank length inch | 3.000 |
| Pipe tap rear inch | 1/8 NPT |
| Pipe tap side inch | 1/8 NPT |
| Deep Hole Guidelines | Yes |

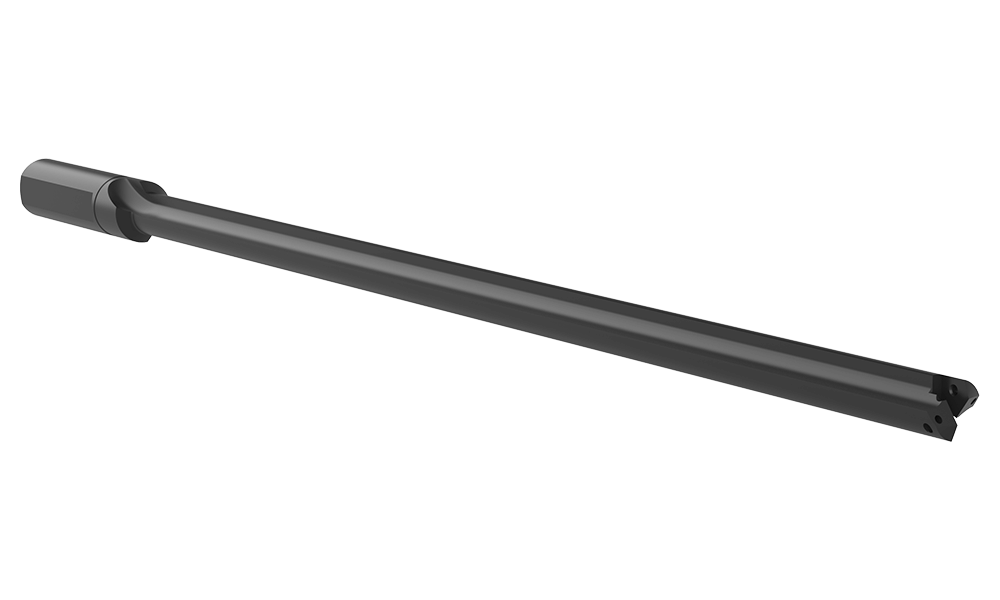

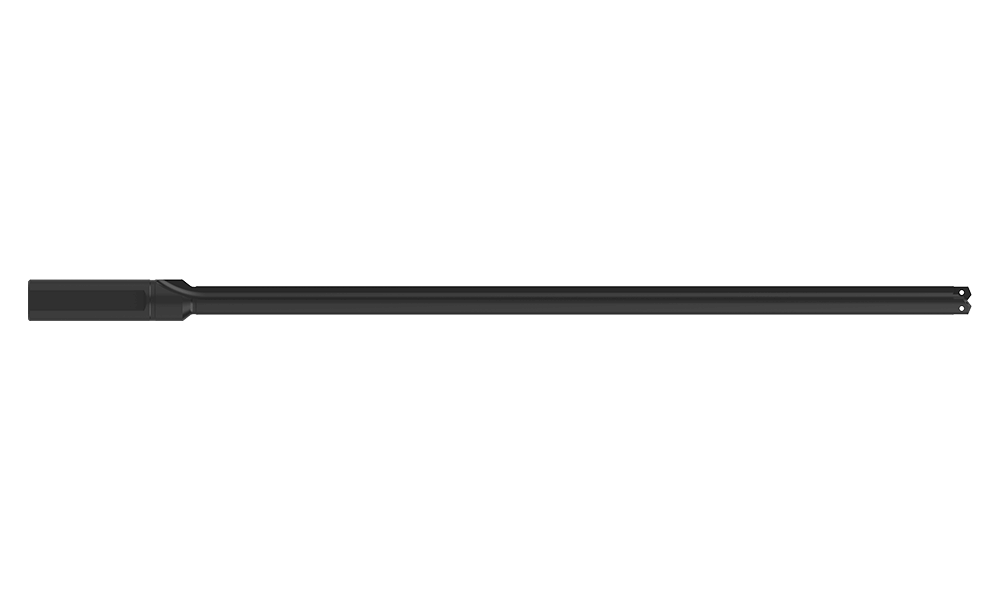

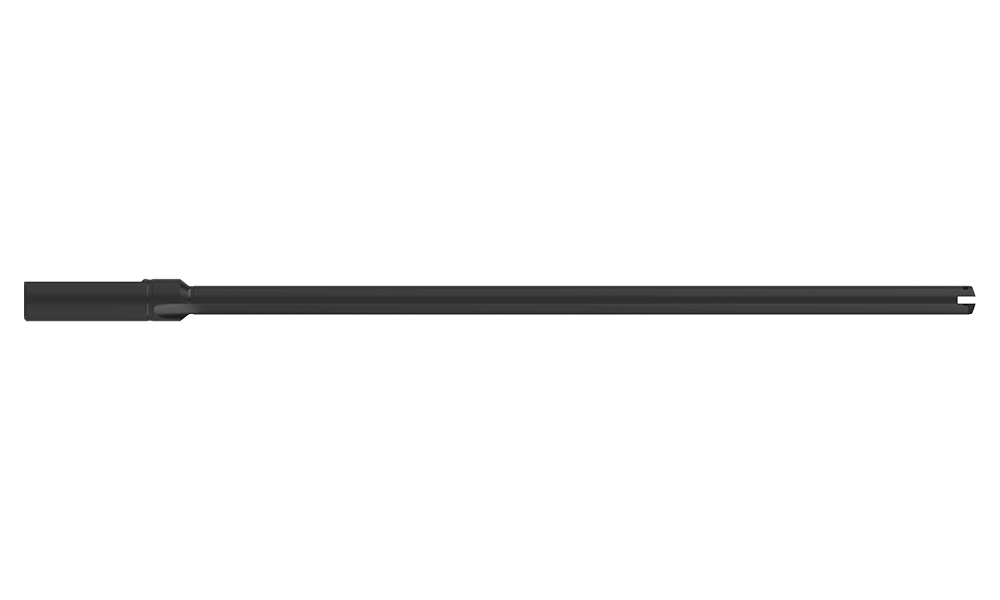

| Type of Product | Replaceable Drill Body |
| Product Application | General Purpose |
