27030S-004M

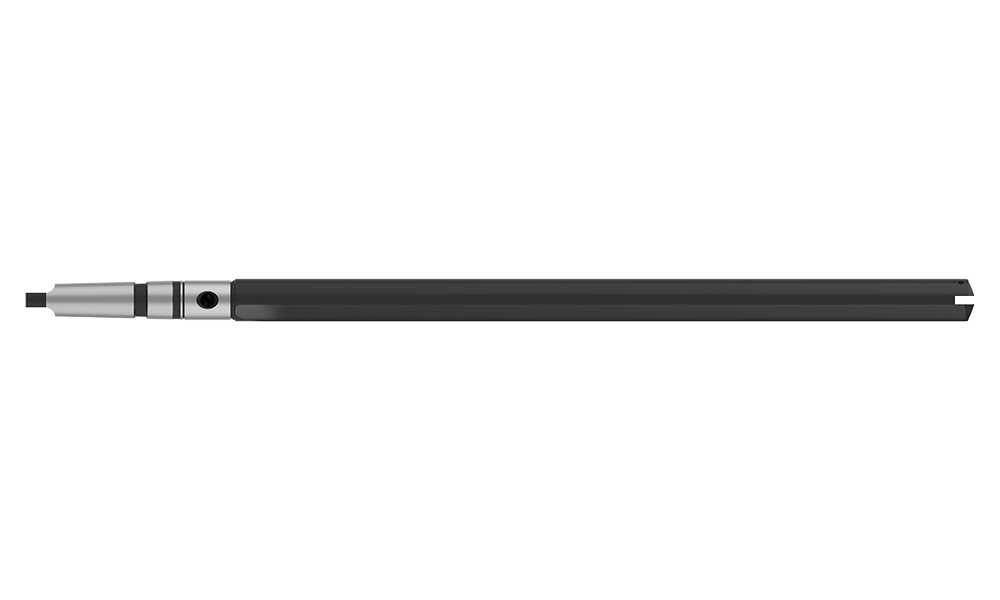

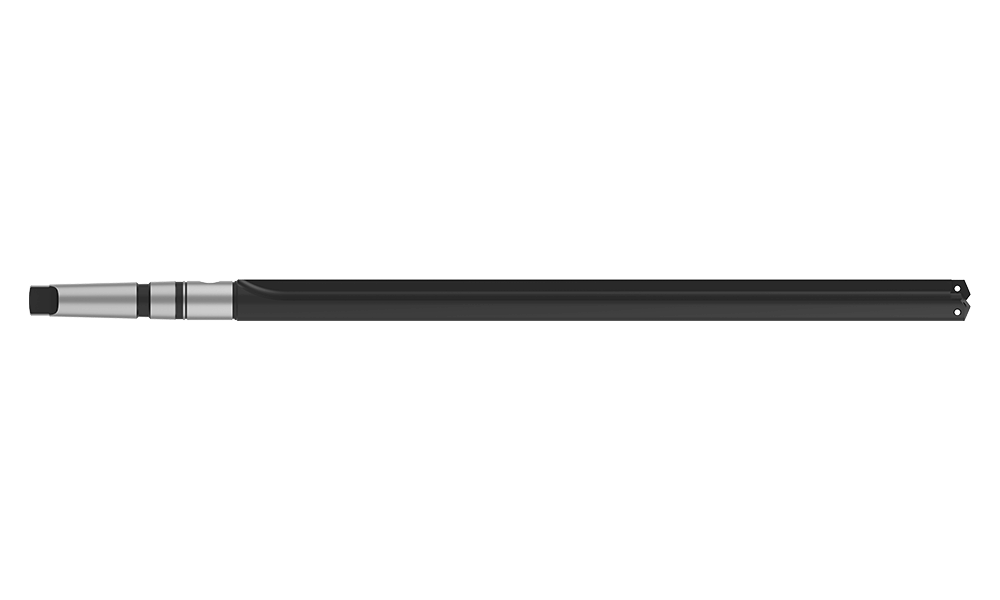

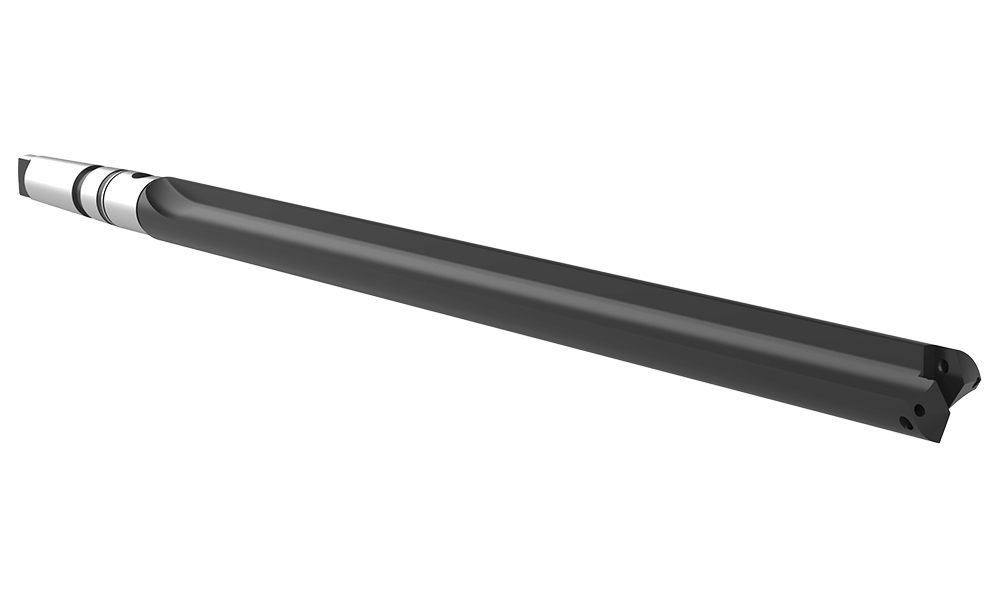

#3 METRIC TA EXT XL HLDR 4MT

T-A® Holder

See Additional Technical Information

Product Specifications

Series	3
Minimum diameter mm	34.37
Maximum diameter mm	47.82
Length Type	XL
Flute Type	Straight
Overall length mm	757.22
Tool Reference Length mm	644.50
Body length mm	590.55
Drill depth mm	548.13
Shank type	Morse Taper
Shank diameter mm	#4 MT ISO
Pipe tap side inch	1/4
Pipe tap side mm	1/4 BSPT
Deep Hole Guidelines	Yes
Type of Product	Replaceable Drill Body
Product Application	General Purpose

Ordering Information

Package Qty	1
Min. Order Qty	1
Weight in lbs (each)	8.27
Category	Stocked
