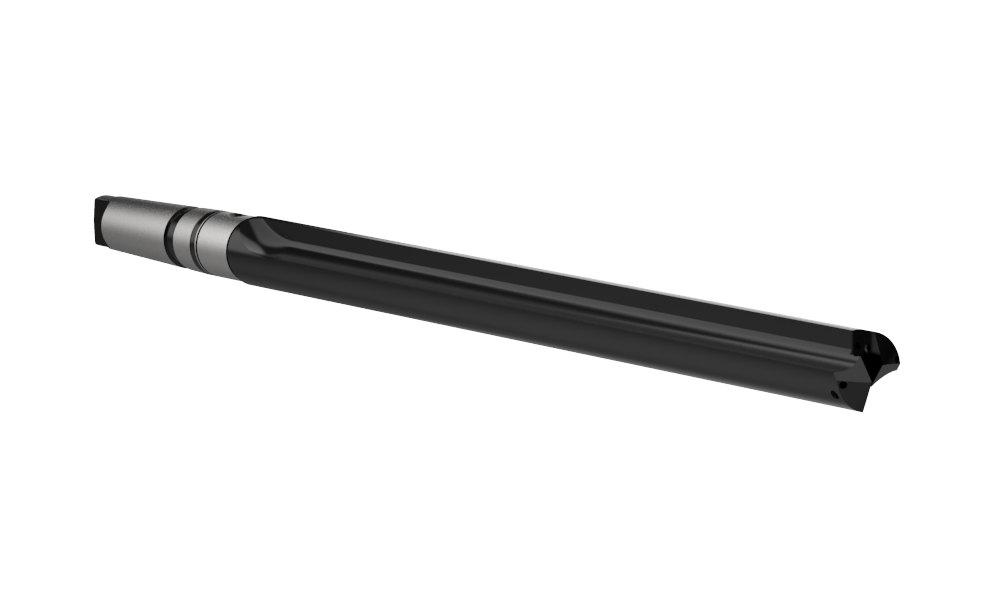

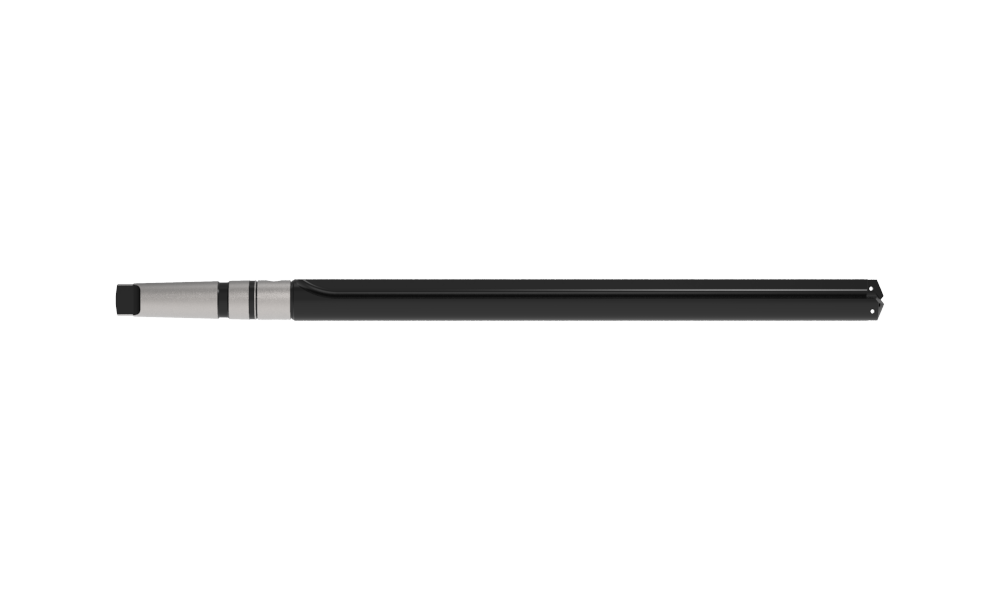

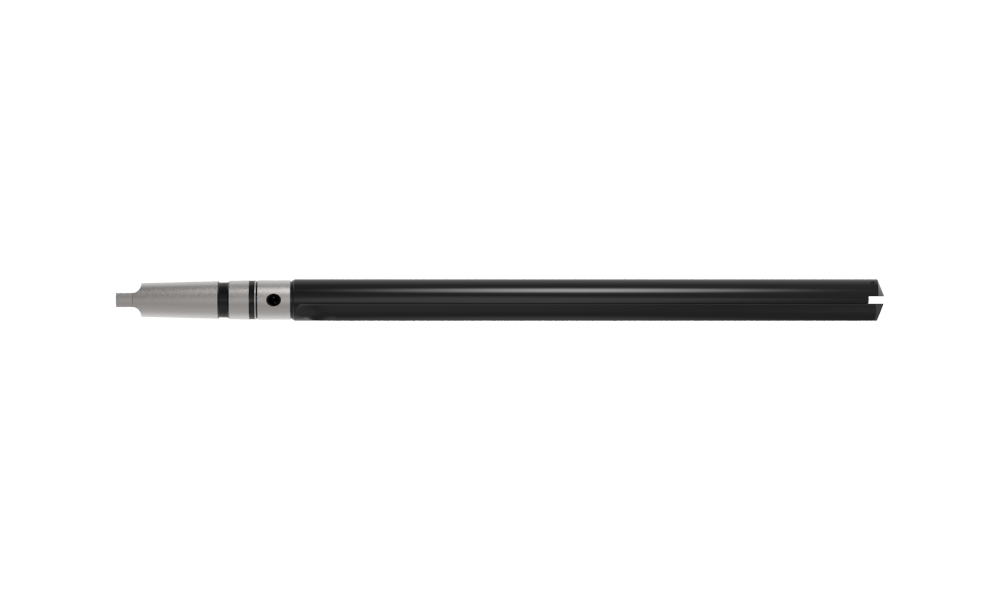

27040S-005M
#4 METRIC TA EXT XL HLDR 5MT
T-A® Holder






Product Specifications
Series4
Minimum diameter mm46.99
Maximum diameter mm65.30
Length TypeXL
Flute TypeStraight
Overall length mm858.82
Tool Reference Length mm714.35
Body length mm660.40
Drill depth mm622.10
Shank typeMorse Taper
Shank diameter mm#5 MT ISO
Pipe tap side inch1/4
Pipe tap side mm1/4 BSPT
Deep Hole GuidelinesYes
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)17.97
CategoryStocked
