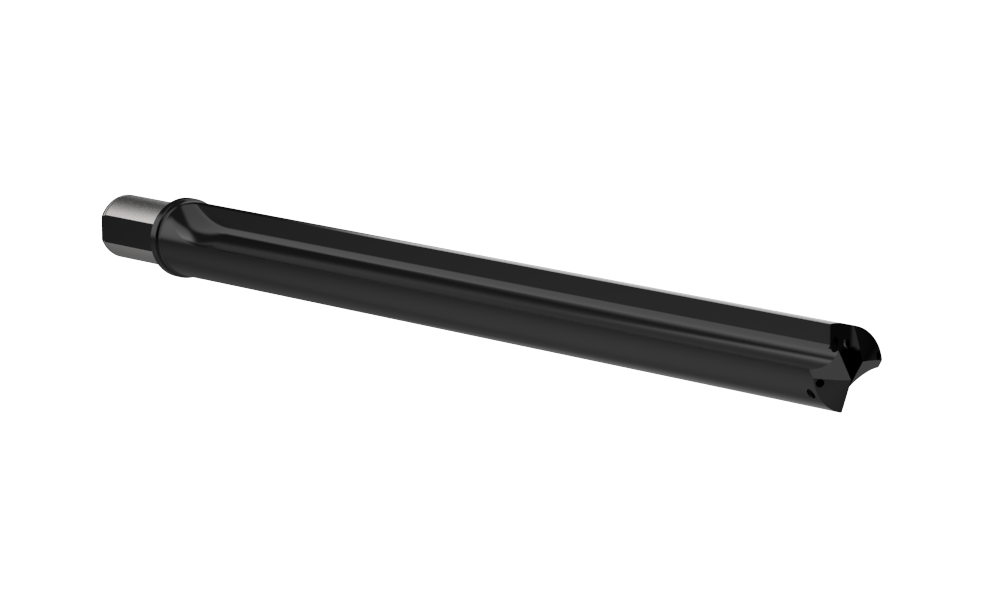

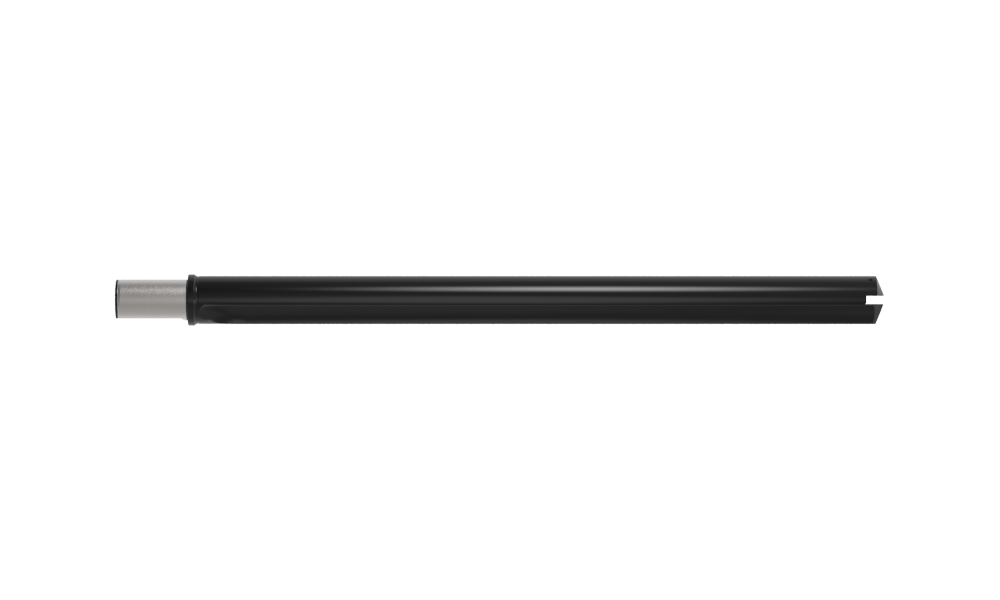

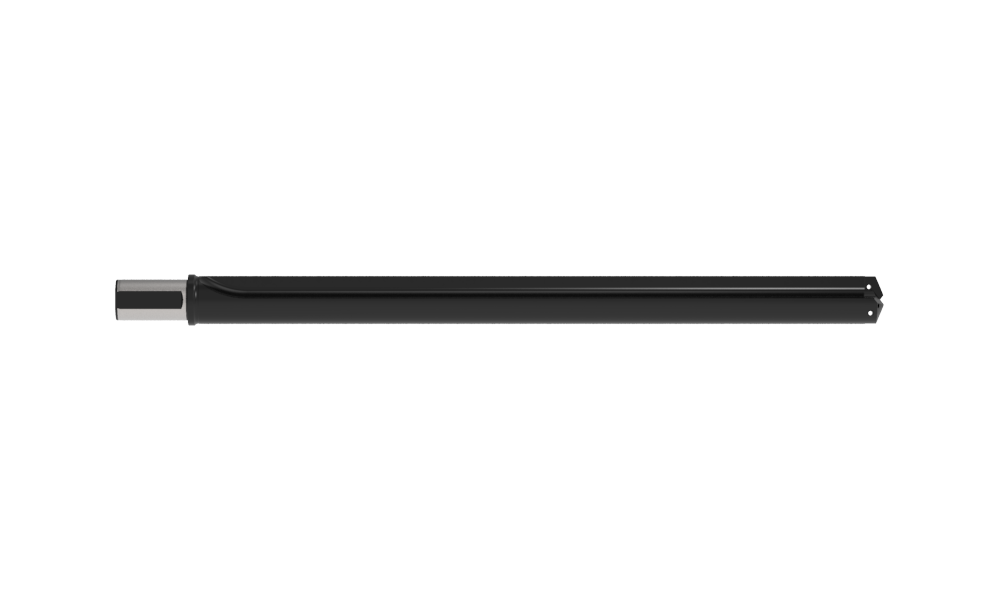

27040S-40FM
#4 TA EXT XL HLDR METR ST SHK
T-A® Holder






Product Specifications
Series4
Minimum diameter mm46.99
Maximum diameter mm65.30
Length TypeXL
Flute TypeStraight
Overall length mm744.70
Tool Reference Length mm679.45
Body length mm674.70
Drill depth mm617.17
Shank typeFlanged
Shank diameter mm40
Shank length mm70.0
Pipe tap rear inch1/4
Pipe tap rear mm1/4 BSPT
Deep Hole GuidelinesYes
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)15.66
CategoryStocked
