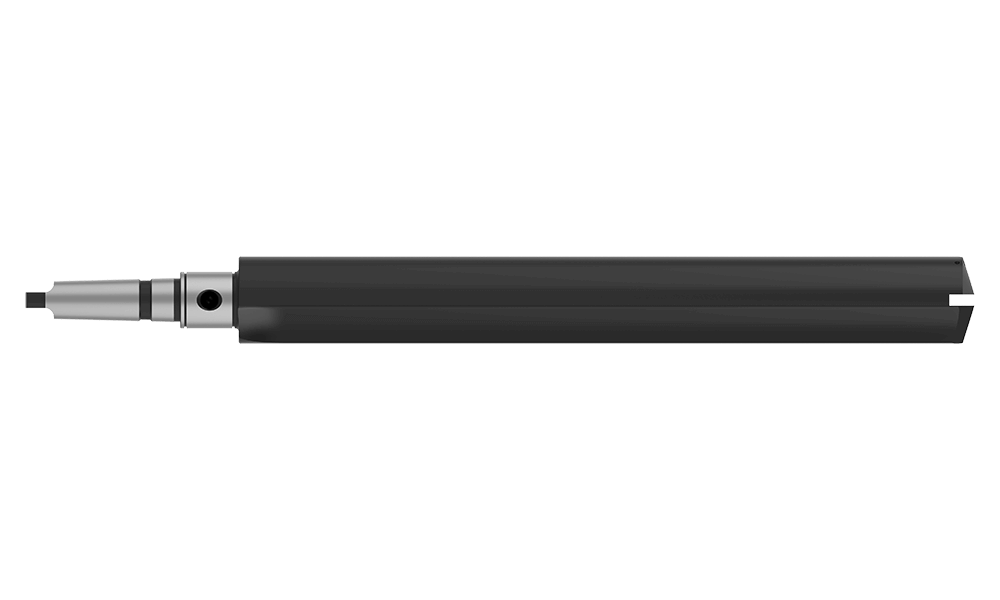

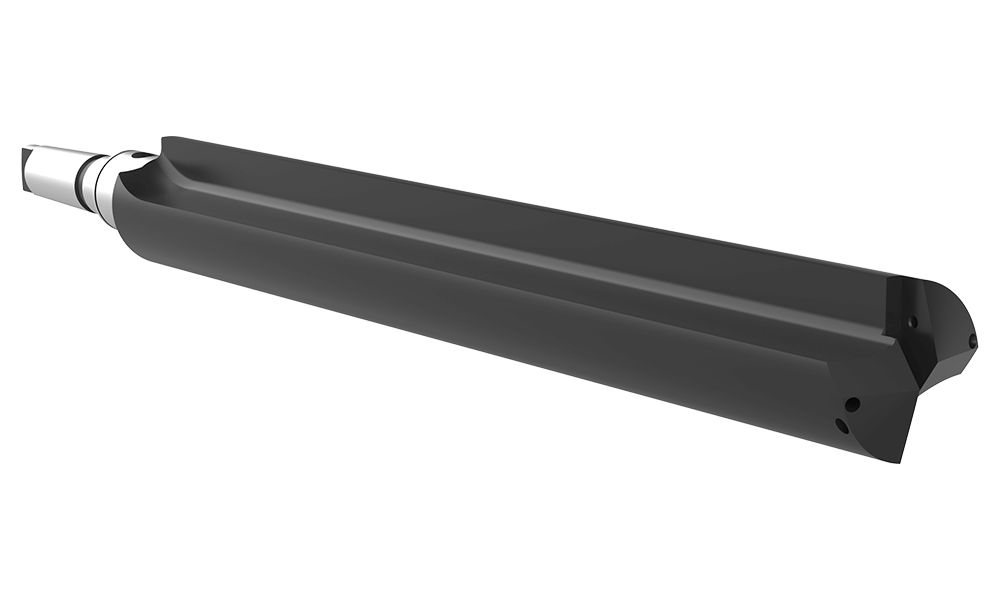

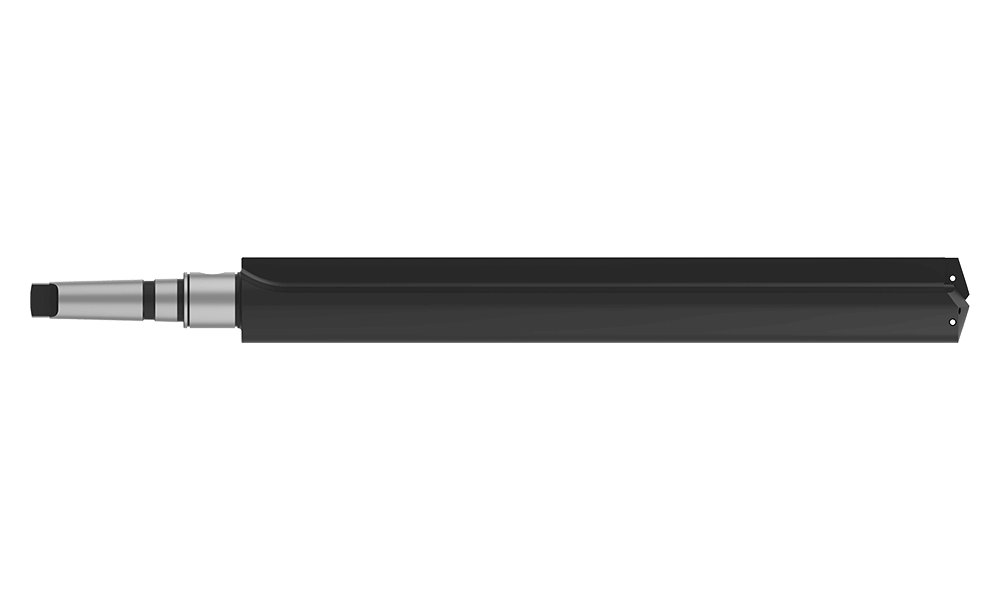

27070S-005M

#7 METRIC TA EXT XL HLDR 5MT

T-A® Holder

See Additional Technical Information

Product Specifications

Series	7
Minimum diameter mm	89.10
Maximum diameter mm	114.48
Length Type	XL
Flute Type	Straight
Overall length mm	954.07
Tool Reference Length mm	811.20
Body length mm	739.78
Drill depth mm	691.52
Shank type	Morse Taper
Shank diameter mm	#5 MT ISO
Pipe tap side inch	1/2
Pipe tap side mm	1/2 BSPT
Deep Hole Guidelines	Yes
Type of Product	Replaceable Drill Body
Product Application	General Purpose

Ordering Information

Package Qty	1
Min. Order Qty	1
Weight in lbs (each)	58.17
Category	Stocked
