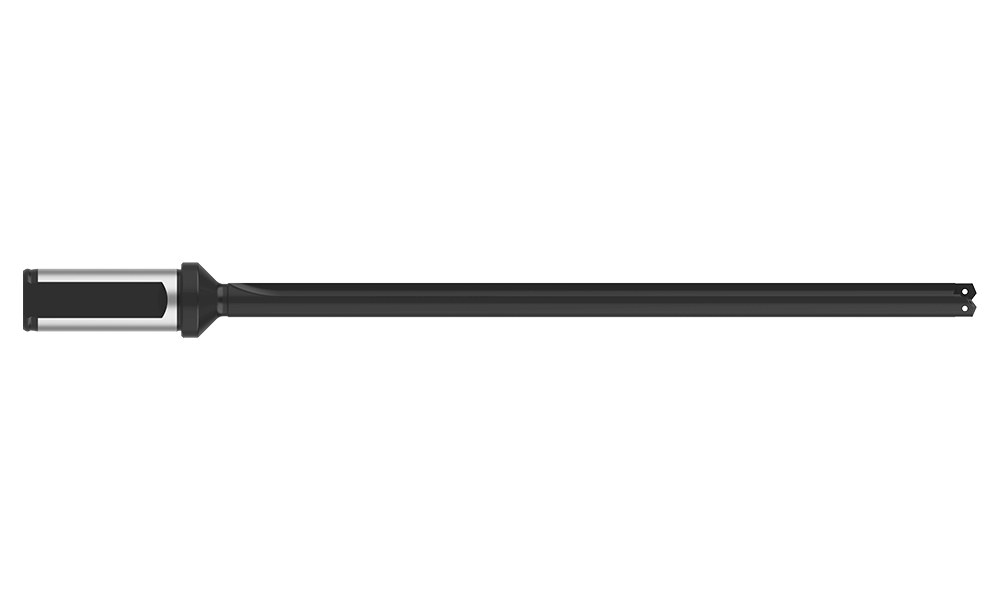

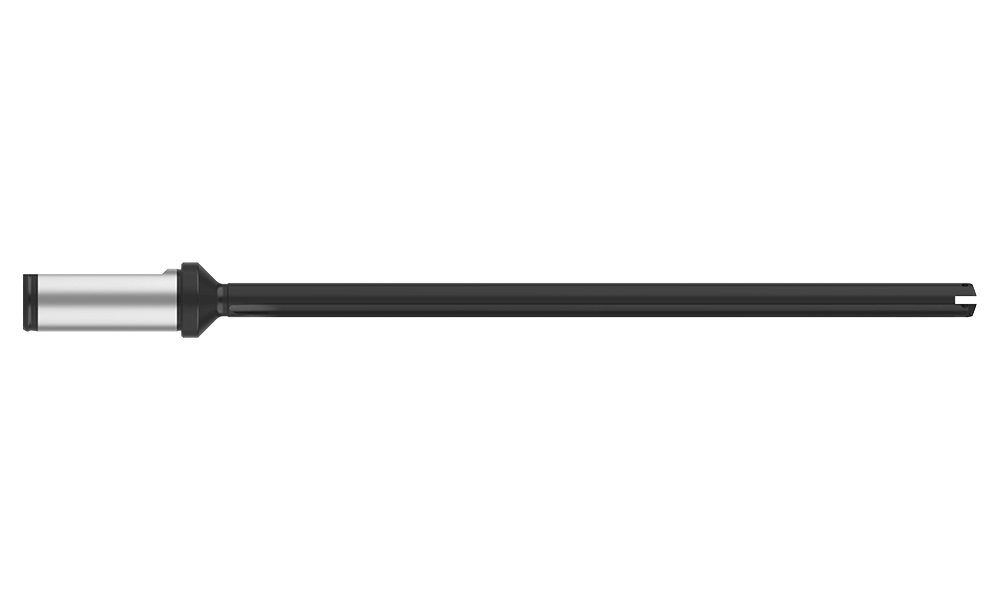

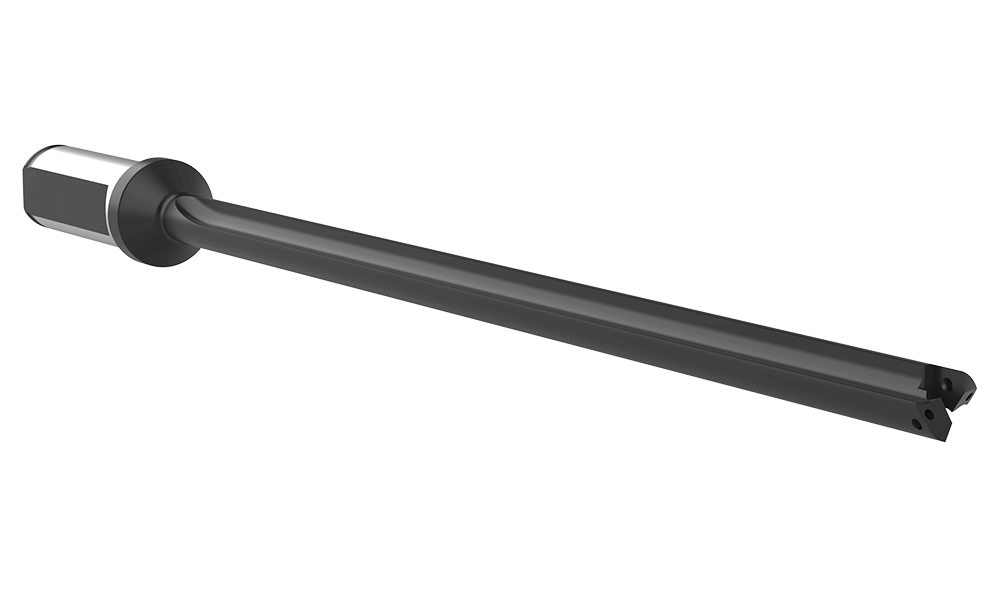

270Z0S-20FM
#Z TA EXT XL HLDR METR ST SHK
T-A® Holder





See Additional Technical Information

Product Specifications
SeriesZ
Minimum diameter mm11.10
Maximum diameter mm12.97
Length TypeXL
Flute TypeStraight
Overall length mm301.63
Tool Reference Length mm253.90
Body length mm251.61
Drill depth mm219.63
Shank typeFlanged
Shank diameter mm20
Shank length mm50.0
Pipe tap rear inch1/8
Pipe tap rear mm1/8 BSPT
Deep Hole GuidelinesYes
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)0.59
CategoryStocked
