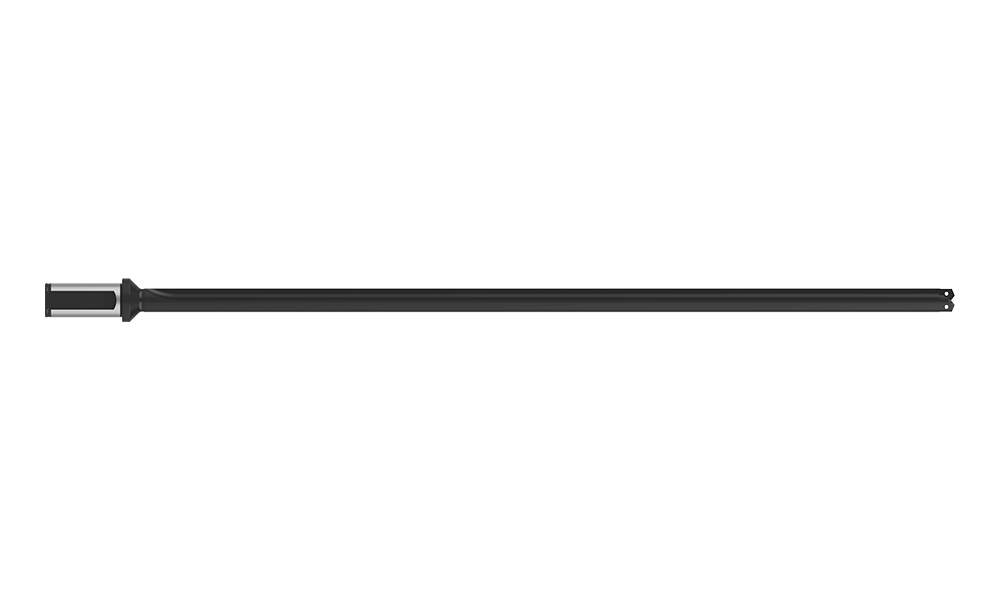

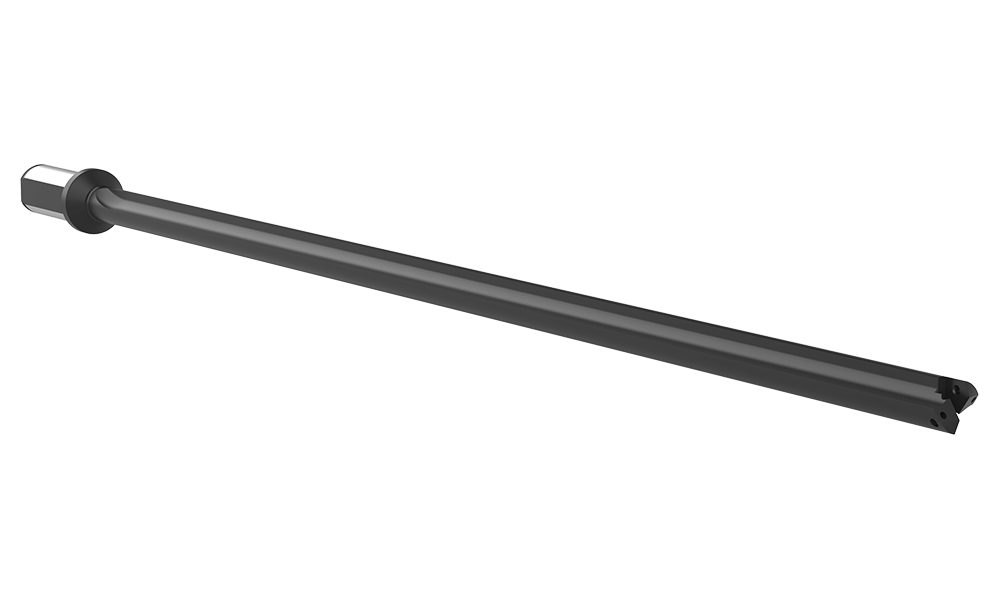

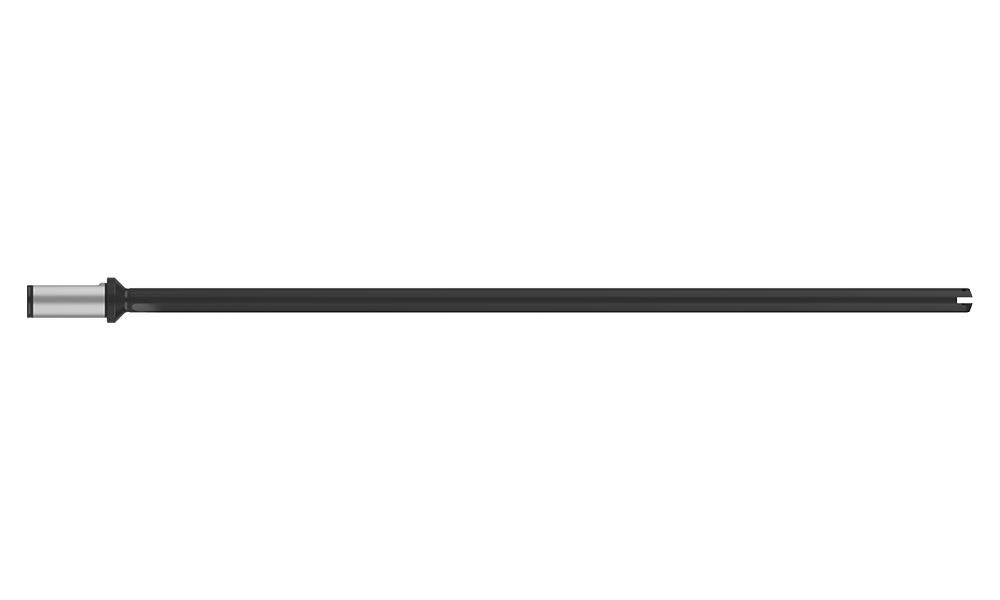

29010S-25FM
#1 TA EXT 3XL HLDR METR ST SHK
T-A® Holder





See Additional Technical Information

Product Specifications
Series1
Minimum diameter mm17.53
Maximum diameter mm24.40
Length Type3XL
Flute TypeStraight
Overall length mm658.47
Tool Reference Length mm606.02
Body length mm602.46
Drill depth mm562.13
Shank typeFlanged
Shank diameter mm25
Shank length mm56.0
Pipe tap rear inch1/8
Pipe tap rear mm1/8 BSPT
Deep Hole GuidelinesYes
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)2.25
CategoryStocked
