29030S-004M
#3 METRIC TA EXT 3XL HLDR 4MT

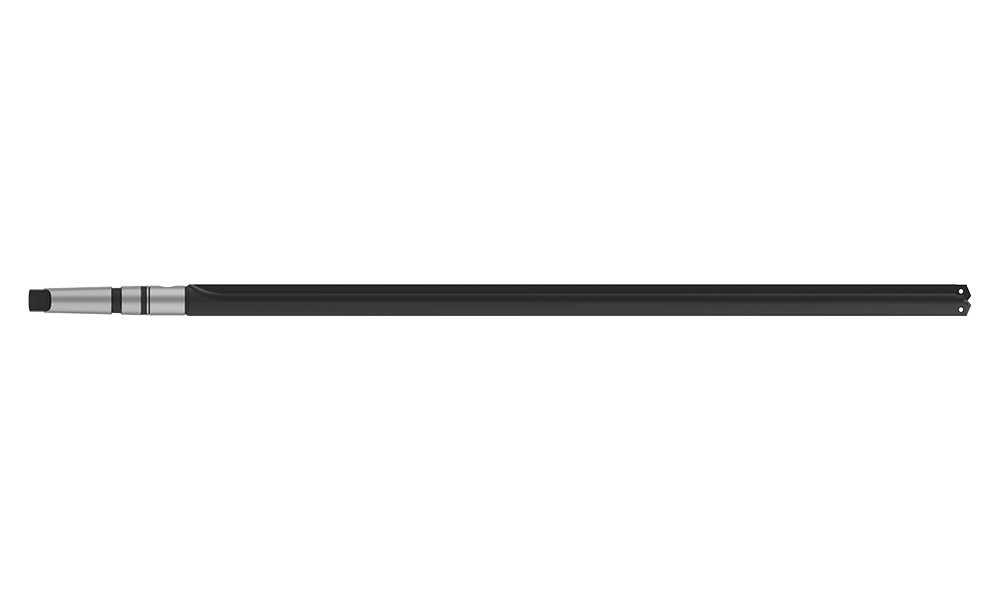

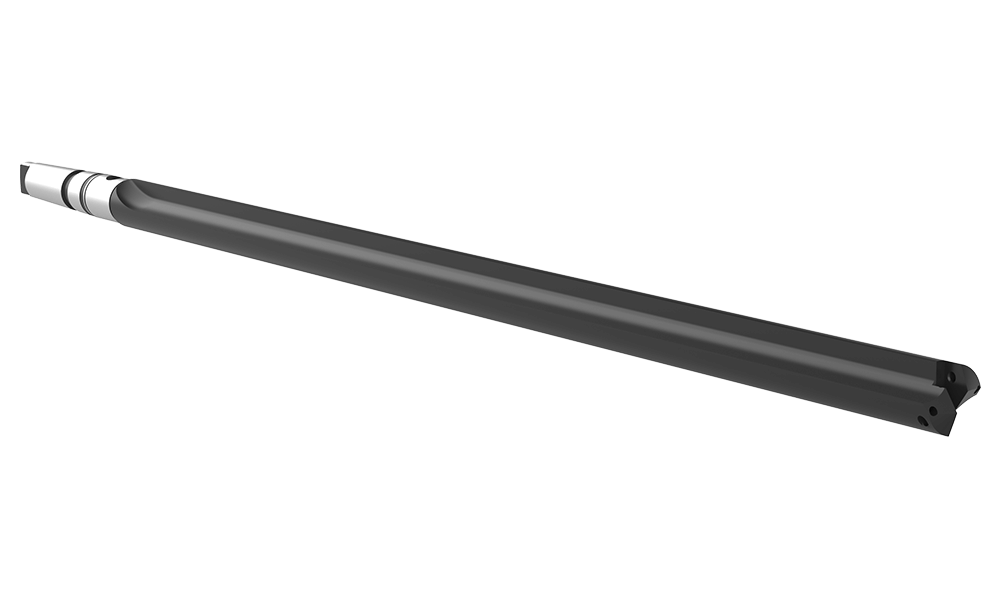

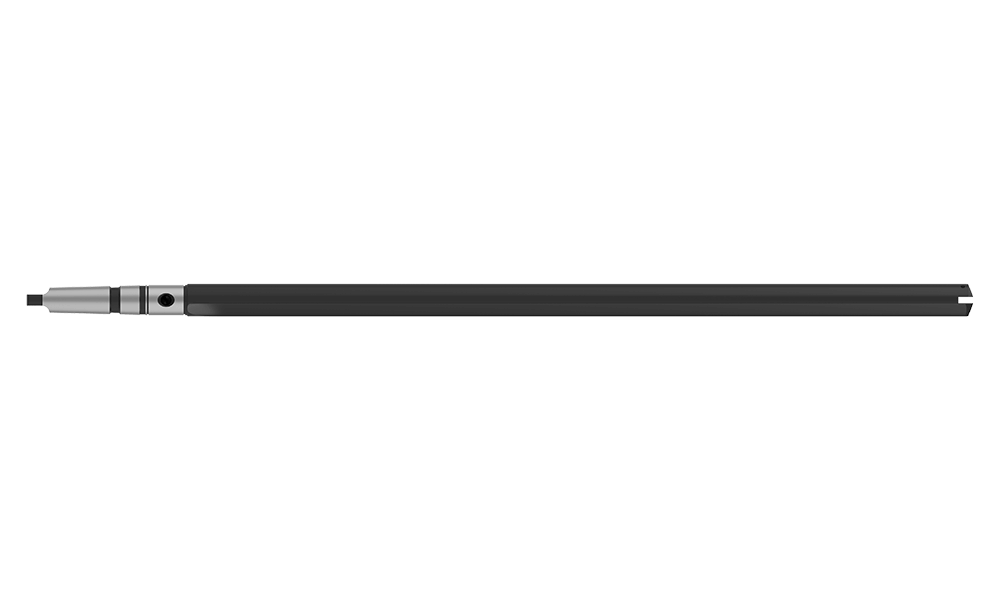

T-A® Holder






Product Specifications
Series3
Minimum diameter mm34.37
Maximum diameter mm47.82
Length Type3XL
Flute TypeStraight
Overall length mm985.82
Tool Reference Length mm873.10
Body length mm819.15
Drill depth mm776.73
Shank typeMorse Taper
Shank diameter mm#4 MT ISO
Pipe tap side inch1/4
Pipe tap side mm1/4 BSPT
Deep Hole GuidelinesYes
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)10.77
CategoryStocked
