| Series | 3 |
| Minimum diameter inch | 1.3530 |
| Maximum diameter inch | 1.8829 |
| Length Type | 3XL |
| Flute Type | Straight |
| Overall length inch | 36.250 |
| Tool Reference Length inch | 32.437 |
| Body length inch | 32.250 |
| Drill depth inch | 30.088 |
| Shank type | Lathe |
| Shank diameter inch | 1-1/2 |
| Shank length inch | 4.000 |
| Pipe tap rear inch | 1/4 NPT |
| Pipe tap side inch | 1/4 NPT |
| Deep Hole Guidelines | Yes |

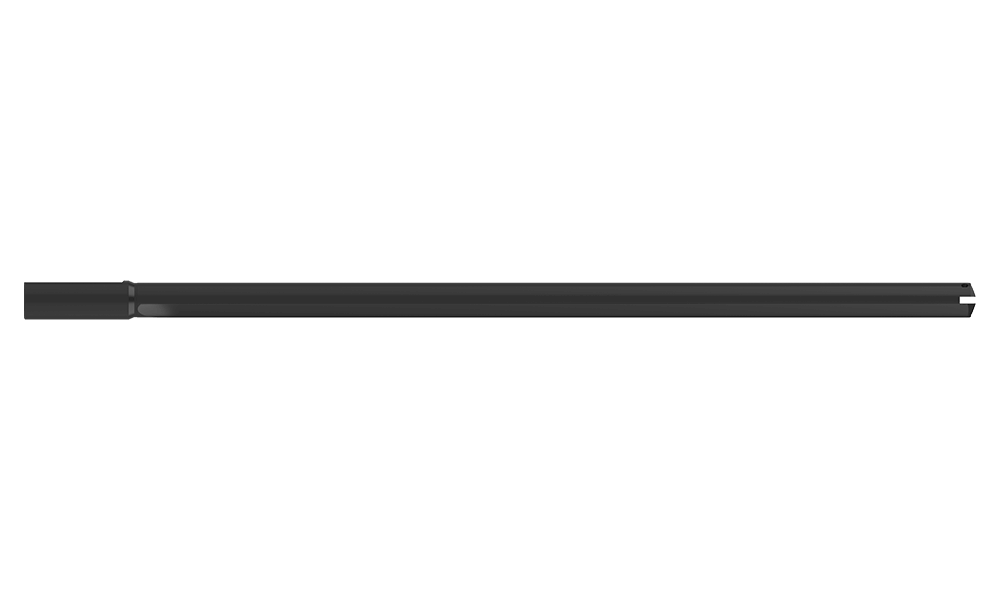

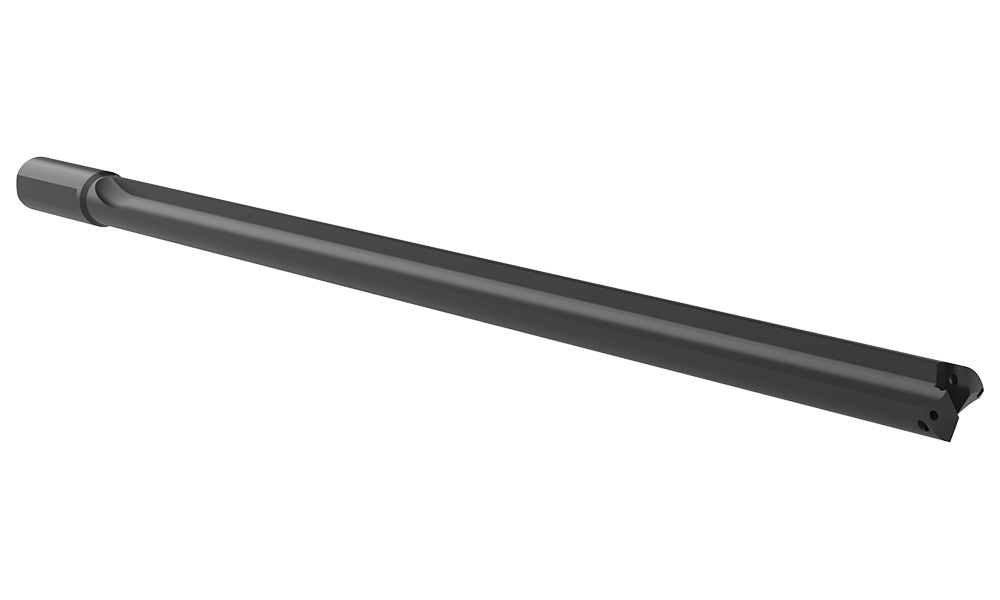

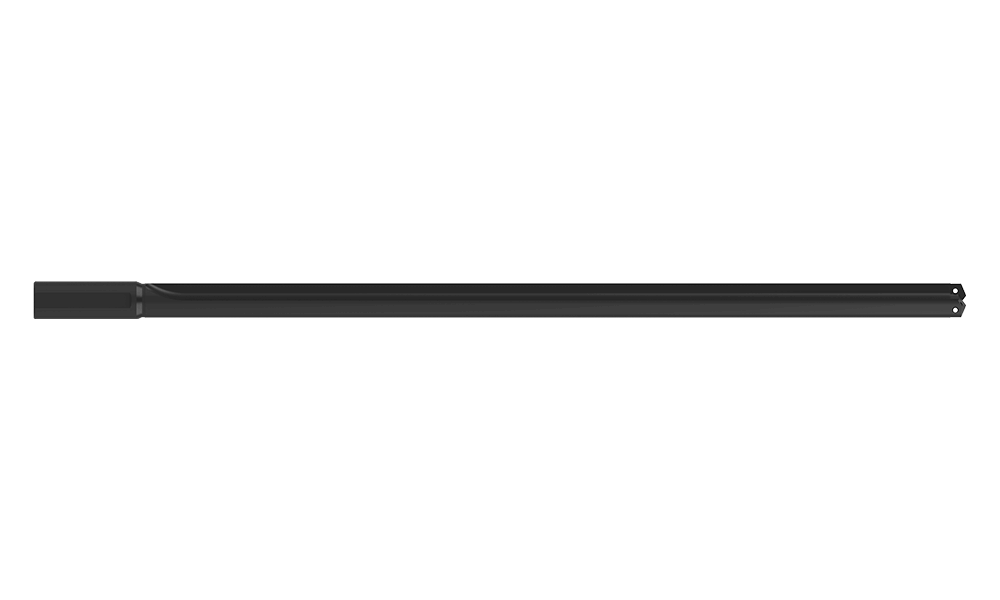

| Type of Product | Replaceable Drill Body |
| Product Application | General Purpose |
