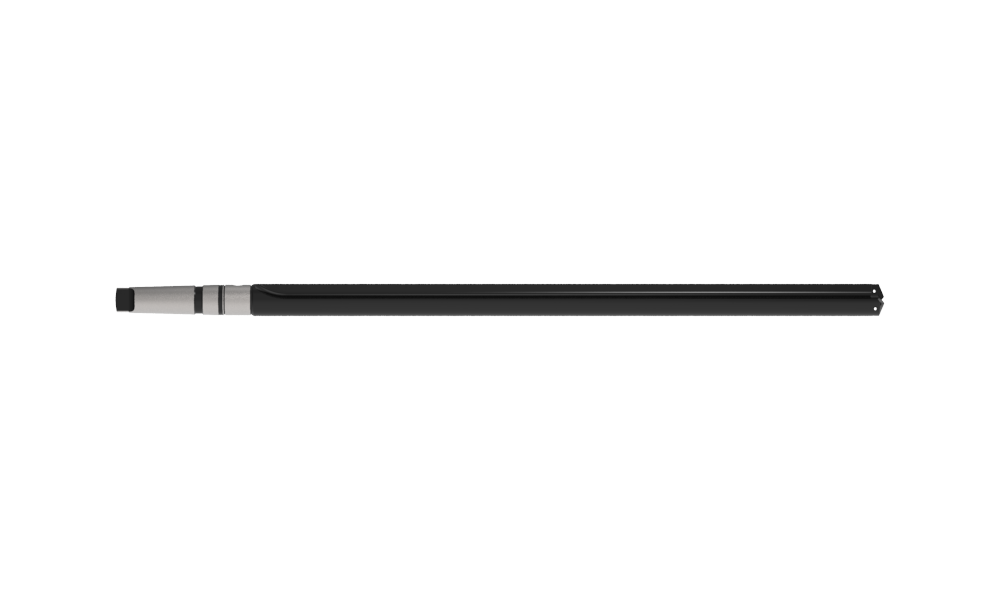

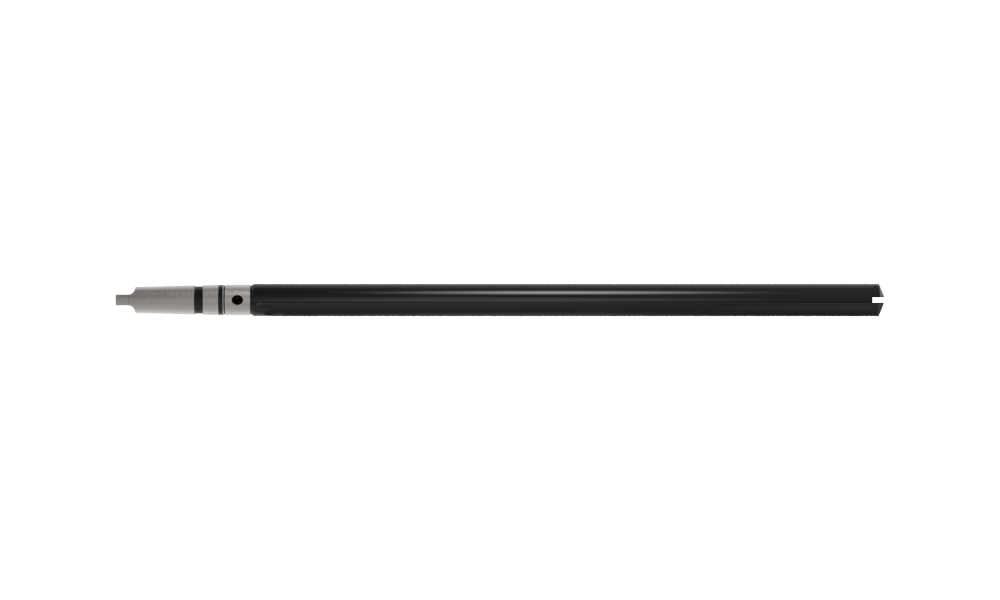

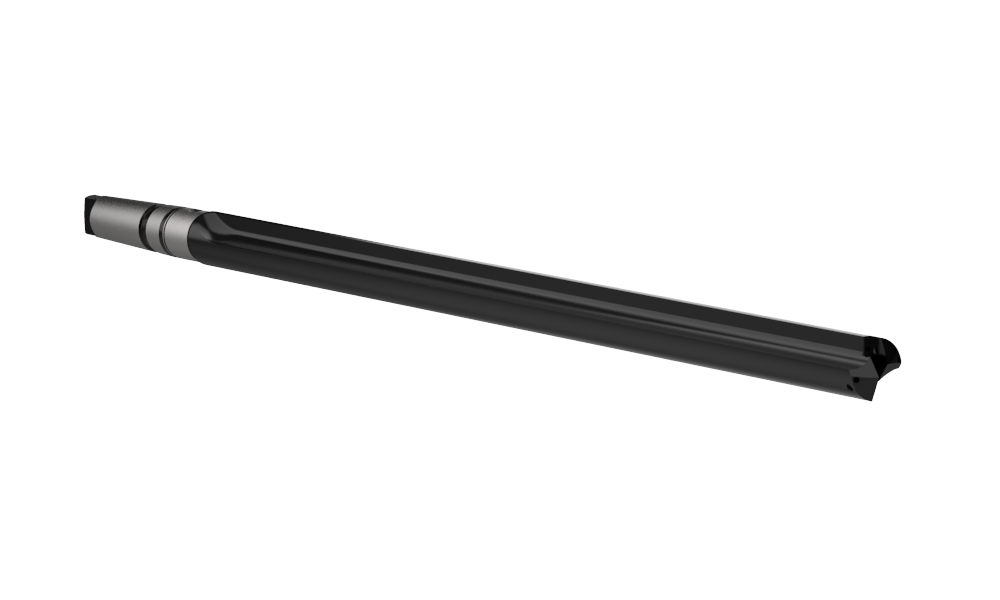

29040S-005M
#4 METRIC TA EXT 3XL HLDR 5MT
T-A® Holder






Product Specifications
Series4
Minimum diameter mm46.99
Maximum diameter mm65.30
Length Type3XL
Flute TypeStraight
Overall length mm1112.82
Tool Reference Length mm968.35
Body length mm914.40
Drill depth mm876.10
Shank typeMorse Taper
Shank diameter mm#5 MT ISO
Pipe tap side inch1/4
Pipe tap side mm1/4 BSPT
Deep Hole GuidelinesYes
Type of ProductReplaceable Drill Body
Product ApplicationGeneral Purpose
Ordering Information
Package Qty1
Min. Order Qty1
Weight in lbs (each)23.28
CategoryStocked
